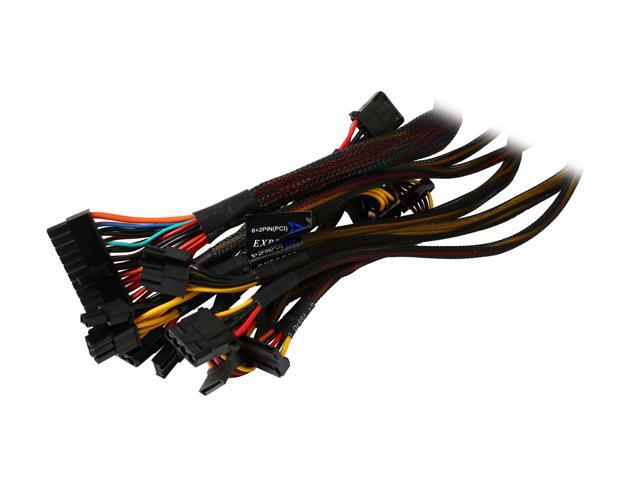

Does this power supply come with braided cables as shown in the pictures or flat plastic ones some have mention?

Hi, The unit I received came with well wrapped brained cables. Neatly terminated at the connector ends. Lengths of the cables are adequate to make routing of them in the case to be neat and clean. I hope this info is beneficial for you.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

100%

Alt view image 2 of 7 - Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

Alt view image 3 of 7 - Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

Alt view image 4 of 7 - Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

Alt view image 5 of 7 - Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

Alt view image 6 of 7 - Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

Alt view image 7 of 7 - Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

360^°

Shop All Rosewill Products

Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

(12) Write a Review

550 Watt Power Supply
ATX 12V v2.31 & EPS 12V v2.92
80 PLUS Platinum Certified PSU
Full Modular Design
LED Indicator
Continuous 550W @ 40 Degree C
SLI & CrossFire-Ready / Intel 4th Gen CPU Certified

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (12)

Any questions? Our AI beta will help you find out quickly.

Try me now

FEATURES

80 Plus Platinum Certified to deliver over 92% efficiency

LED lights will indicate a malfunction on +3.3V, +5V, +12V and other rails

Fully modular design provides cable management

ATX 12V V2.3-ready, supports EPS 12V 2.92 and backward compatible with ATX 12V 2.01

Active Power Factor Correction (PFC) with PF value of 0.99

Crossfire and SLI support

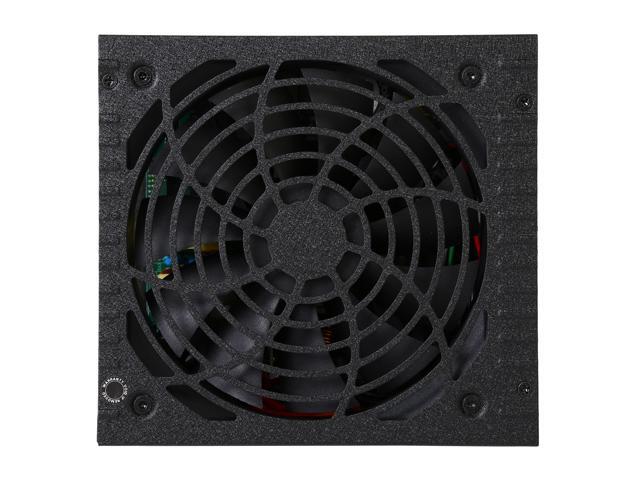

Silent 135mm fan with auto-speed control

100% High-quality Japanese capacitors

Over Current/Voltage/Temperature/Power Protection, Short Circuit Protection, and Under Voltage Protection

UL, FCC, CE, Nemko Certified

Extra-long cables support full size gaming chassis

5-Year Warranty

SPECIFICATIONS

Model: Quark 550

AC INPUT	100 ~ 240V \| 8 - 4A \| 60 - 50Hz
DC OUTPUT
	+3.3V	+5V	+12V	-12V	+5VSB
	20A	20A	45A	0.3A	2.5A
	100W		540W	3.6W	12.5W
TOTAL POWER	550W

CABLES

Motherboard
Cable
20+4-Pin
Connector x 1

+12V EPS
Cable
4+4-Pin
Connector x 1

PCIe Cables
6+2-Pin
Connector x 2

SATA Cables
15-Pin
Connector x 8

Peripheral
Cables
Molex 4-Pin
Connector x 4

FDD Cable
4-Pin
Connector x 1

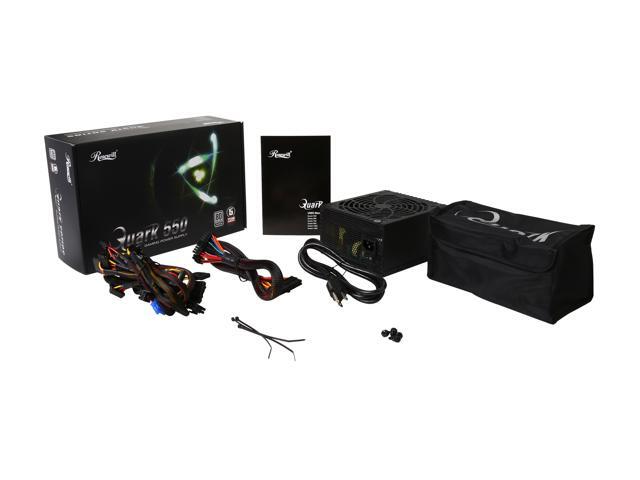

PACKAGE CONTENTS

Quark Power Supply Unit
Modular Cable Set
Cable Bag
User Manual
AC Power Cord
Three Cable Ties
Four Mounting Screws

General
Brand	Rosewill
Model	Quark 550

Details
Type	ATX 12V V2.3 & EPS 12V 2.92
Maximum Power	550 W
Fans	1 x Silent 135mm Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
CrossFire	CrossFire Ready
Max PSU Length	160 mm
Modular	Full Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	> 92%
Energy-Efficient	80 PLUS PLATINUM Certified
Over Voltage Protection	+3.3V, +5V, +12V
Input Voltage	100 - 240 V
Input Frequency Range	60 - 50 Hz
Input Current	8 - 4A
Output	+3.3V@20A,+5V@20A,+12V@45A,-12V@0.3A,+5VSB@2.5A
MTBF	100k hours at 25 degree C, 80% load, nominal input
Approvals	UL, FCC, CE, Nemko Certified
Connectors	Modular Cable: 1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 2 x 6+2-Pin PCI-E Connector 6 x 5-Pin SATA Connector 4 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Features
Features	80 PLUS PLATINUM Certified Continuous 550W@40 Degree C Full-Modular Design Single strong 12V rail - ideal for Gaming system SLI & CrossFire ready - 2 x 6+2-pin Connector 1 x Silent 135mm Fan with auto fan speed control Active-PFC with auto AC-input voltage adjustment (100 - 240V) Mesh sleeve on all cables for easier cable routing and better ventilation Over Temperature / Current / Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components Safety & EMI Approval: CE, FCC, UL, RoHS

Dimension & Weight
Dimensions	3.39" x 5.91" x 6.30"

Additional Information
First Listed on Newegg	April 03, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Rosewill Quark Series 550W Full Modular Gaming Power Supply with LED Indicator, 80 Plus Platinum Certified, Single +12V Rail, Intel 4th Gen CPU Ready, SLI & Crossfire Ready - Quark-550

80 Plus Platinum Certified to deliver over 92% efficiency

LED lights will indicate a malfunction on +3.3V, +5V, +12V and other rails

Fully modular design provides cable management

ATX 12V V2.3-ready, supports EPS 12V 2.92 and backward compatible with ATX 12V 2.01
