|Form Factor||Low Profile|
|Internal Connectors||2 x SATA 150|
|Transfer Rate||Up to 1.5Gb/s|
|Operating Systems Supported||Windows 98SE/ ME/ NT 4.0/2000/XP/Vista, Windows Server 2003, Server 2008 32 and 64bit|
|Features||Compliant with PCI Specification, revision 2.2.|
Integrated PCI DMA engines.
32 bit, 33/66MHz fully compliant PCI host interface.
Sufficient power current 1.5A5V and 2A12V to supply External Device.
Two special shielded and durable SATA1 connectors for plugging more than 1,000 times.
Supports Spread Spectrum in receiver.
Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes.
*Note: HDD Controllers are capable to support all HDD sizes, but different OS may limited the HDD sizes that can be supported. For example, XP 32-bit supports only up to 2TB.

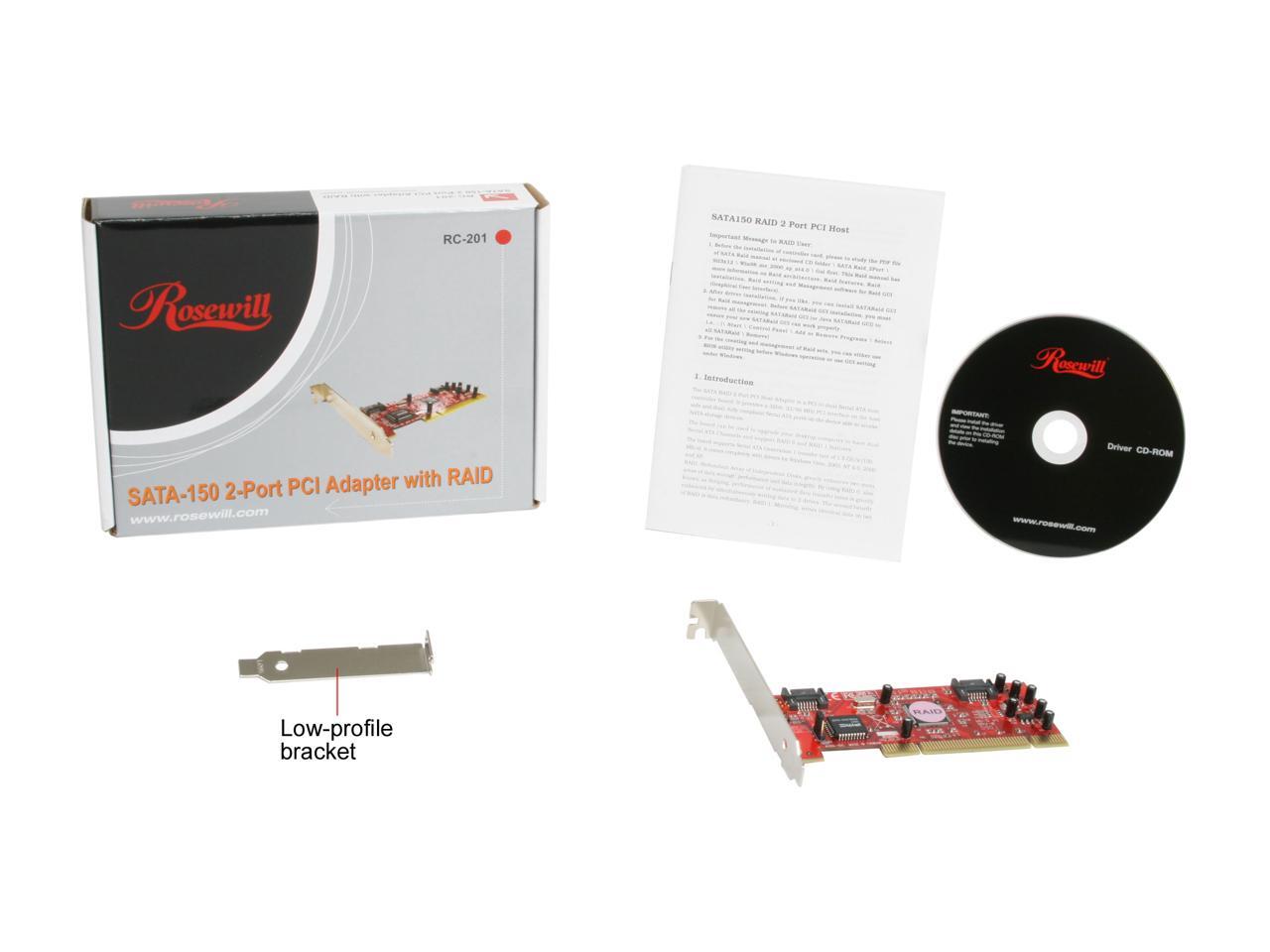

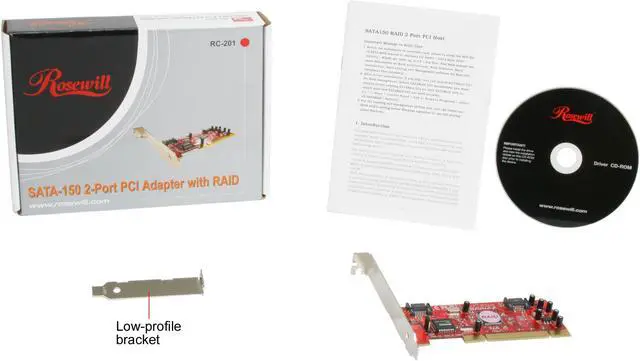

|Package Contents||RC-201 SATA RAID 2 Port PCI Host Adapter x1|
Users Manual x1
Driver CD x1
Low profile bracket x1
|Date First Available||January 17, 2006|
