Need to add an additional hard drive to your system but don't have any ports left? Well, the Rosewill RC-212 controller card will provide all the ports you need. Rosewill special "Magic Switch" design of the RC212 has 2 external and 2 internal SATA ports (all using L-Type connector). You can activate two SATA ports randomly by jumper depending on your needs. In addition, the Rosewill RC-212 features an Ultra ATA/133 IDE port.
If you need, the RC-212 can support RAID in the following modes: RAID 0 (striping), RAID 1 (mirroring), RAID 0+1 (mirroring+striping). The 2 external ports will allow most SATA 1.0a devices to connect with no problems, just make sure the device is compatible. And for those older systems the Ultra ATA/133 IDE port can provide additional expansion for hard drives or other devices.
Last, but not least, the RC-212 includes drivers for most Windows operating systems including Windows 98SE/ ME/NT 4.0/2000/XP.
Need to add an additional hard drive to your system but don't have any ports left? Well, the Rosewill RC-212 controller card will provide all the ports you need. Rosewill special "Magic Switch" design of the RC212 has 2 external and 2 internal SATA ports (all using L-Type connector). You can activate two SATA ports randomly by jumper depending on your needs. In addition, the Rosewill RC-212 features an Ultra ATA/133 IDE port.
If you need, the RC-212 can support RAID in the following modes: RAID 0 (striping), RAID 1 (mirroring), RAID 0+1 (mirroring+striping). The 2 external ports will allow most SATA 1.0a devices to connect with no problems, just make sure the device is compatible. And for those older systems the Ultra ATA/133 IDE port can provide additional expansion for hard drives or other devices.
Last, but not least, the RC-212 includes drivers for most Windows operating systems including Windows 98SE/ ME/NT 4.0/2000/XP.

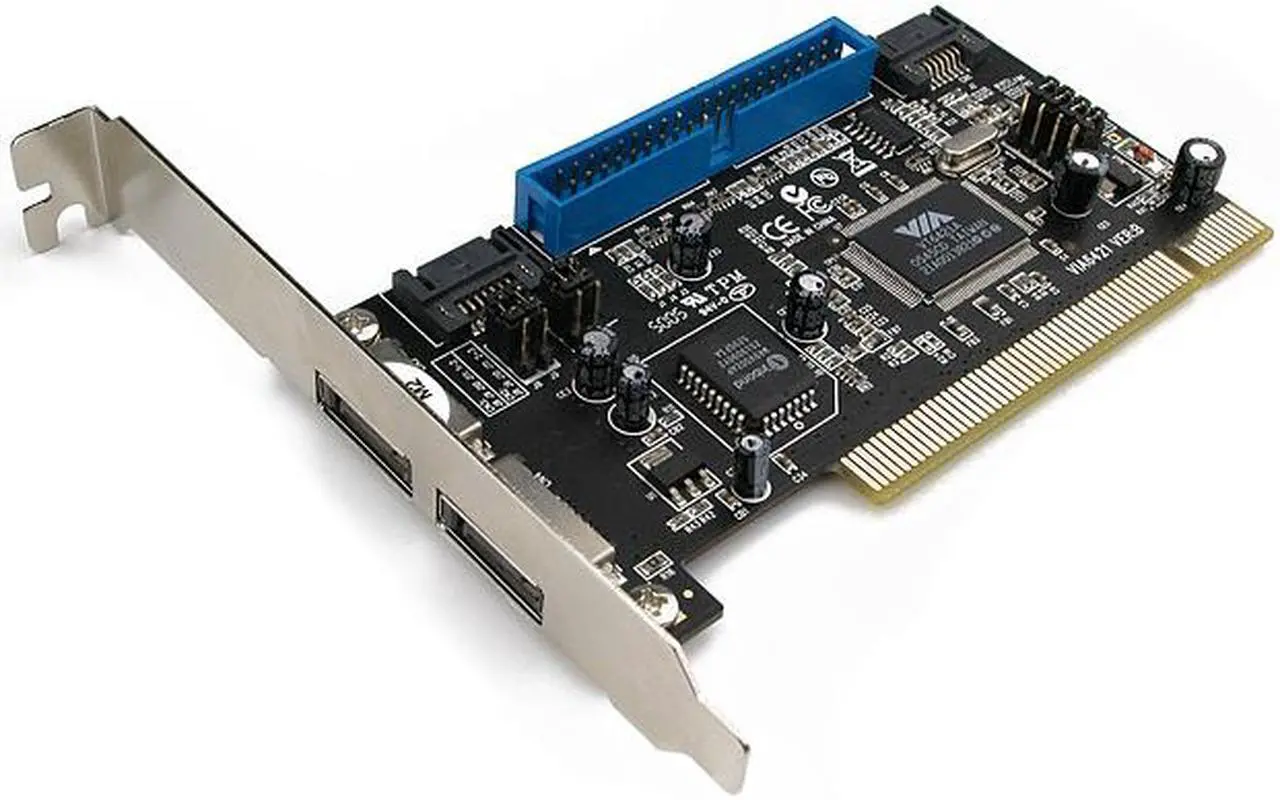

SATA and PATA Combo DesignFeaturing two internal SATA ports and one ATA 133 port, the Rosewill RC-212 allows you to expand two SATA and two ATA devices to your system.

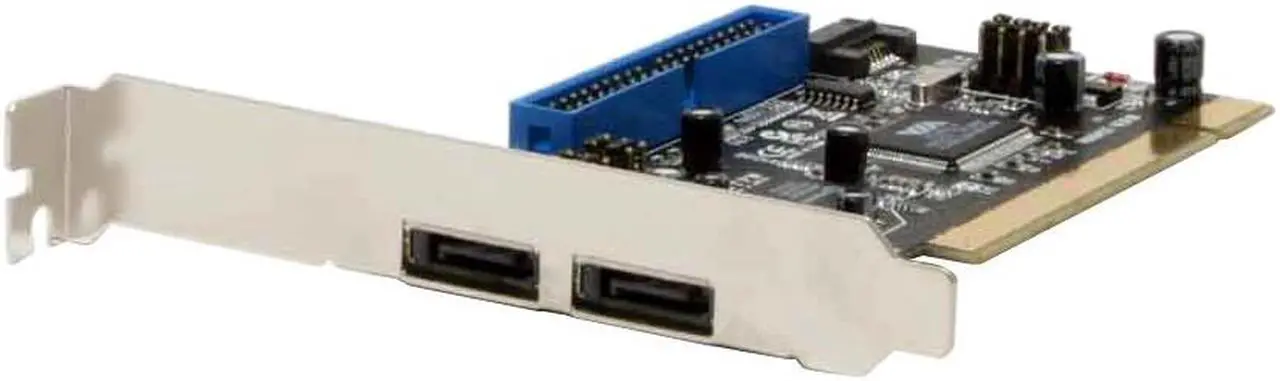

External SATA Ports using L-type SATA connectorWith two external SATA ports on the bracket panel for easy setup and hot-pluggability, backup photos, videos and more multimedia content in external devices with ease.
Learn more about the Rosewill RC-212
Model
Brand
Rosewill
Model
RC-212
Details
Type
SATA / IDE
External Connectors
2 x SATA 150
Internal Connectors
2 x SATA 150 + 1 x ATA 133
Interface
PCI
Transfer Rate
Up to 1.5GB/s
RAID
SATA 150 + ATA 133 : Supports Raid 0, 1, 0+1, JBOD, un-RAID mode
Operating Systems Supported
Windows 98SE/ ME/ NT 4.0/2000/XP/Vista 32/64bit/Home Server/Server 2003/Server 2008 Plug n Play support for Win7 (32/64 bit, build 7600)
Features
Features

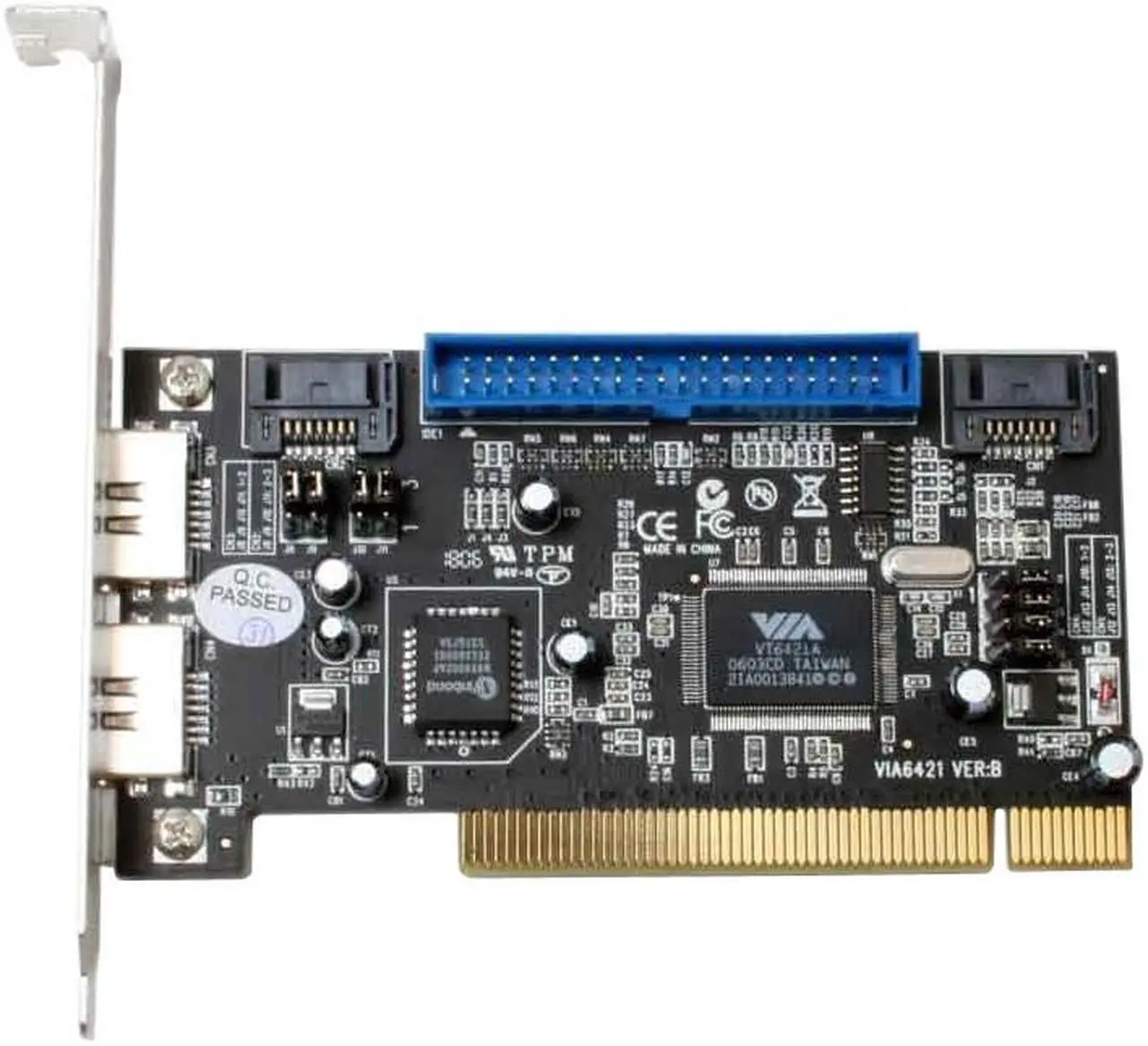

Chipset: VIA 6421 Bus Interface: PCI bus 32 bit Rosewill special design of “Magic Switch”: RC212 has 2 external and 2 internal SATA ports. You can activate two SATA ports randomly by jumper depending on you need. Two modes for RAID (0/1/0+1) or expanding card for ATA/ATAPI/SATA device (Un-RAID) for your needs. SATA 1.0: * Compliant with Serial ATA 1.0 specification * Compliant with PCI Specification Rev. 2.2 * Supports all UDMA and PIO modes * Supports ACPI * Dual independent DMA channels * Data transfer rate support up to 1500MB/Sec. ATA 133 : * Compatible with ATA/ATAPI-6 specifications * Supports the Scatter/Gather function for the DMA/UDMA function * Supports PCI power management V1.0 to reduce power consumption * Supports Raid 0, 1, 0+1 (RAID 0+1 needs at least two SATA HD and two ATA HD working together) 48-bit LBA Support: Recognizes drives bigger than 137GB
Attention: Need a floppy driver on PC if you want to install a new OS into a fresh HD attaching to this card Providing two modes for your system- Mode 1: expanding two ATA and two SATA devices without RAID construction to your system. Mode 2: construct RAID 0/1/0+1. In each mode, you can select booting from HD connecting to motherboard or RC-212 (if you want to install a new system from HD connecting to RC-212, you need a floppy drive to process the installation).
Package Contents
Package Contents

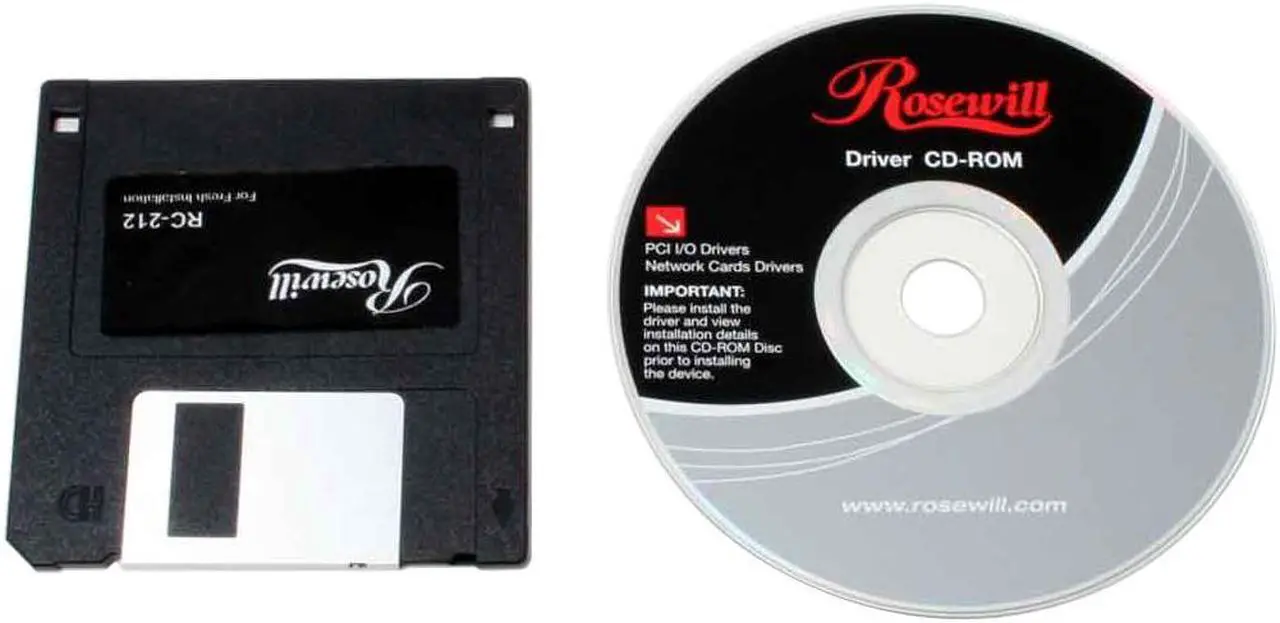

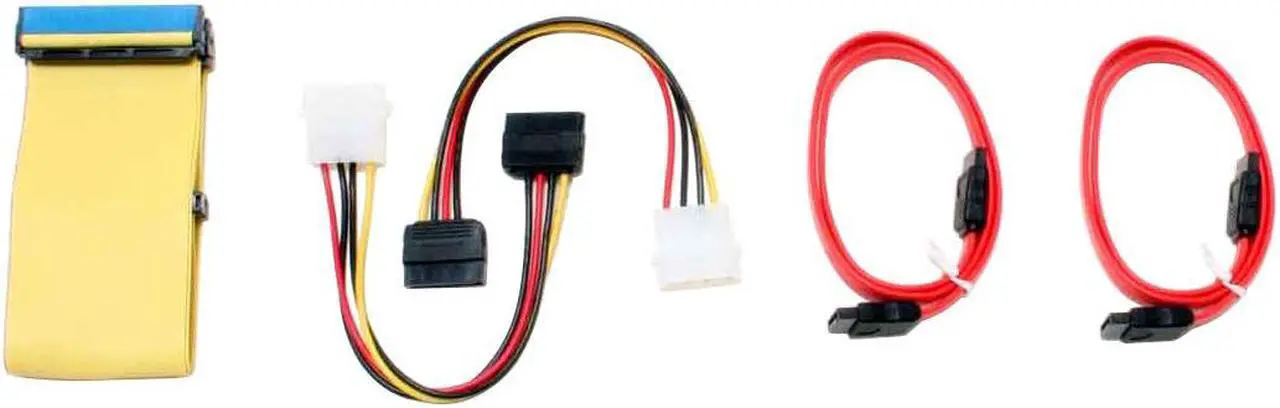

1 x VIA VT6421 RAID PCI Card 2 x SATA Signal & 2 x Power Cable 1 x IDE ATA/133 Cable 1 x Driver CD 1 x User Manual 1 x Floppy Disk fro fresh installation.
