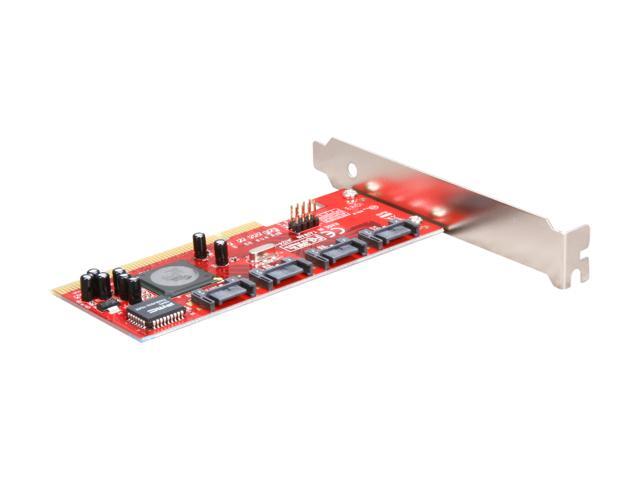

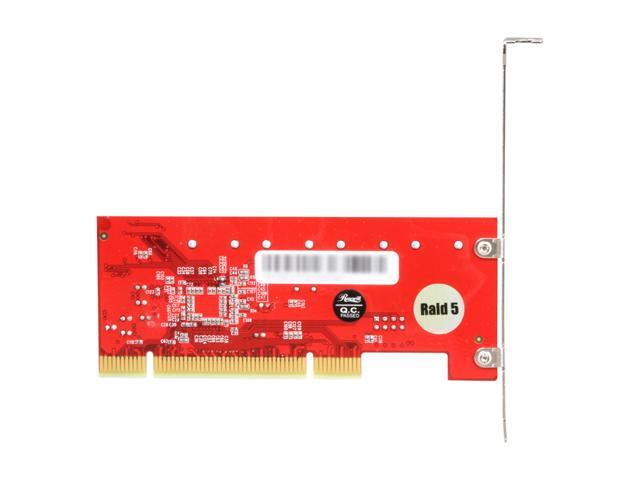

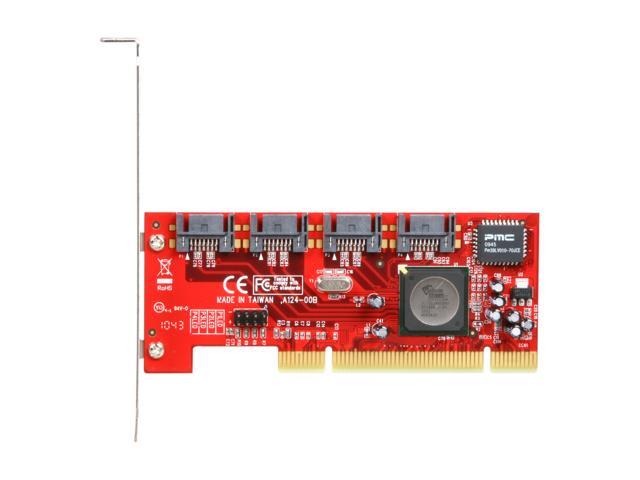

Rosewill RC-217 SATA II 4 Port RAID 0/1/5/10 PCI RAID Card

(77) Write a Review
  • RAID 0/1/5/10
  • 4 x SATA II Internal Connectors
  • Up to 3Gb/s
Specs
Reviews (77)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill RC-217

Model
Brand Rosewill
Model RC-217
Details
Type SATA II (3.0Gb/s)
Internal Connectors 4 x SATA II
Interface PCI
Transfer Rate Up to 3Gb/s
RAID RAID 0/1/5/10
Operating Systems Supported Completely with drivers for Windows 2000 ,XP and 2003 Server. Supports 64bit / 32bit Windows Vista.
Mac OS X v10.3.9 and v10.4 Non-booting driver supported by SiliconImage SiI3124.
Linux 32bit / 64bit drivers supported for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE9.0 SP2, SuSE9.0 SP3 by SiliconImage SiI3124.
Features

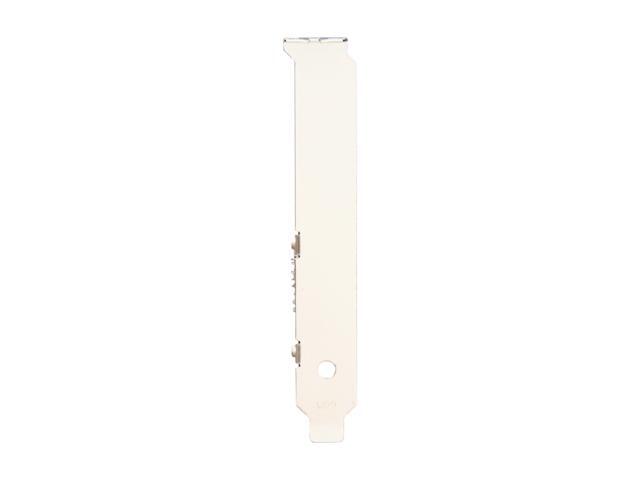

Features Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card
48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB.

Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1.

Hot-plug capability.

Supports SATA II First-party DMA commands for Native Command Queuing (NCQ).

Supports Serial ATA II Port Multiplier 1.0 Specifications revision 1.1.

Plesiochronous, Single PLL architecture, 1 PLL for 4 ports.

Supports four independent Serial ATA channels.

Independent Link, Transport, data FIFO, command fetch, scatter/gather, and command execution.

31 Commands and Scatter/Gather Tables per Port.

Supports bootable drive.

Four Pin header on board for LED connection.

Fully RoHS compliant.

*Note: HDD Controllers are capable to support all HDD sizes, but different OS may limited the HDD sizes that can be supported. For example, XP 32-bit supports only up to 2TB.

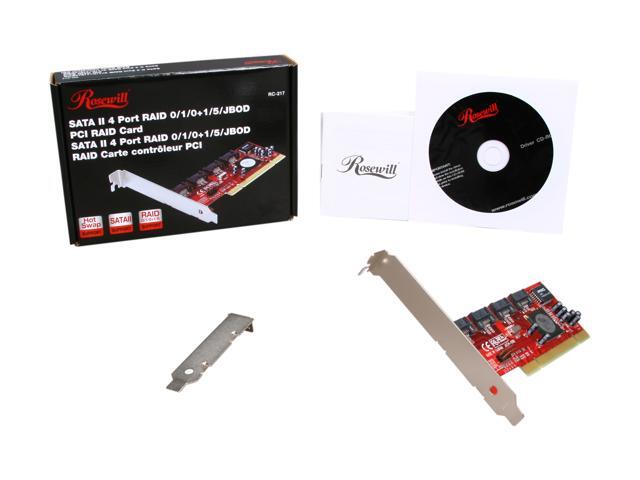

Package Contents
Package Contents RC-217 x1
User Manual x1
Driver CD x1
Low profile bracket x1
