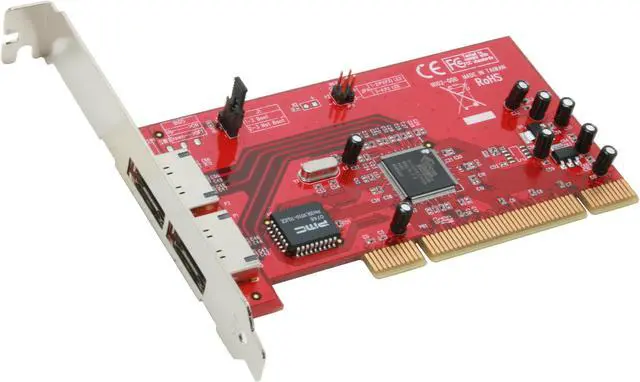

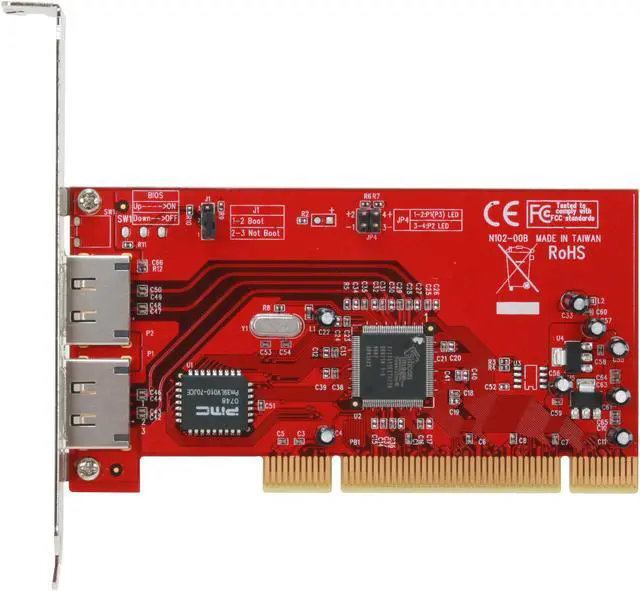

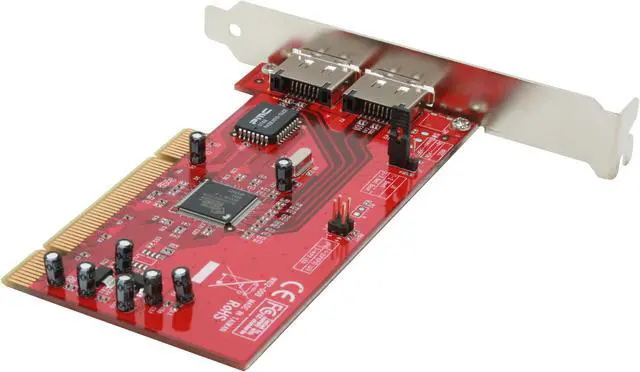

Rosewill RC-220 Silicon Image PCI 2 x eSATA 1.5G non-RAID Controller Card Also includes an additional Low Profile Size PCI Bracket

(29) Write a Review
  • 2 x eSATA
  • Silicon Image non RAID
  • PCI interface
Specs
Reviews (29)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill RC-220

Model
Brand Rosewill
Model RC-220
Details
Type SATA

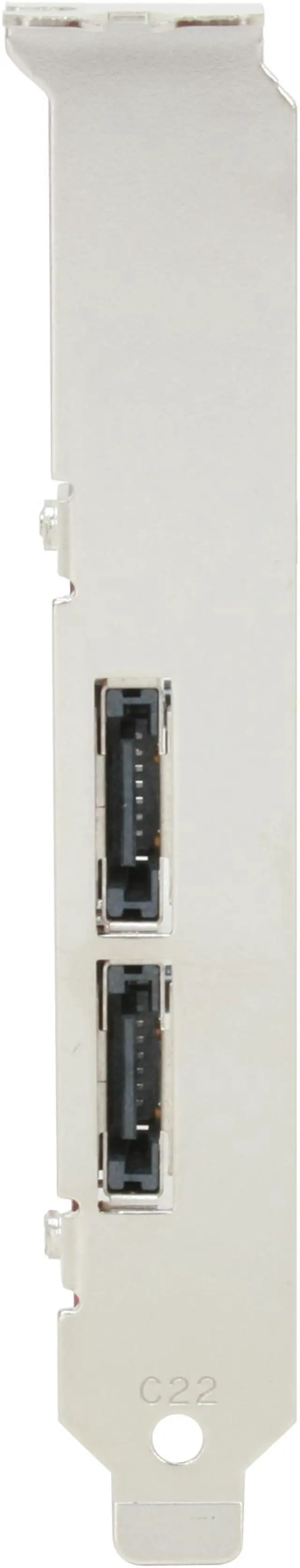

External Connectors 2 x eSATA
Interface PCI
Transfer Rate Up to 1.5Gb/s
Operating Systems Supported Completely with drivers for Windows 98, Windows Millennium, Windows NT 4.0, Windows 2000, Windows 2003 and XP, Server 2003 and 2008.
Supports 64bit / 32bit Windows Vista.
Dimensions 4.7" x 1.8"
Features
Features Chipset: SiI3512

48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB.

Dual high speed Serial ATA interface ports, each supporting 1st generation Serial ATA data rates 1.5Gb/s.

Fully compliant with Serial ATA 1.0a specifications.

Two Pin header on board for LED connection.

Jumper enable / disable on board SATA BIOS.

Supports Spread Spectrum in receiver.

Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes.

Compliant with PCI Specification, revision 2.2.

Integrated PCI DMA engines.

32 bit, 33/66MHz fully compliant PCI host interface.

SATA Ports: 10~15V DC.

Temperature: +5°C to +45°C

Humidity: Operating 20% to 80%

EMC Compliance: EN55022/1998, EN55024/1998 (European Community) & FCC Part 15 Class B (DoC) (US).

Fully RoHS compliant.

*Note: HDD Controllers are capable to support all HDD sizes, but different OS may limited the HDD sizes that can be supported. For example, XP 32-bit supports only up to 2TB.

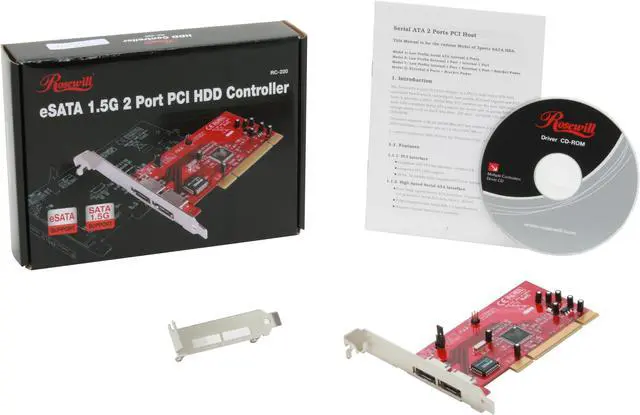

Package Contents
Package Contents RC-220 (normal PCI size bracket)
Driver disk
User manual
Low profile bracket
Additional Information
First Listed on Newegg June 06, 2008
