Question 1

I want to put a 2nd Desktop PC in a room that is hardwired with only one CAT-5 cable wall outlet.  Is this what I need to do teh job?

Accepted Answer

This will do the job nicely.

Notes: That being said, if it is truly CAT5, that cable will only support wire speeds up to 100Mbps. Hence a gigabit switch has a lot of "wasted" bandwidth. But since the price is probably under $25, it's not really an issue. If the wiring is actually CAT5e, which will be printed on the wire, that will support gigabit speeds. And then finally, it also depends on the network interface on the end point device: whether that supports fast ethernet (100 Mbps) or gigabit speeds. But 100 Mbps is fine for most home applications.

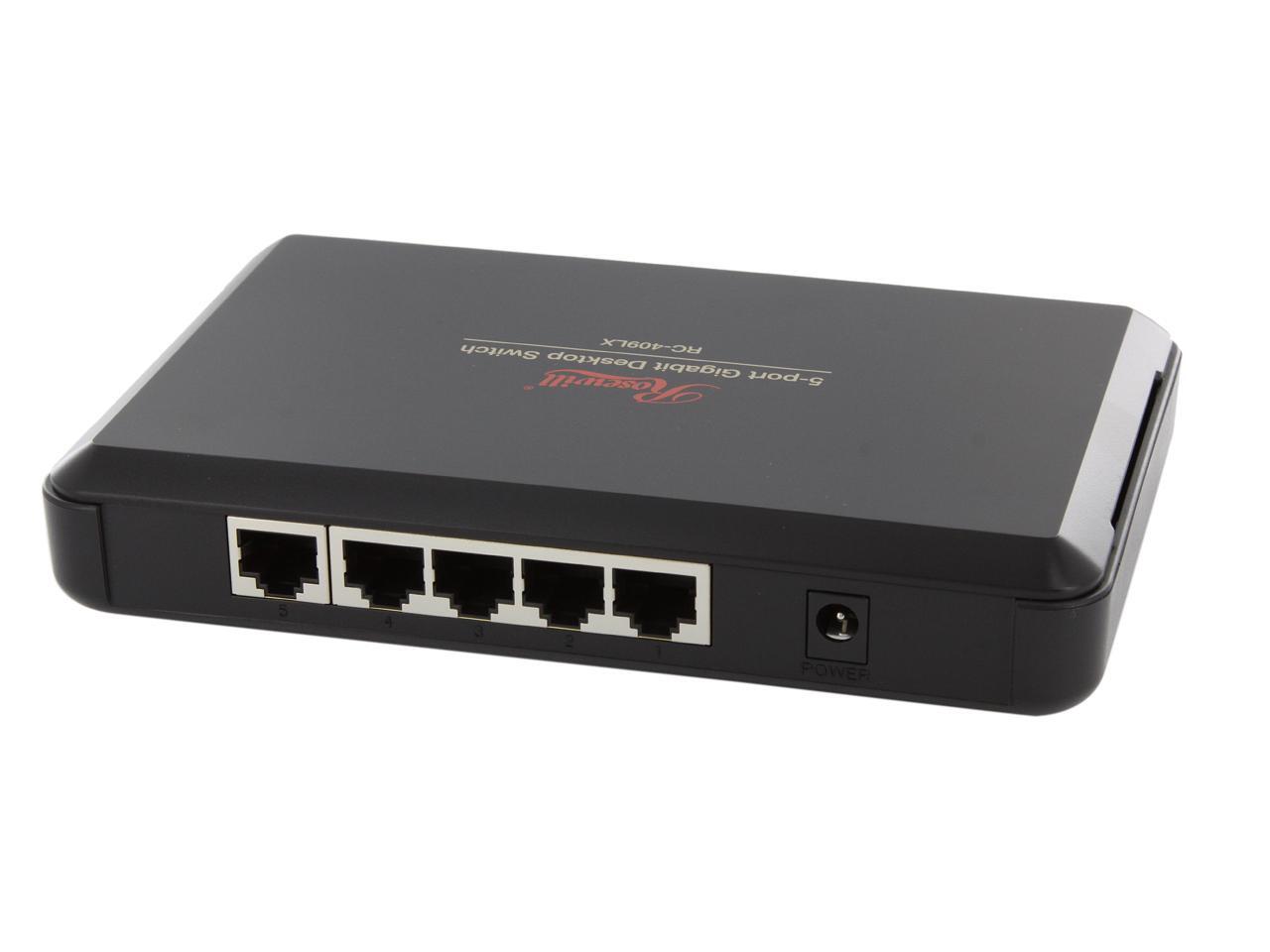

One final suggestion: looking at the pictures of the switch (I don't have it here - I ordered it for a customer) you'll notice that on the back side the leftmost port is separated from the other four and is probably your uplink port. Meaning that you should plug the ethernet cable from the wall socket into that port and then plug the 2 computers/printers into any of the 4 rightmost ports.

HTH. Good luck.

Question 2

was just wondering if anyone knows. Is there a default ip address kind of like a router to view the devices settings and such?

Accepted Answer

Hubs and un-managed switches don't provide an interface to the network, therefore there is no need for the DHCP Server to assign them an IP address and no access to settings.  Think of them as special cables.  They don't provide routing functions.  They simply make the right internal wire connections to provide physical network connectivity with attached devices.  Hubs split the bandwidth across the ports evenly.  Switches split the bandwidth across the ports according to need.
It does have a MAC address however, a unique ID assigned to all network hardware devices, which could be helpful in diagnostics.

Question 3

Can you link multiple together if you want more than 5 ports in the future?

Accepted Answer

Ya, it's a switch, u can daisy chain them.  It is possible to run into collisions and stuff, you will have to see..   PS don't turn on the access point feature, it bricked mine.

Question 4

Was wondering if this device has a default ip address or the like to login and check/configure settings. anyone?

Accepted Answer

I didn't see one. But, this is an unmanaged switch, so I wouldn't expect anything like that. You plug it in, you turn it on, it does Ethernet.

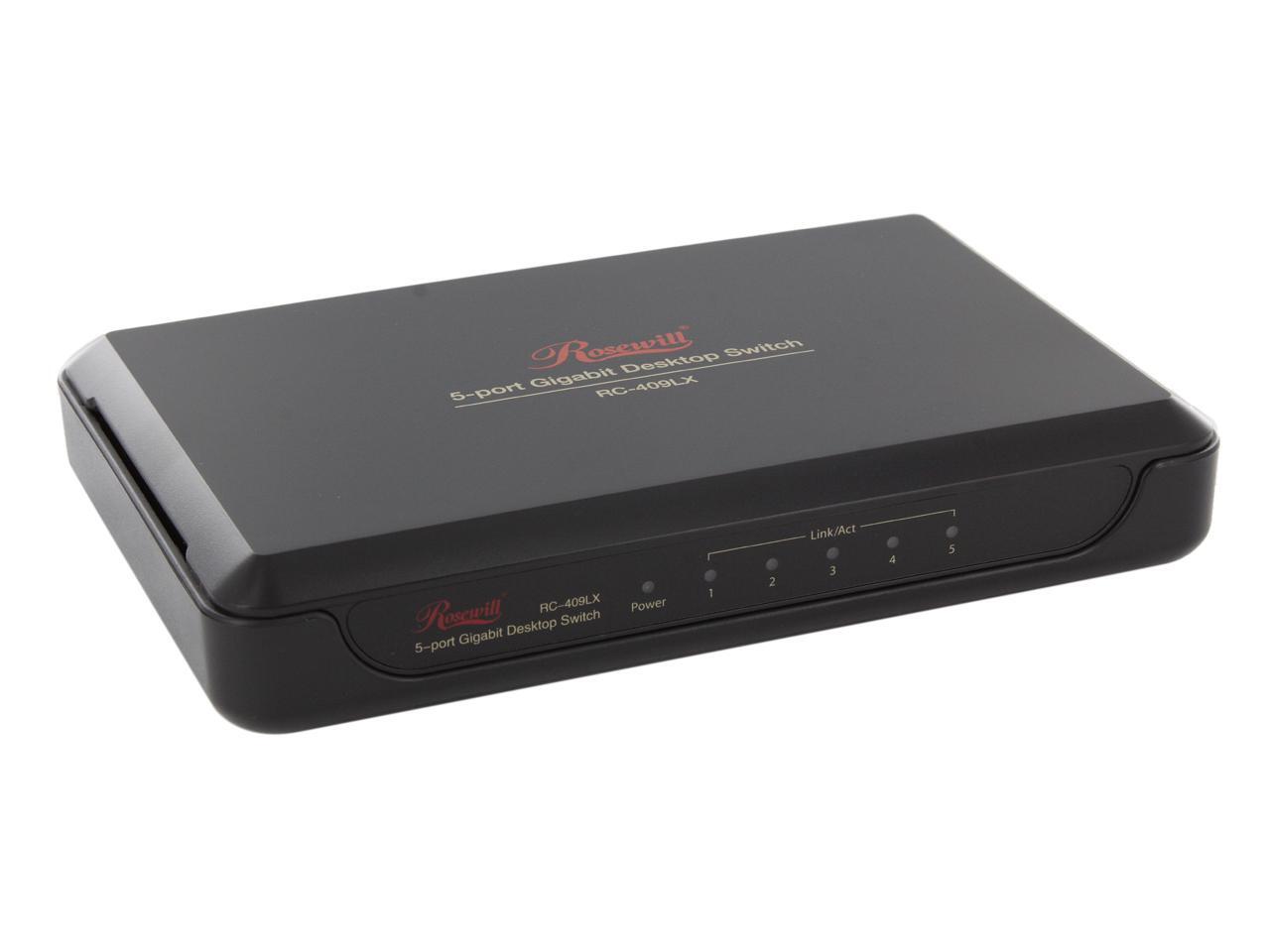

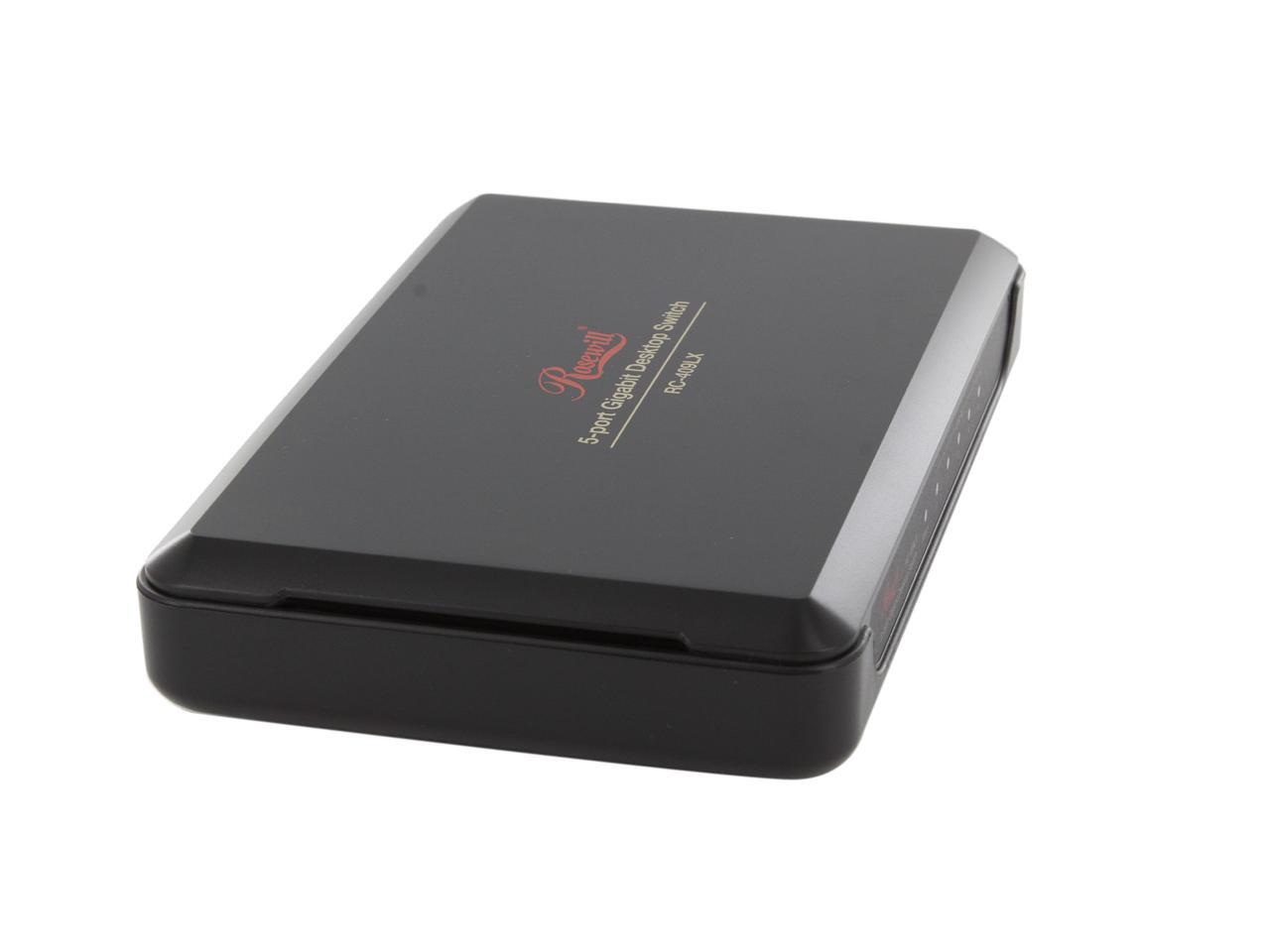

Rosewill Gigabit Unmanaged Switch
Model	RC-409LX	RC-410LX	RC-415	RC-416	RGS-1016	RGS-1024
Product
Product	5-Port Gigabit Switch	8-Port Gigabit Switch	5-Port Gigabit Switch	8-Port Gigabit Switch	16-Port Gigabit Rack Mountable Switch	24-Port Gigabit Rack Mountable Switch
Warranty
Warranty	1 to 1 Replacement	1 to 1 Replacement	1 to 1 Replacement	1 to 1 Replacement	1 to 1 Replacement	1 to 1 Replacement
Enclosure	Plastic	Plastic	Metal -Sturdy -Better Heat Dissipation	Metal -Sturdy -Better Heat Dissipation	Metal -Sturdy -Better Heat Dissipation	Metal -Sturdy -Better Heat Dissipation
Switch Capacity	10 Gbps	16 Gbps	10 Gbps	16 Gbps	32 Gbps	48 Gbps
Data RAM Buffering	1 Mbit	1 Mbit	1 Mbit	1 Mbit	2 Mbit	2 Mbit
Mac Address Table	2K	4K	8K	8K	8K	8K
Jumbo Frame	16 KB	9 KB	9 KB	9 KB	9 KB	9 KB
802.3x Flow Control	Yes	Yes	Yes	Yes	Yes	Yes
802.1p QoS	-	-	-	-	Yes	Yes
LED	Power Link / Act	Power Link / Act Speed	Power Link / Act	Power Link / Act	Power Link / Act	Power Link / Act 1000 Mbps (Speed)
Green Ethernet	Yes	Yes	Yes	Yes	Yes	Yes
Rack mountable	-	-	Yes	Yes	Yes	Yes

Brand	Rosewill
Model	RC-409LX

Format	External
Standards	IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Full-duplex Flow Control
Network Management Type	Unmanaged

Uplink Ports	None
Primary Ports	5 x RJ45
Primary Port Speed	10/100/1000Mbps

MAC Address Table	2K
Switching Method	Store and Forward
VLAN Support	No
Jumbo Frames	16KB
Buffer Memory	1MB

Rosewill RC-409LX Switch 10/100/1000 Mbps 5 x RJ45 Auto-Negotiation RJ45 ports (Auto MDI / MDIX) 2K MAC Address Table 1MB Buffer Memory

Rosewill Gigabit Unmanaged Switch

Learn more about the Rosewill RC-409LX

Customer Reviews of the Rosewill RC-409LX

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PoE	No
Stackable	No
SNMP	No
QoS	No
LACP	No
Layer	Layer 2 Only
Port Mirroring	No
Module Support	No
LEDs	Power, Link / Act

Temperature	0°C to 40°C (32°F to 104°F)
Humidity	5% - 90%, Non-condensing

Dimensions & Weight
Dimensions	1.10" x 6.50" x 4.30"
Weight	0.99 lb.

Item#: N82E16833166057
