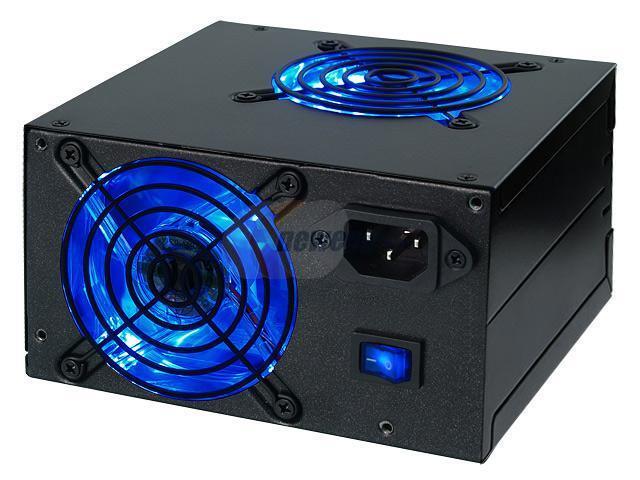

Rosewill RD550N-2DB-SL-BK 550W ATX Form Factor 12V V2.2 / SSI standard EPS 12V SLI Ready Active PFC Power Supply

OUT OF STOCK.
  • ATX Form Factor 12V V2.2 / SSI standard EPS 12V
  • Auto Switching ( 90-264V ) 50/60 Hz
  • +3.3V@24A, +5V@24A, +12V1@20A, +12V2@18A, -12V@0.5A, +5VSB@2.5A
Specs
Reviews

Learn more about the Rosewill RD550N-2DB-SL-BK

Model
Brand Rosewill
Model RD550N-2DB-SL-BK
Details
Type ATX Form Factor 12V V2.2 / SSI standard EPS 12V
Maximum Power 550W

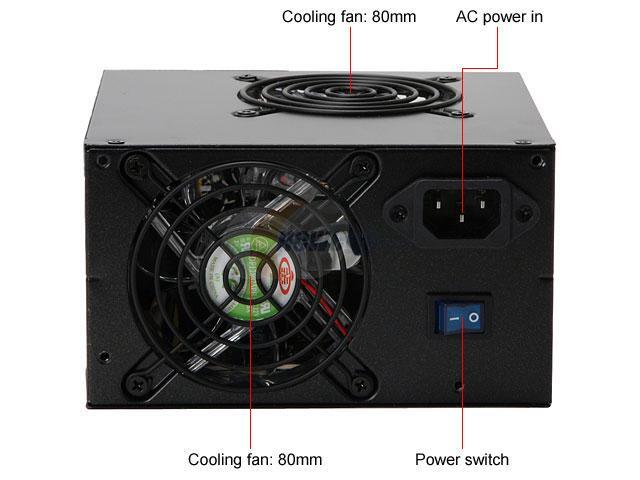

Fans Dual 8 cm ball bearing fans with LED light
PFC Active
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin
SLI SLI Ready
Modular No
Efficiency >80%
Over Voltage Protection Yes
Input Voltage Auto Switching ( 90-264V )
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 6A @ 230V

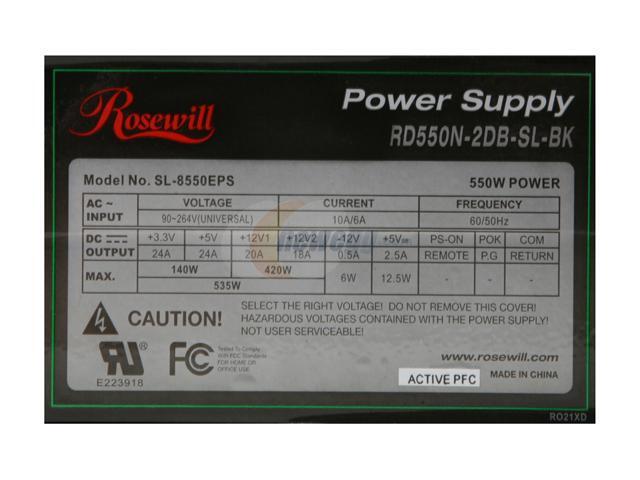

Output +3.3V@24A, +5V@24A, +12V1@20A, +12V2@18A,
-12V@0.5A, +5VSB@2.5A
MTBF 100k hours at max. load, normal line and 25°C
Approvals CSA,UL,TUV
Weight 5.7 lbs.
Features

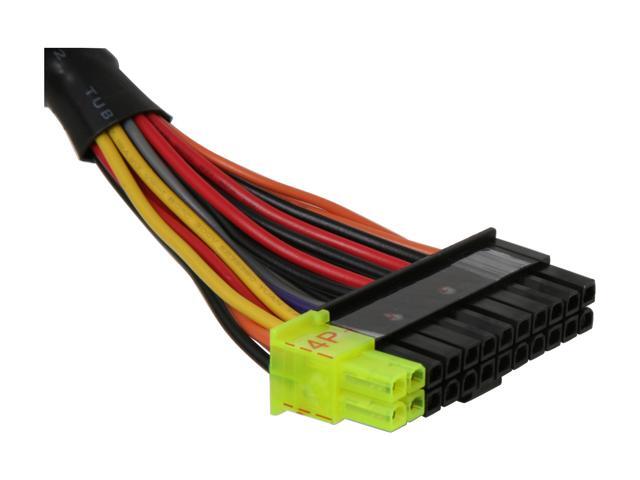

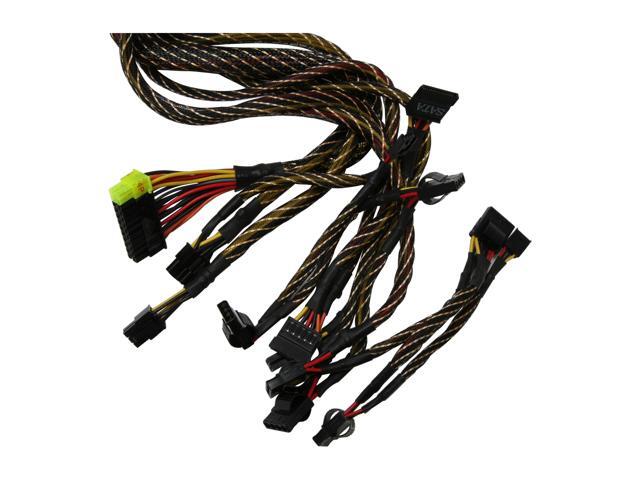

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
1 x 12V (8Pin)
4 x peripheral Quick release connectors
4 x SATA
2 x Floppy
2 x PCI-E
Features Built-in inrush current, over temperature, over current, and over voltage protection circuits

Shielding Tube on main power cable to Reduce EMI

Smart and Slient Fans with Temperature Sensor
Additional Information
Date First Available July 02, 2007
