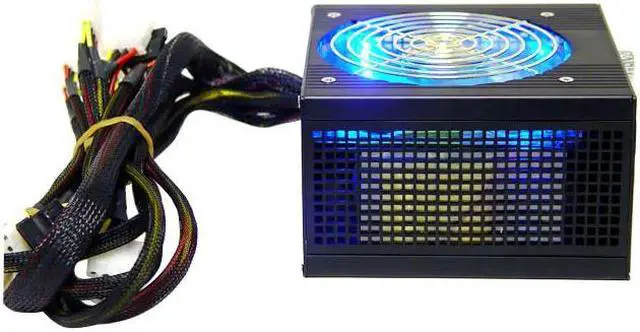

Rosewill RE501-BLK 500 W ATX12V v2.03 Aluminum Power Supply

Name: Rosewill RE501-BLK 500 W Aluminum Power Supply
Brand: Rosewill
SKU: N82E16817182004
Rating: 3 (54 reviews)

ATX12V v2.03
115 / 230 V 50/60 Hz
+3.3V@28A, +5V@30A, +12V1@16A,+12V2@18A, [email protected], [email protected], +5VSB@2A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (54)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill RE501-BLK

General
Brand	Rosewill
Model	RE501-BLK

Details
Type	ATX12V v2.03
Maximum Power	500 W

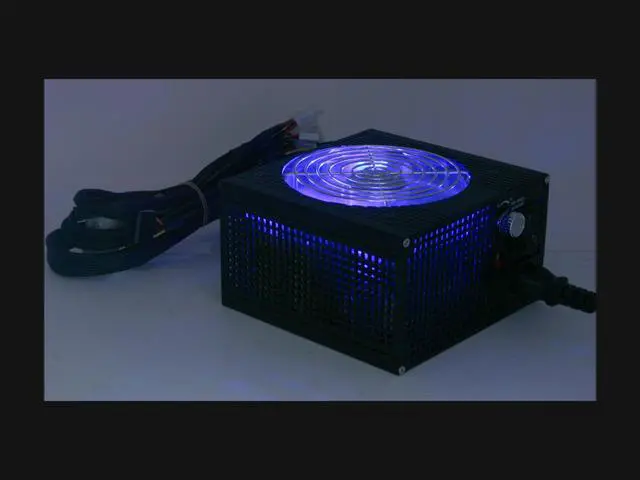

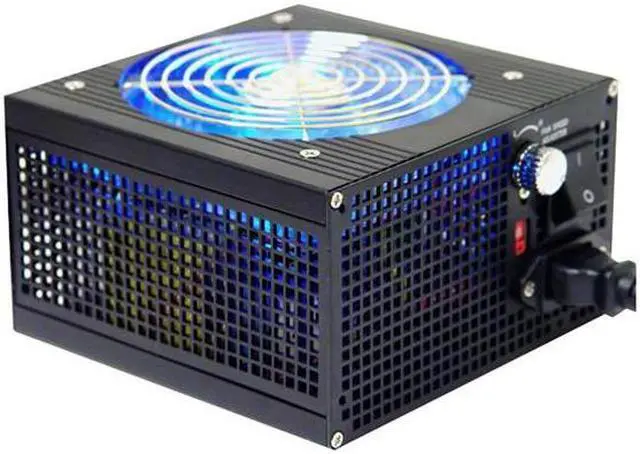

Fans	1 x 120mm Blue LED Fan
PFC	No

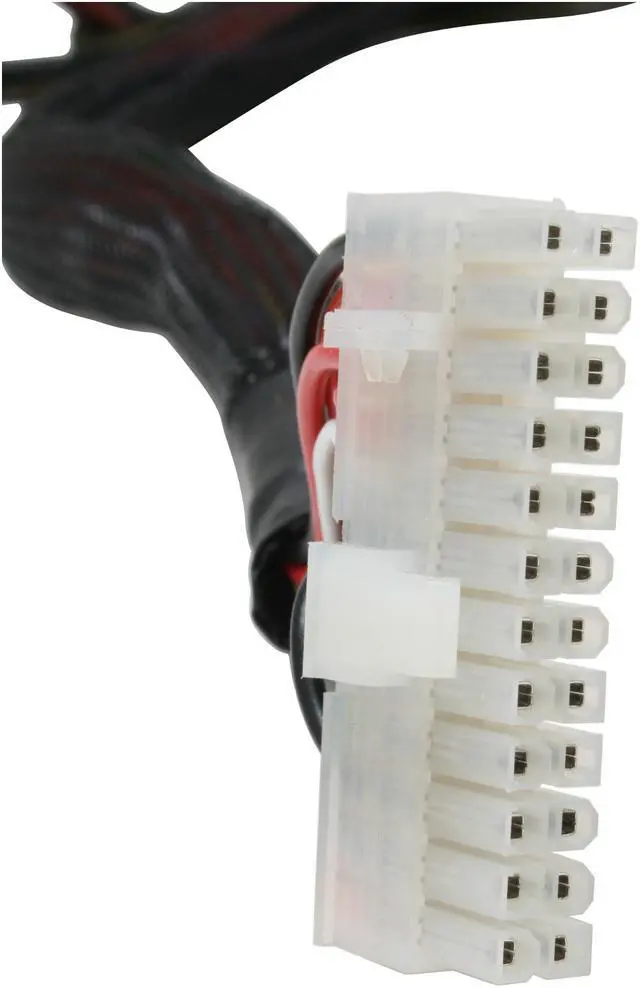

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	No
SLI	No
CrossFire	No
Modular	No
Hold-up Time	>10ms at Full Load and nominal input voltage
Efficiency	> 70%
Over Voltage Protection	+3.3V, +5V, +12V
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	10A/5A

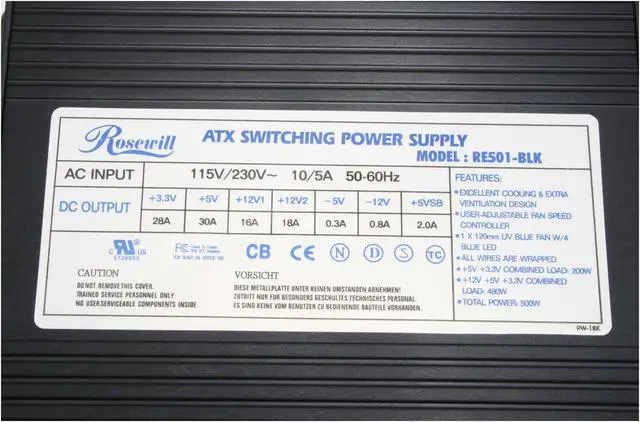

Output	+3.3V@28A, +5V@30A, +12V1@16A,+12V2@18A, [email protected], [email protected], +5VSB@2A
MTBF	100k hours at max. load, normal line and 25°C
Approvals	cUL, FCC, CSA, CB, CE,

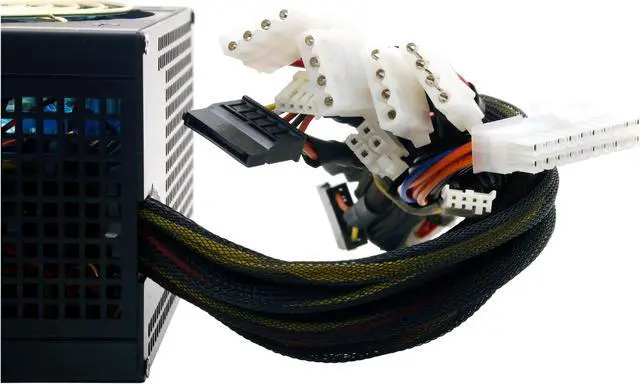

Connectors	1 x Main connector (20+4Pin) 1 x 12V(P4) 8 x peripheral 2 x SATA 2 x Floppy

Features

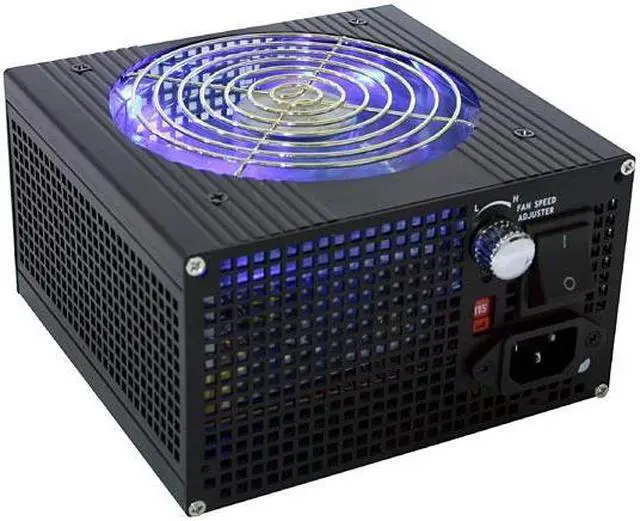

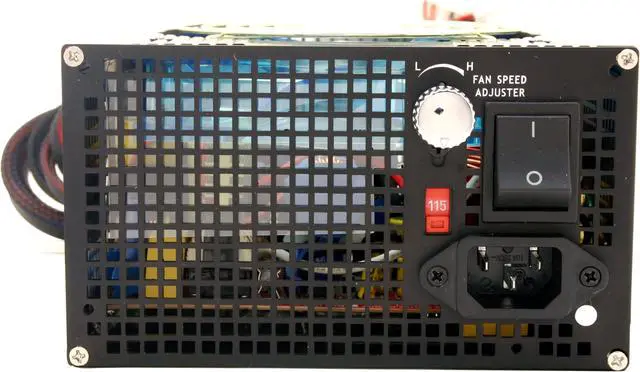

Features	User-Adjustable Fan Speed Controller, Sleeved Wires

Additional Information
First Listed on Newegg	August 31, 2004
