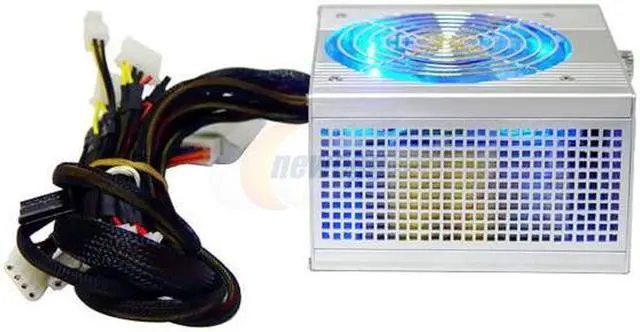

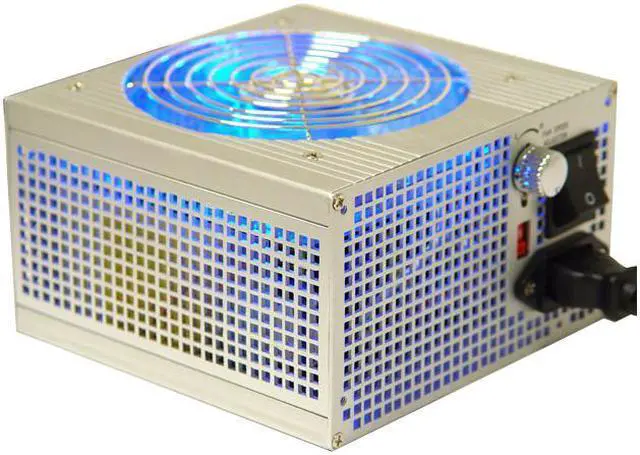

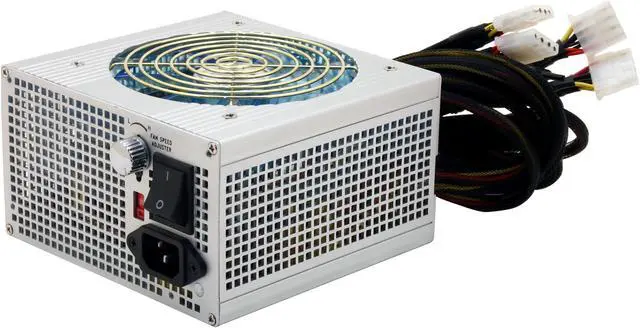

Rosewill RE501-SLV 500 W ATX 12V v2.03 Aluminum Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (36)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill RE501-SLV

General
Brand	Rosewill
Model	RE501-SLV

Details
Type	ATX 12V v2.03
Maximum Power	500 W

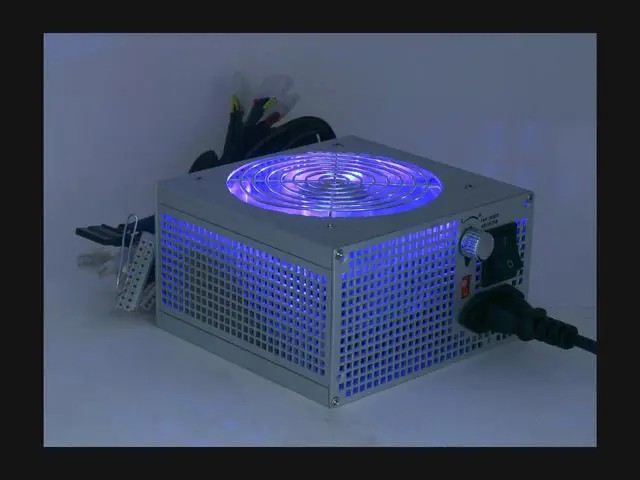

Fans	1 x 120mm Blue LED Fan
PFC	No
Main Connector	20Pin
+12V Rails	Single
PCI-Express Connector	No
SLI	No
Modular	No
Hold-up Time	> 10ms at Full Load and nominal input voltage
Efficiency	70% min. under max. range load
Over Voltage Protection	+3.3V +5V +12V
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	10A @ 115V, 5A @ 230V

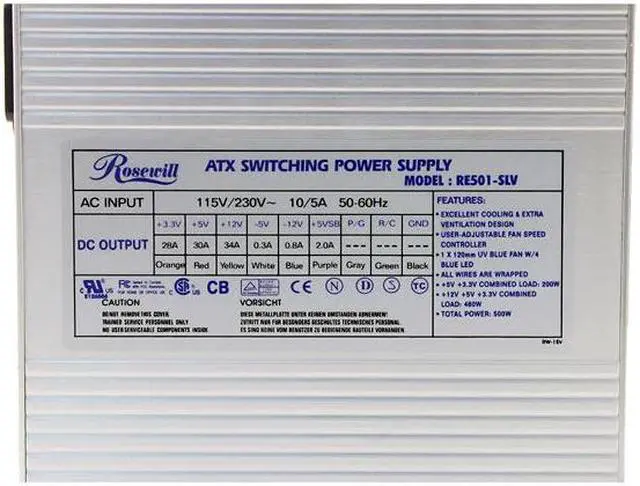

Output	+3.3V@28A, +5V@30A, +12V@34A, [email protected], [email protected], +5VSB@2A
MTBF	100k hours at max. load, normal line and 25°C
Approvals	UL, CSA, FCC, CE, TUV

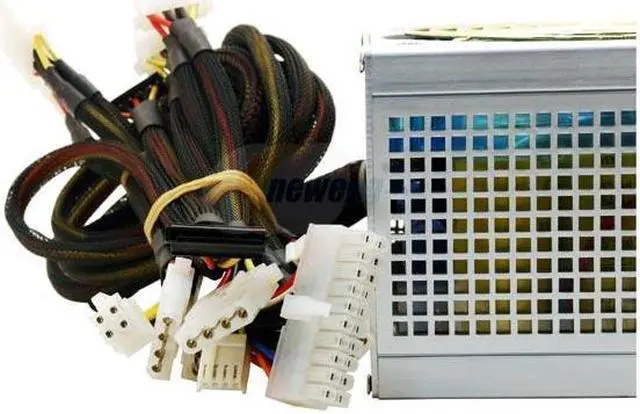

Connectors	1 x Main connector (20Pin) 1 x 12V (P4) 8 x peripheral 2 x SATA 2 x Floppy

Features

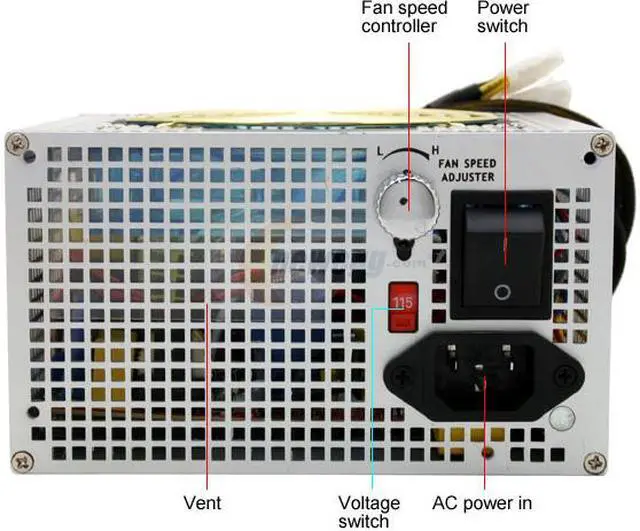

Features	Supports both Intel and AMD Systems 120mm Blue LED Fan with Fan Speed Adjuster optimizing balance between noise reduction and necessary cooling 2.0mm Aluminum Housing provides sturdiness and best cooling Extra Ventilation Design: 4 x Side with punched holes for max heat exhaust Mesh sleeving on all cables for easier cable routing and better ventilation Built-in inrush current, over temperature/current/voltage protection circuits

Additional Information
First Listed on Newegg	October 14, 2004
