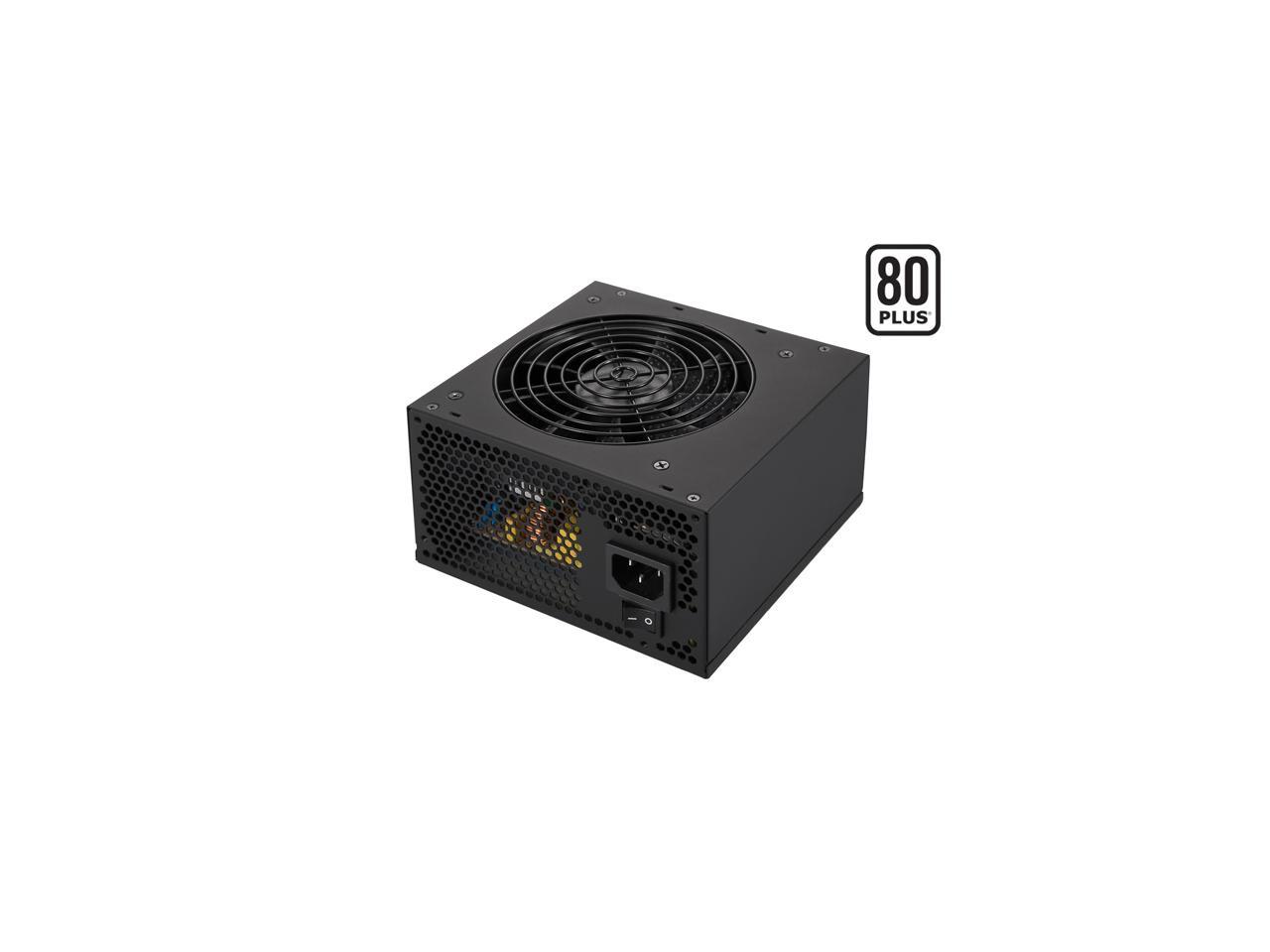

Rosewill Green Series RG530-2 530W Continuous @40°C, 80 PLUS Certified,ATX12V v2.3 & EPS12V v2.91, SLI Ready,CrossFire Ready,Active PFC "Compatible with Core i7, i5" Power Supply
OUT OF STOCK.
- ATX12V v2.3 & EPS12V v2.91
- 100 - 240 V
- 80 PLUS Certified
Specs
Reviews
Learn more about the Rosewill RG530-2
| Brand | Rosewill |
|---|---|
| Model | RG530-2 |
| Type | ATX12V v2.3 & EPS12V v2.91 |
|---|---|
| Maximum Power | Continuous 530W@40°C |

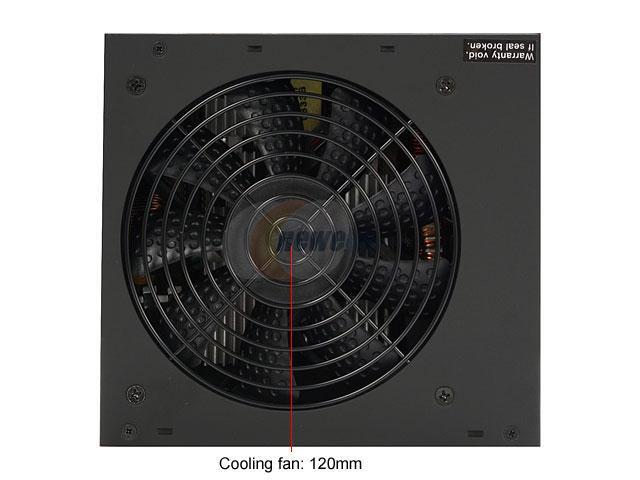

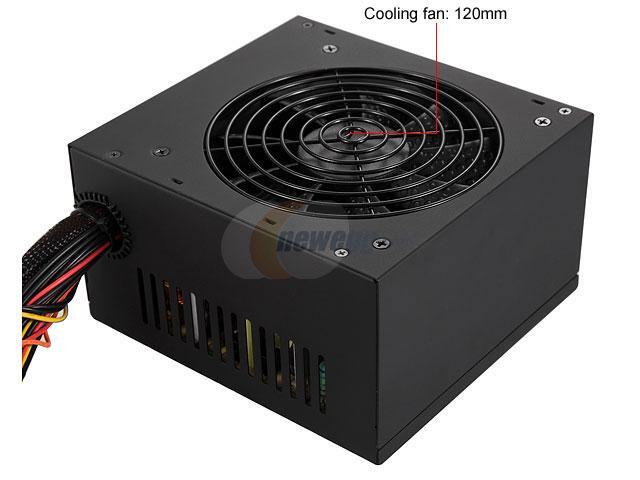

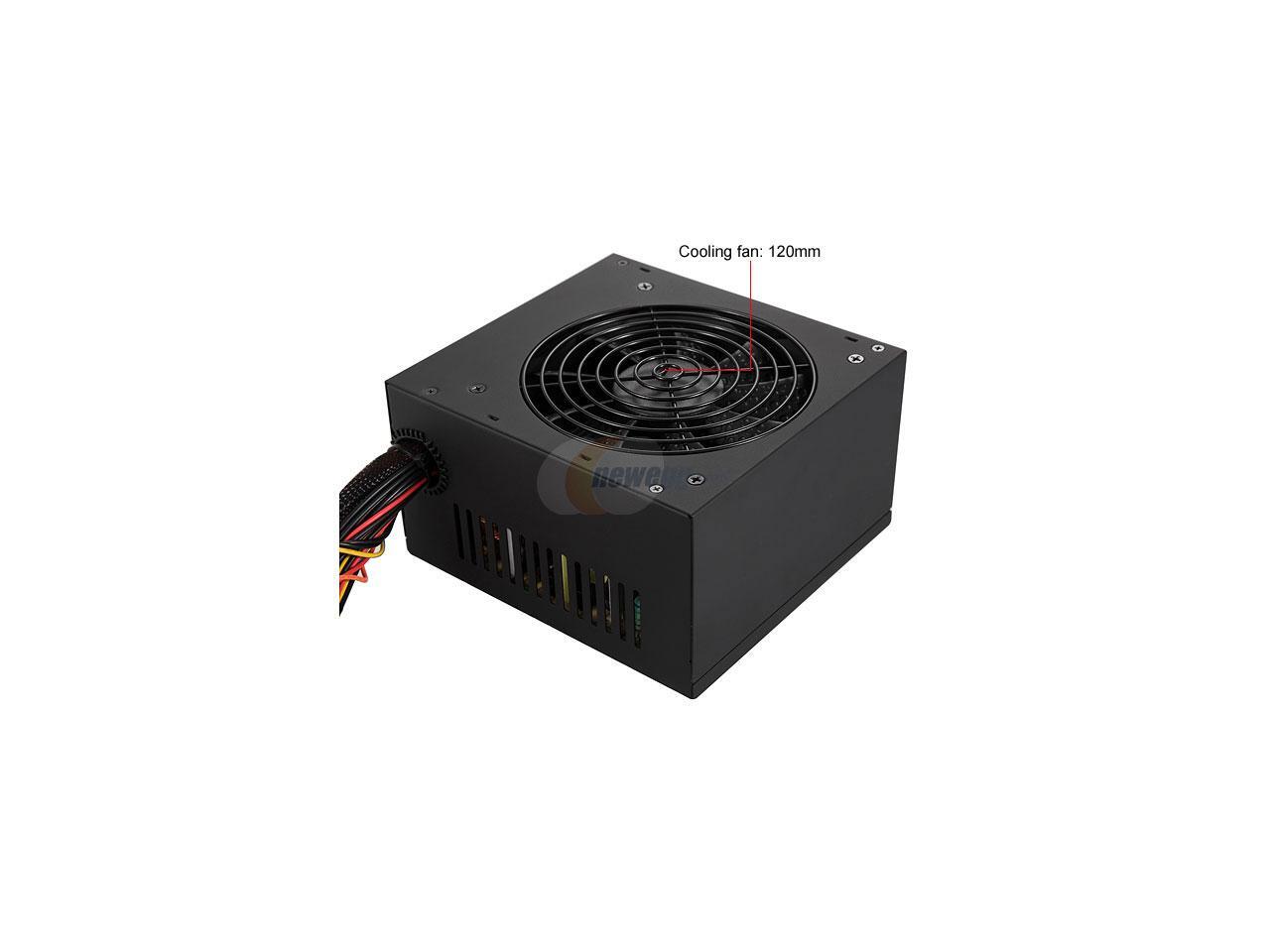

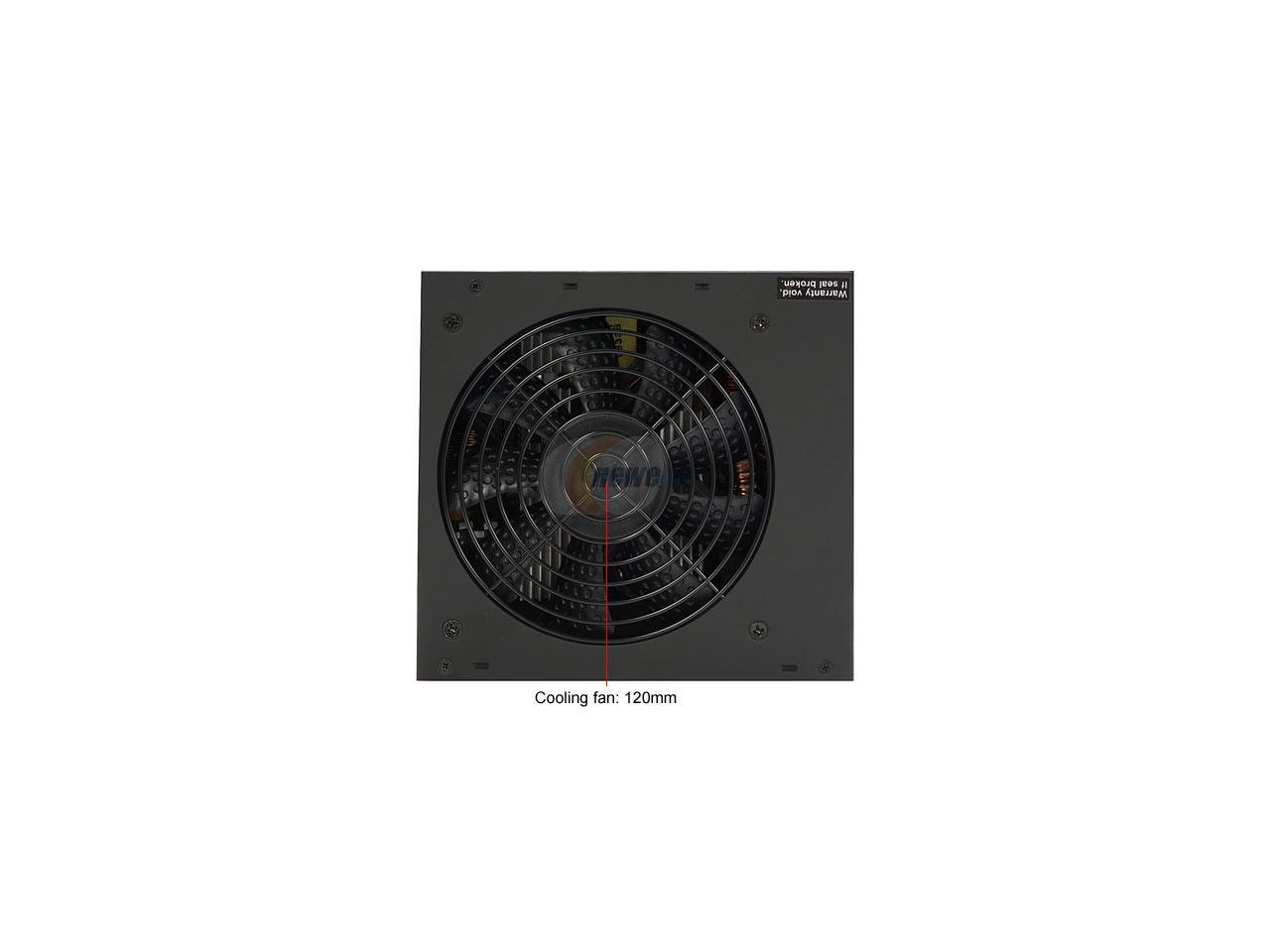

| Fans | Silent 120mm Golf Fan |
| PFC | Active |

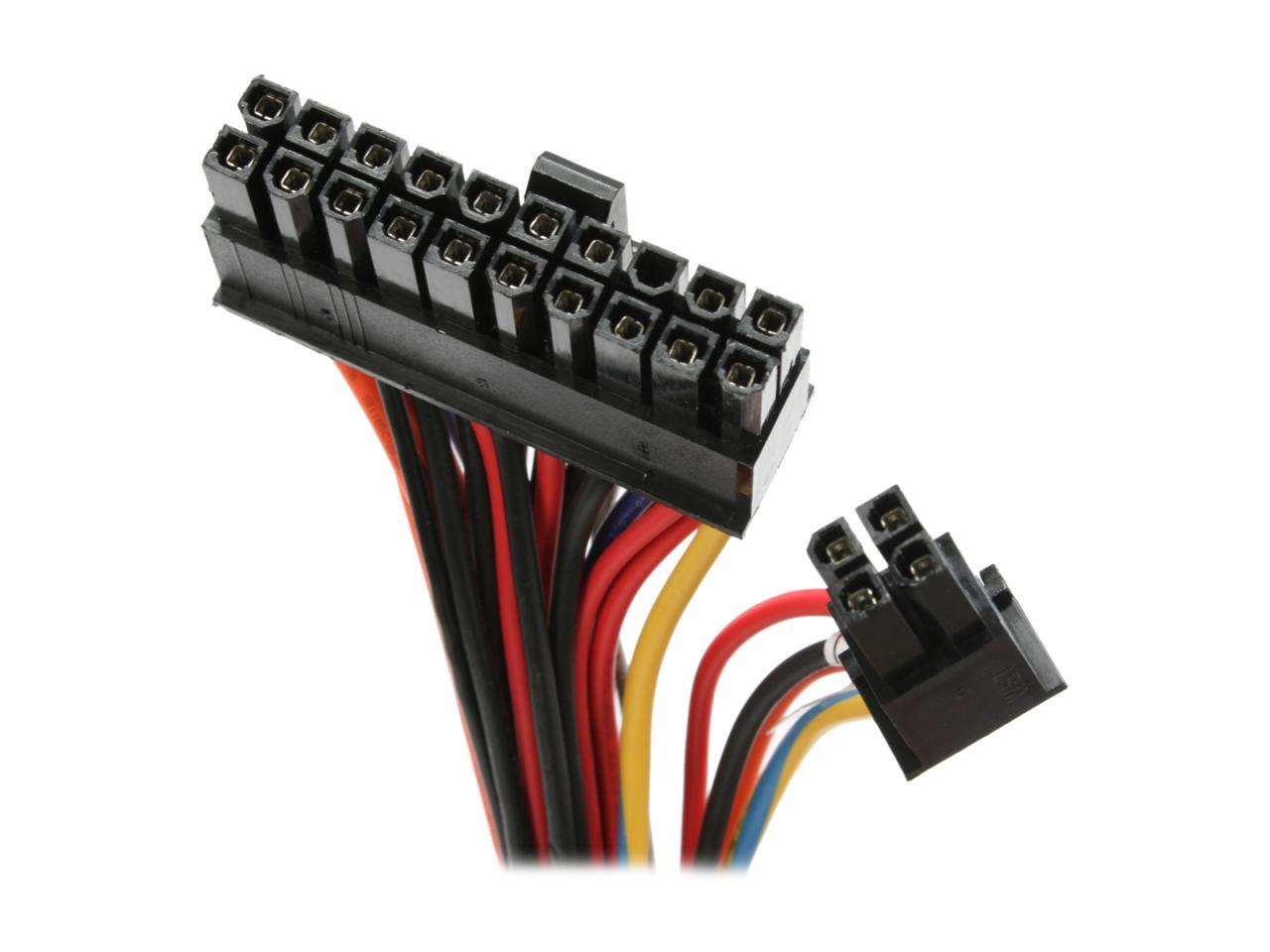

| Main Connector | 20+4Pin |
| +12V Rails | 4 |
| PCI-Express Connector | 1 x 6-Pin, 1 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms min. |
| Efficiency | > 80%, Up to 85% |
| Energy-Efficient | 80 PLUS Certified |
| Over Voltage Protection | +3.3V, +5V, +12V1, +12V2, +12V3, +12V4 |

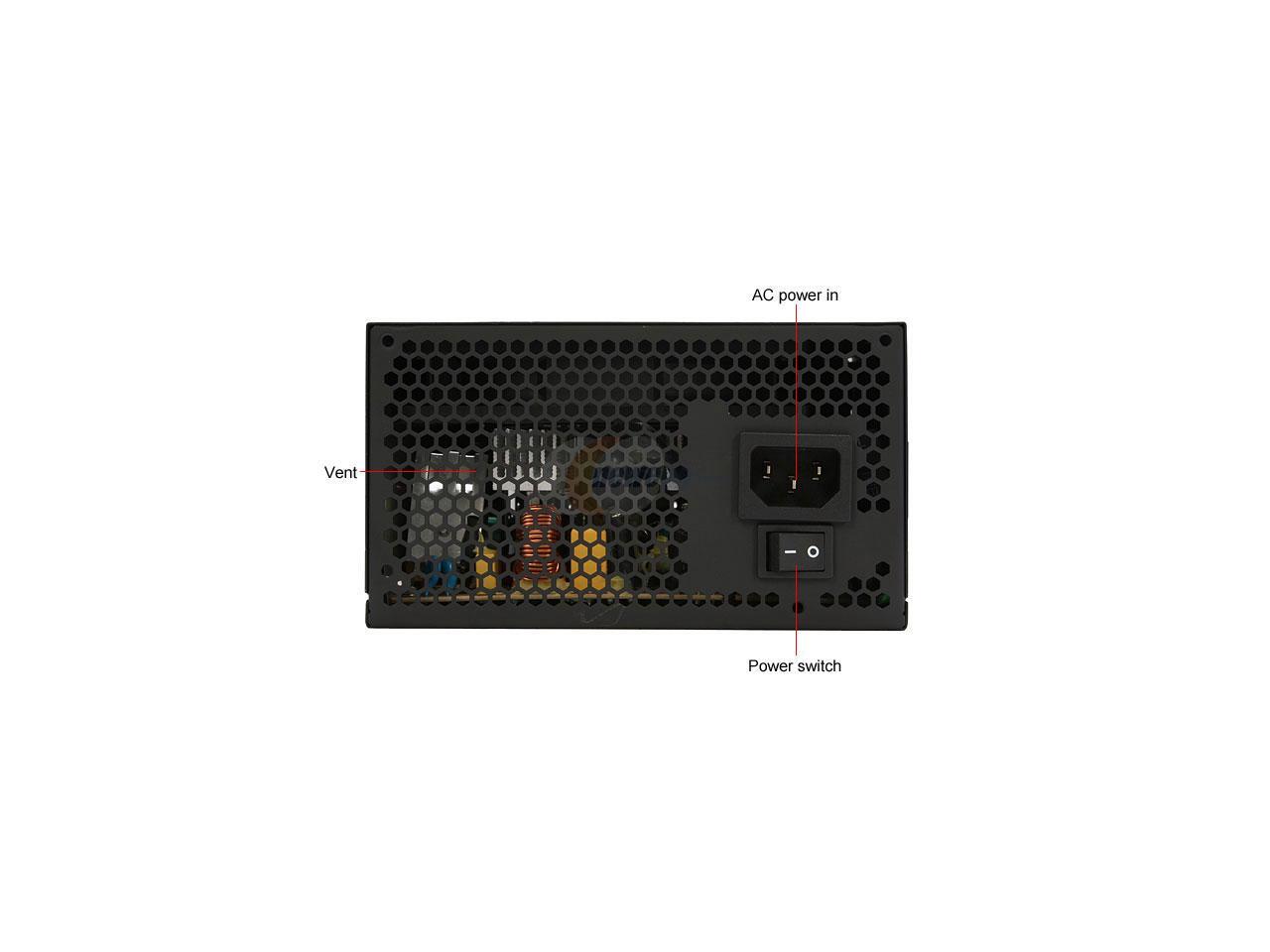

| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

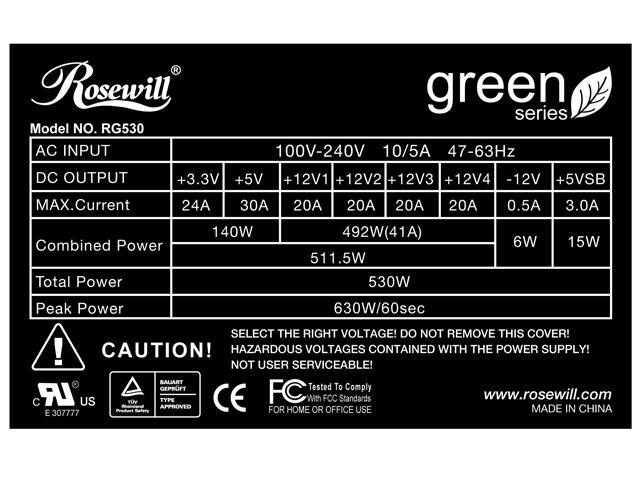

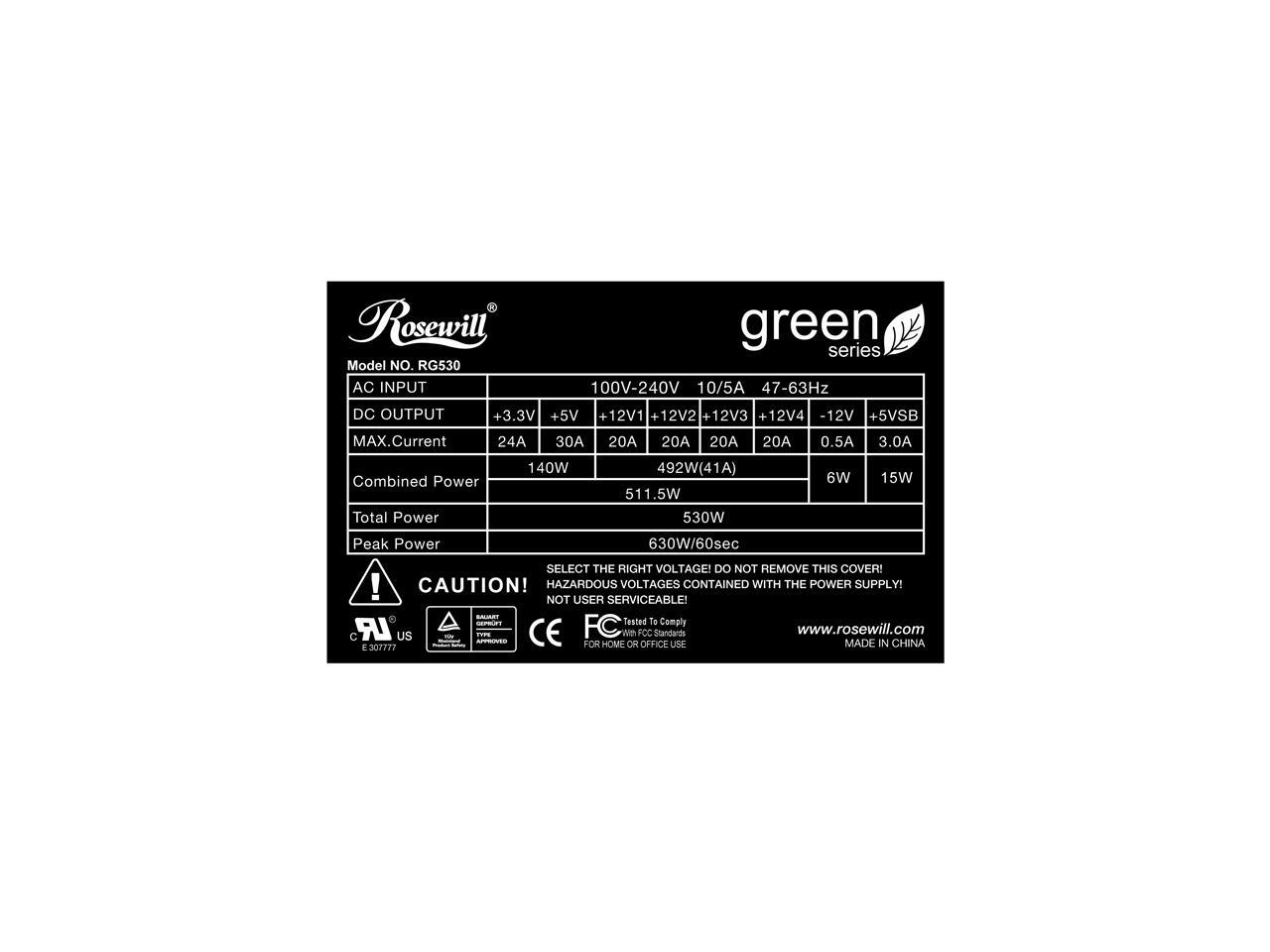

| Output | +3.3V@24A,+5V@24A,+12V1@20A,+12V2@20A, +12V3@20A, +12V4@20A,-12V@0.5A,+5VSB@2.5A |
| MTBF | >100,000 Hours |
| Approvals | TUV, FCC, UL, CE, ROHS |
| Dimensions | 5.91" x 3.39" x 5.51" |
| Weight | 4.0 lbs. |

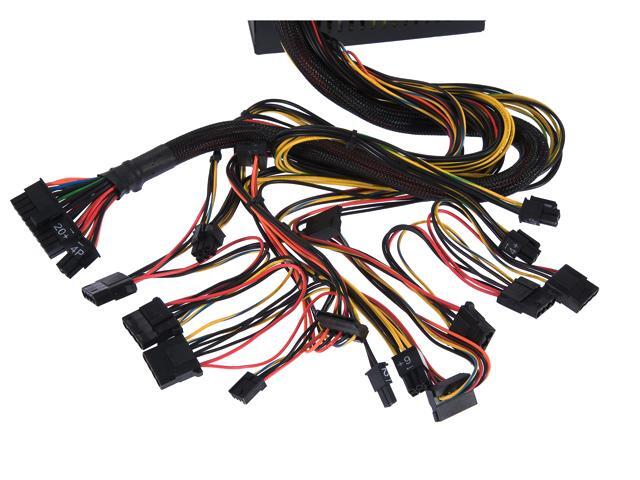

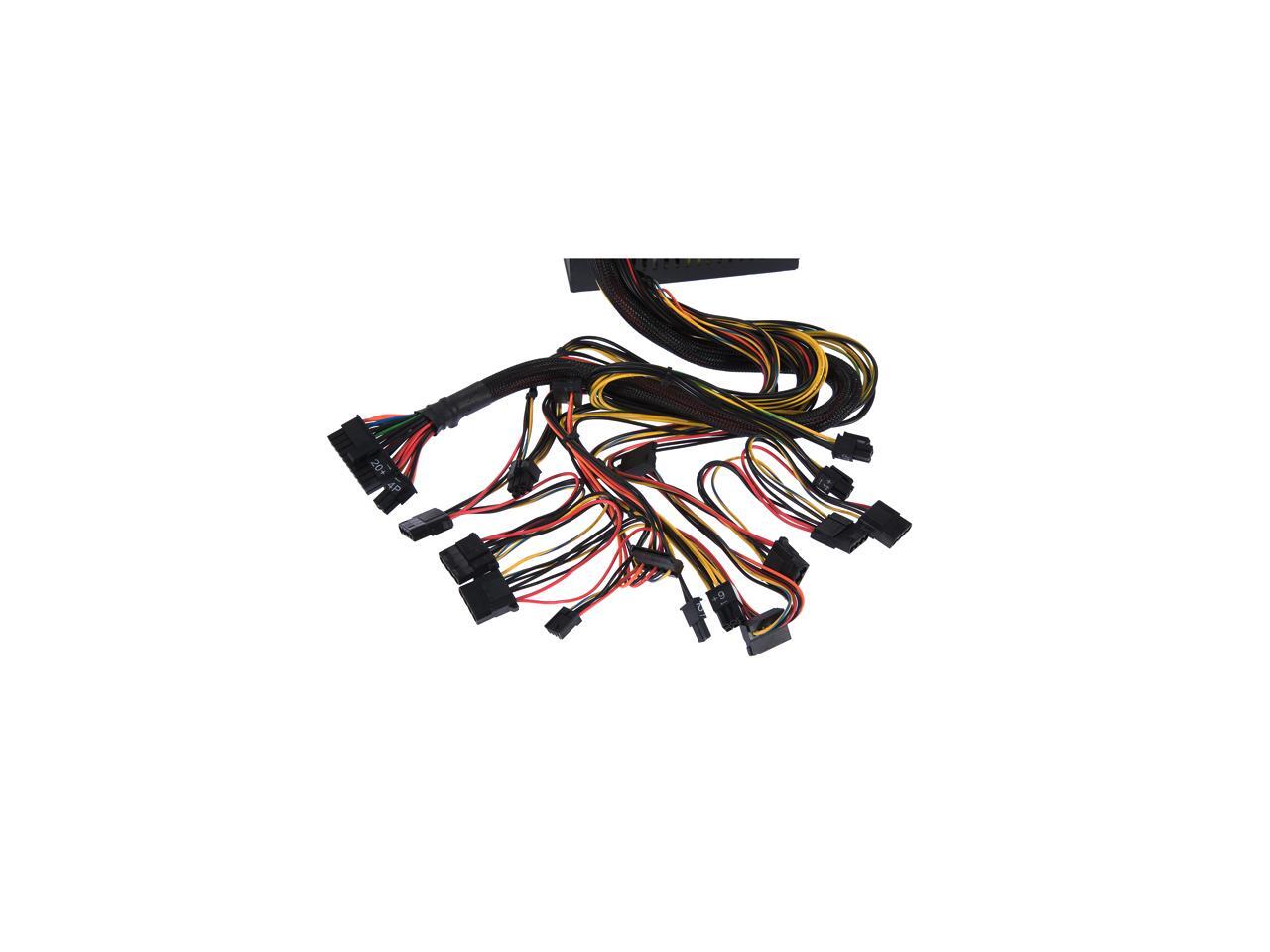

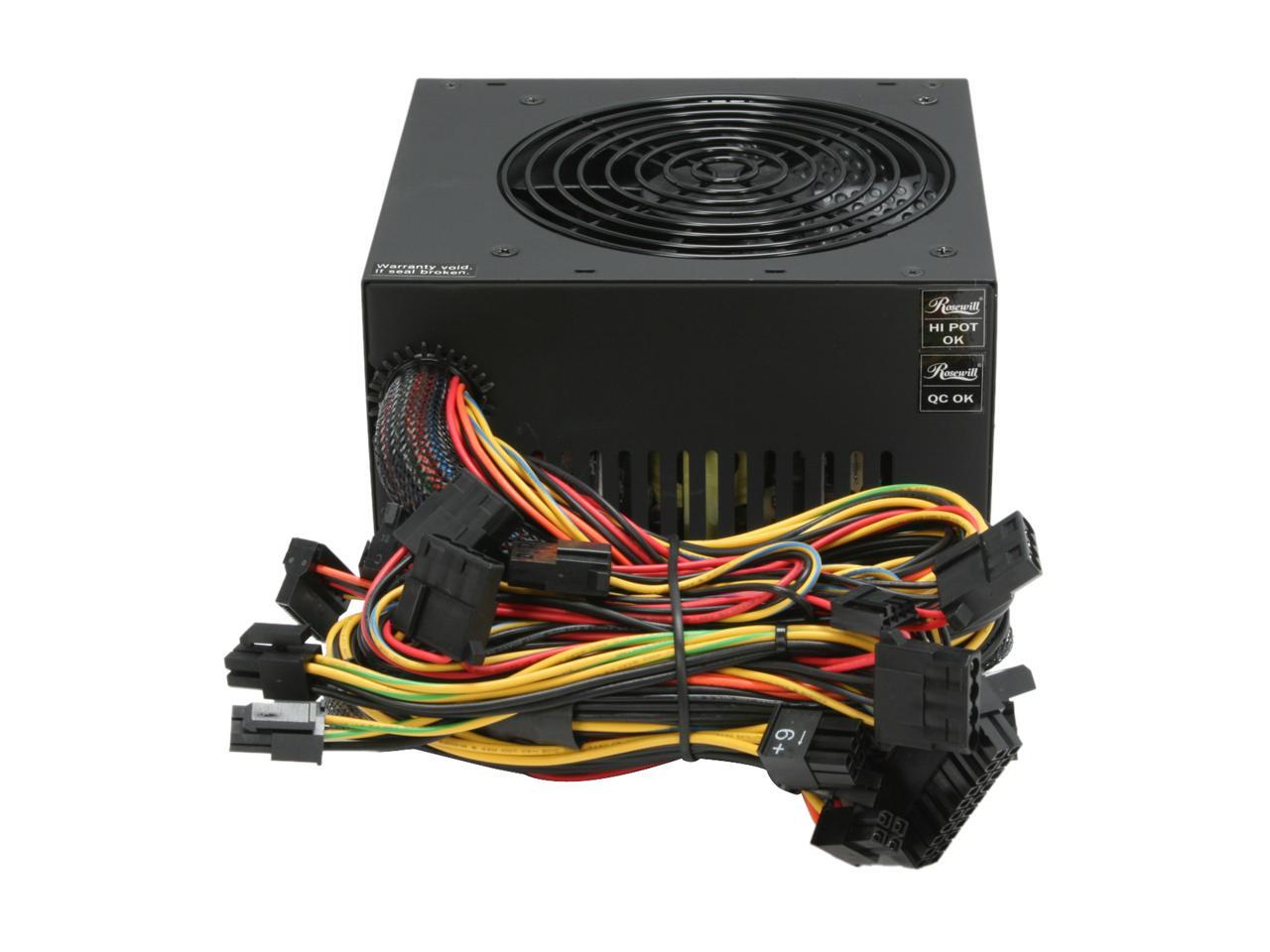

| Connectors | 1 x 20+4Pin Main Connector 1 x 4+4Pin ATX12V/EPS12V Connector 1 x 6Pin PCI-E Connector 1 x 6+2Pin PCI-E Connector 6 x 4Pin Peripheral Connector 6 x 5Pin SATA Connector 1 x 4Pin Floppy Connector |
|---|---|
| Features | Supports ATX12V v2.3 & EPS12V v2.91 standards Supports both Intel and AMD Systems Four 12V rails provide independent reliable power Active power Factor Correction(PFC) provides clean and reliable power to your system Universal AC input 90~264V automatically scans and detects the correct voltage SLI Ready – 1x 6pin & 1x 6+2pin Connectors 12V Combined Output 492W (41A) 3.3V, 5V Combined Output 140W 3.3V, 5V, 12V Combined Output 511.5W 1x Silent 120mm Golf Fan with Auto Fan Speed Control for better silence Black Coating Housing Mesh sleeving on all cables for easier cable routing and better ventilation Over Temperature/Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components |
| Date First Available | October 07, 2008 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-575-9885
- Support Email: techsupport@rosewill.com
- Support Website
- View other products from Rosewill
LOADING...



































Pros: With the energy star rating, it's nice to know that this thing is going to be efficient, which to me means I'm getting the best performance for my $$. Also, this comes with every configuration of connector imaginable, with multiple connectors being convertible, ie. 12V 4-pin with a matching 12V 4-pin that will interlock together if you actually need a 12V 8-pin connection (which I did).
Cons: In one case having the versatile connections was annoying, but it's more a case of how the motherboard was laid out. Also, my butcher's hands might have played a role in my complaint, which really isn't much of a complaint at all.
Overall Review: With the Energy Star rating and the overall versatility of the connections, this PSU was an amazing deal for the price. I would highly recommend this to anyone doing a non-gaming build, or a gaming build that doesn't need 10,000W of power. 5 Eggs, no hassles!
