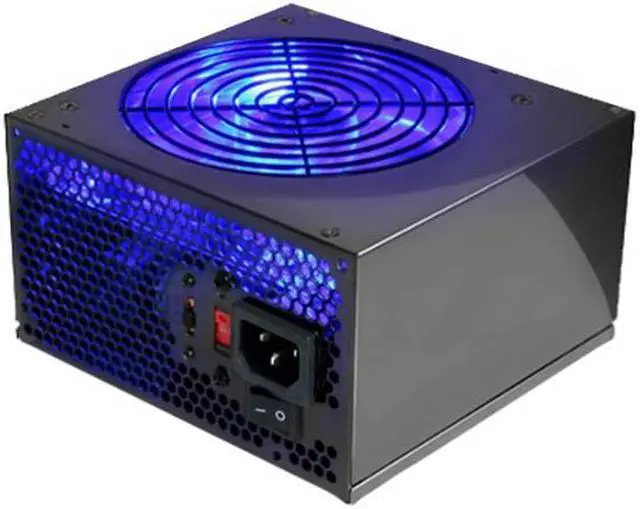

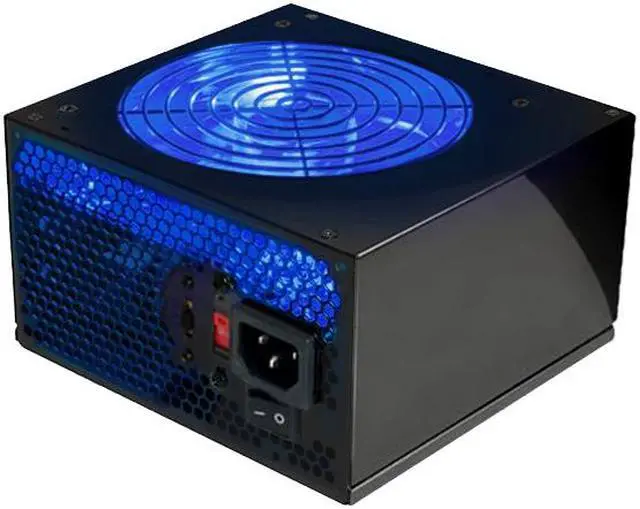

Rosewill RP500 500W ATX12V v1.3/ EPS12V Power Supply

OUT OF STOCK.
  • ATX12V v1.3/ EPS12V
  • 115/ 230 V
Specs
Reviews

Learn more about the Rosewill RP500

Model
Brand Rosewill
Model RP500
Details
Type ATX12V v1.3/ EPS12V
Maximum Power 500W
Fans Silent 120mm Ball-bearing Fan with Blue LED
PFC No
Main Connector 24Pin
+12V Rails Single
PCI-Express Connector 1 x 6-Pin
SATA Power Connector 4
SLI No
CrossFire No
Modular No
Hold-up Time 16ms min.
Efficiency > 70%
Over Voltage Protection +3.3V +5V +12V
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A/5.5A

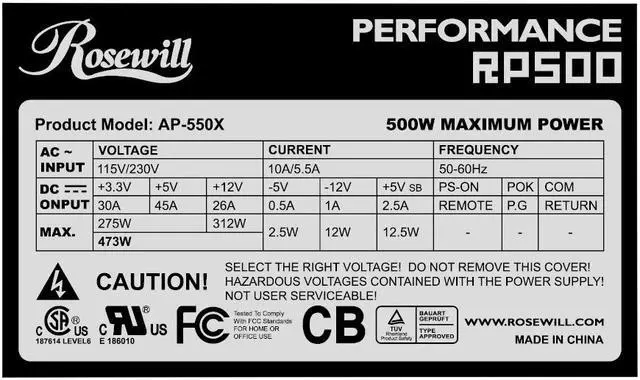

Output +3.3V@30A, +5V@45A, +12V@26A, -5V@0.5A, -12V@1A, +5VSB@2.5A
MTBF 100k hours at max. load, normal line and 25°C
Approvals CSA, CB, TUV, FCC, UL
Dimensions 5.91" x 3.39" x 5.51"
Weight 2.2 lbs.
Features

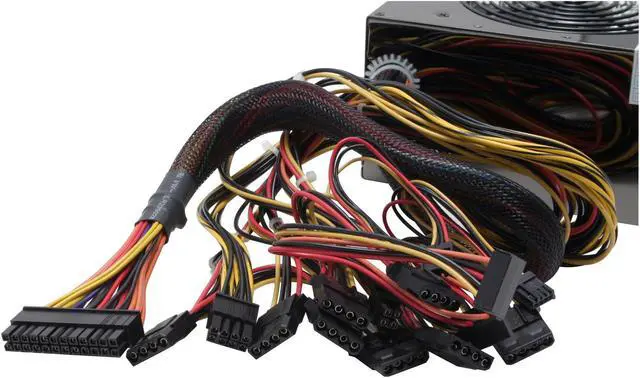

Connectors 1x 20+4-Pin Main Connector
1x 4+4-Pin ATX12V/EPS12V Connector
1x 6-Pin PCI-E Connector
6x 4-Pin Peripheral Connector
4x 5-Pin SATA Connector
2x 4-Pin Floppy Connector
Features Black Chrome Mirror Finish
Honey Comb Structure
Fan Speed Control Sensor
Fan Speed Control Switch (low, auto, and high)
Support both Intel and AMD Systems
Shielding Tube on main power cables
Black connectors
Built-in inrush current, over temperature, over current, and over voltage protection circuits
Switching power supply

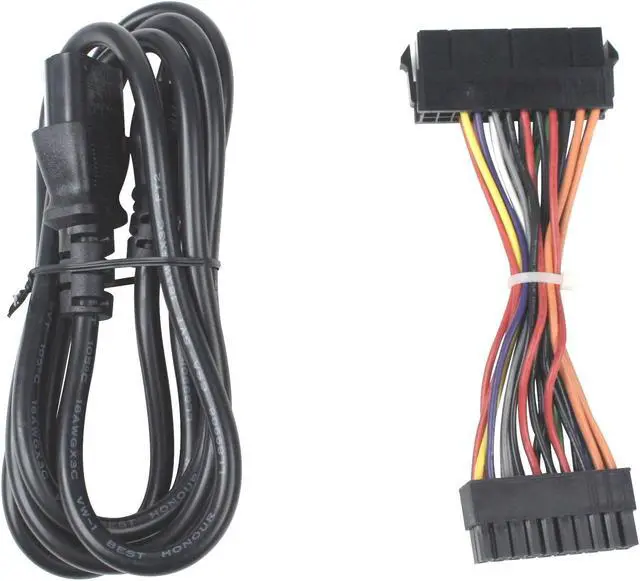

24Pin to 20Pin adapter
Additional Information
Date First Available November 18, 2004
