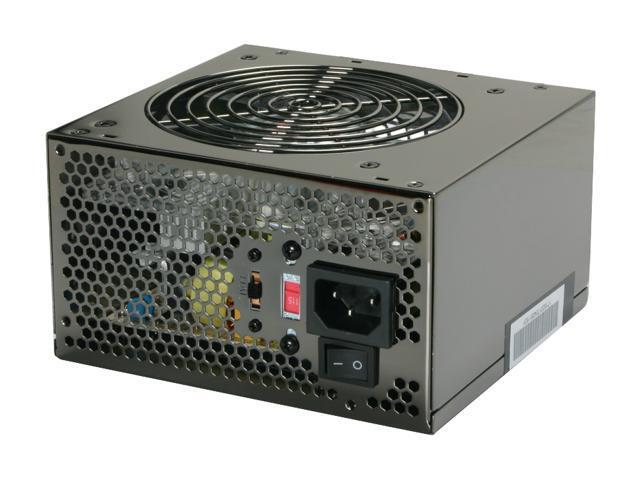

Rosewill RP550-2 550W ATX12V v2.01 Power Supply

OUT OF STOCK.
  • ATX12V v2.01
  • 115/ 230 V
Specs
Reviews

Learn more about the Rosewill RP550-2

Model
Brand Rosewill
Model RP550-2
Details
Type ATX12V v2.01
Maximum Power 550W

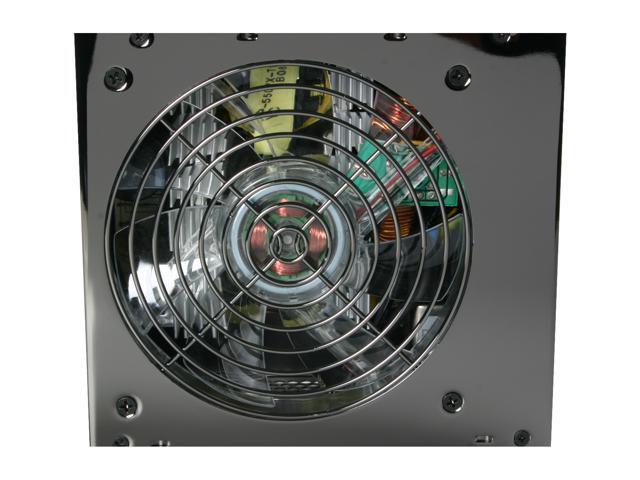

Fans 1 x Silent 120mm Ball-bearing Blue LED Fan
PFC No
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 1 x 6-Pin
SATA Power Connector 4
SLI No
CrossFire No
Modular No
Hold-up Time > 16ms
Efficiency > 72%
Over Voltage Protection +3.3V, +5V, +12V1, +12V2
Overload Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A/ 5.5A

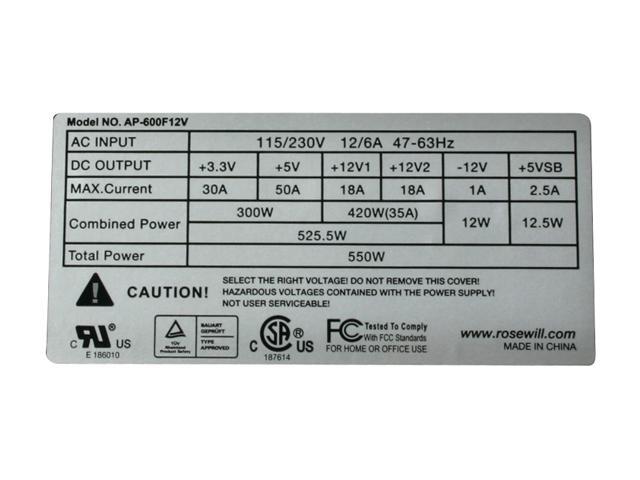

Output +3.3V@30A, +5V@50A, +12V1@18A, +12V2@18A, -12V@1A, +5VSB@2.5A
MTBF 100k hours at 25°C, max. load, nominal input
Approvals CSA,UL,TUV, FCC
Dimensions 5.91" x 3.39" x 5.51"
Weight 2.3 lbs.
Features

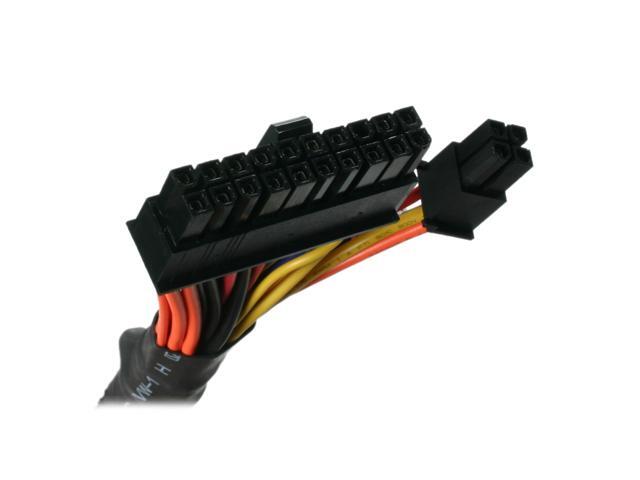

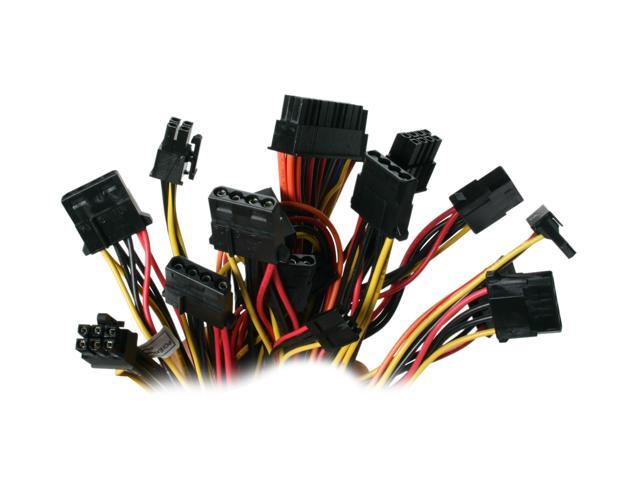

Connectors 1x 20+4-Pin Main Connector
1x 4+4-Pin ATX12V/EPS12V Connector
1x 6-Pin PCI-E Connector
6x 4-Pin Peripheral Connector
4x 5-Pin SATA Connector
Features Complies with ATX12V v2.01 Version
Dual 12V Rails provide independent reliable power
Supports both Intel and AMD Systems
Silent 120mm Ball-bearing Blue LED Fan
Fan Speed Control Switch (low, auto, and high)

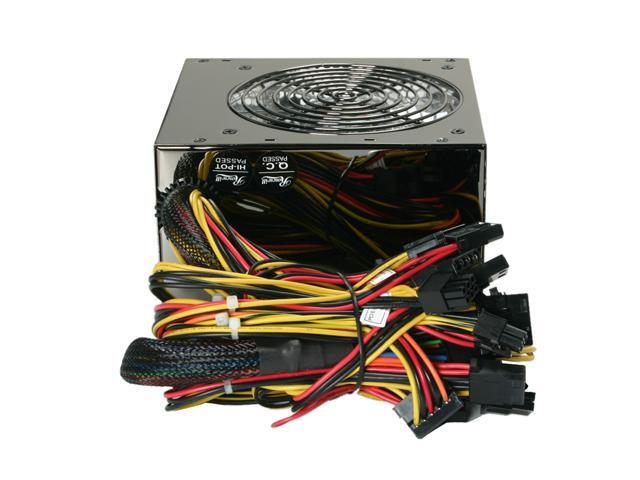

Mesh sleeving on main cable for easier cable routing and better ventilation
Black Chrome Mirror Finish
Built-in inrush current, over temperature/current/voltage protection circuits
Safety & EMI Approval: CSA, UL, TUV, FCC
