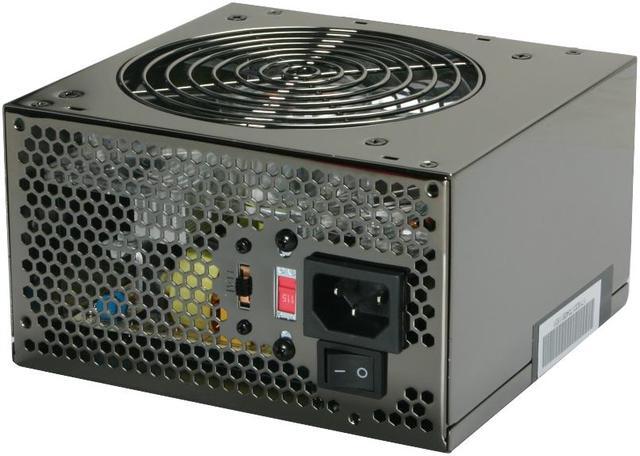

Brand | Rosewill |
---|---|
Model | RP550-2 |
Type | ATX12V v2.01 |
---|---|
Maximum Power | 550 W |

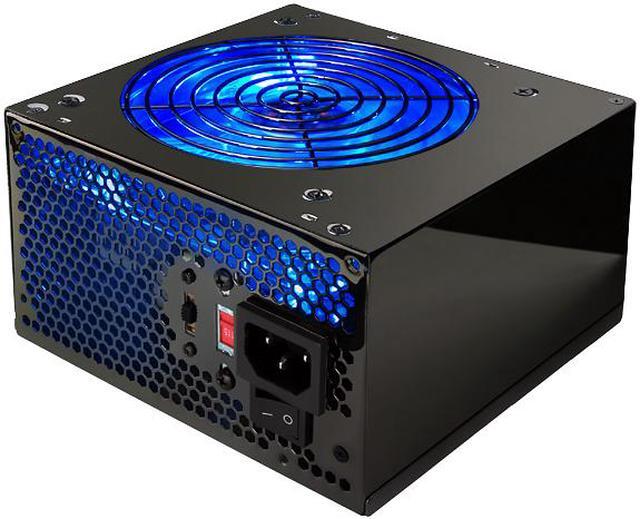

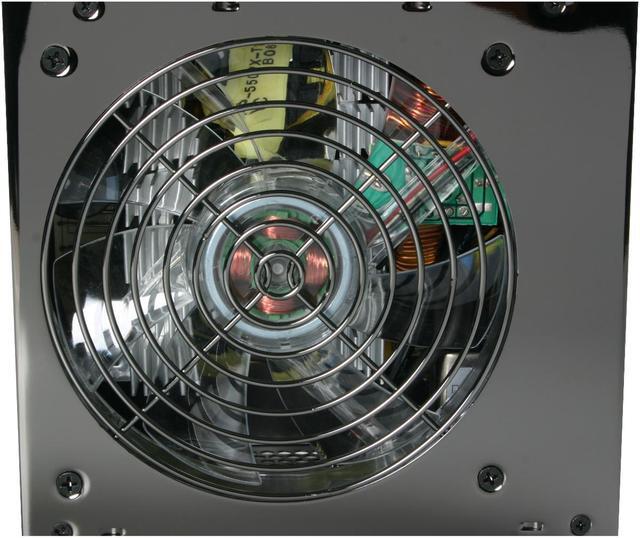

Fans | 1 x Silent 120mm Ball-bearing Blue LED Fan |
PFC | No |

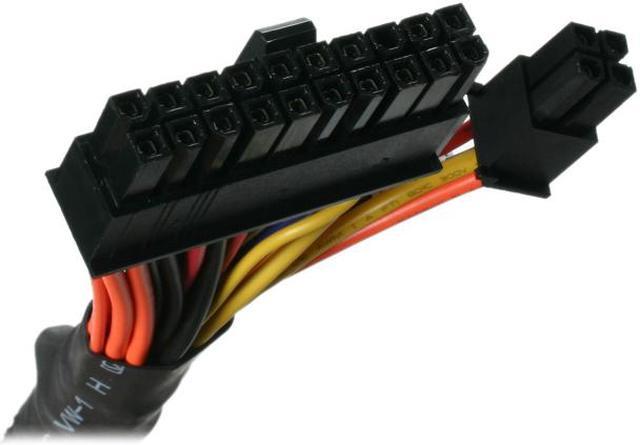

Main Connector | 20+4Pin |
+12V Rails | 2 |
PCI-Express Connector | 1 x 6-Pin |
SATA Power Connector | 4 |
SLI | No |
CrossFire | No |
Modular | No |
Hold-up Time | > 16ms |
Efficiency | > 72% |
Over Voltage Protection | +3.3V, +5V, +12V1, +12V2 |
Overload Protection | Yes |

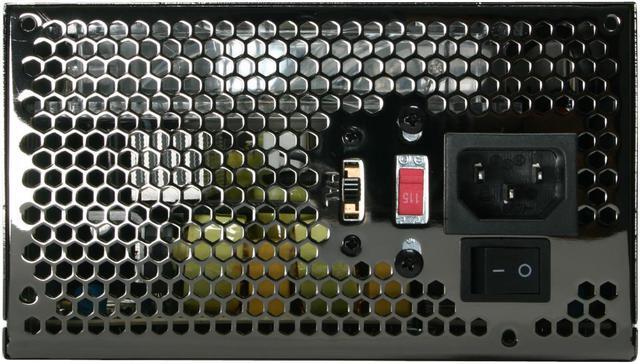

Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A/ 5.5A |

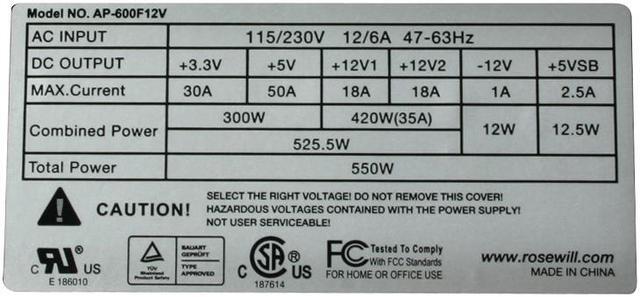

Output | +3.3V@30A, +5V@50A, +12V1@18A, +12V2@18A, -12V@1A, [email protected] |
MTBF | 100k hours at 25°C, max. load, nominal input |
Approvals | CSA,UL,TUV, FCC |

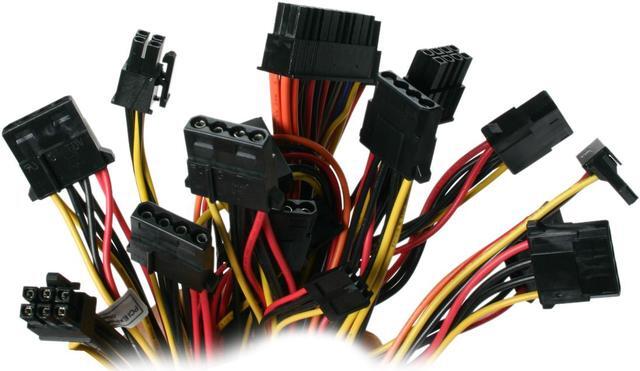

Connectors | 1x 20+4-Pin Main Connector 1x 4+4-Pin ATX12V/EPS12V Connector 1x 6-Pin PCI-E Connector 6x 4-Pin Peripheral Connector 4x 5-Pin SATA Connector |

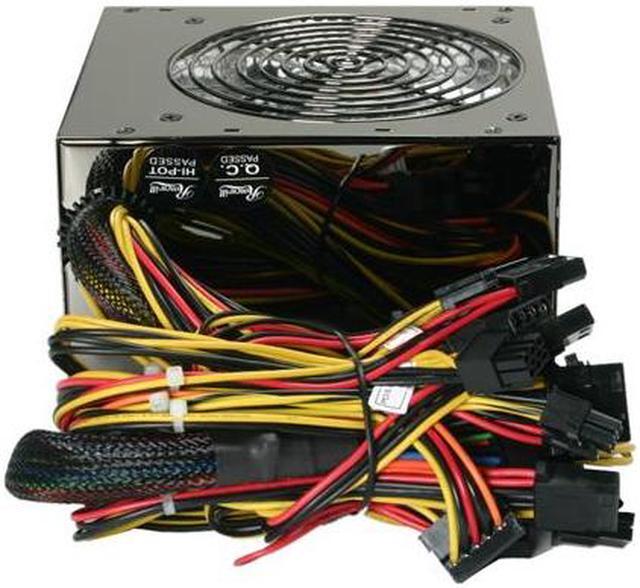

Features | Complies with ATX12V v2.01 Version Dual 12V Rails provide independent reliable power Supports both Intel and AMD Systems Silent 120mm Ball-bearing Blue LED Fan Fan Speed Control Switch (low, auto, and high) Mesh sleeving on main cable for easier cable routing and better ventilation Black Chrome Mirror Finish Built-in inrush current, over temperature/current/voltage protection circuits Safety & EMI Approval: CSA, UL, TUV, FCC |
---|
Dimensions | 5.91" x 3.39" x 5.51" |
---|---|
Weight | 2.3 lbs. |
Date First Available | September 22, 2005 |
---|
