Rosewill Stallion Series RD600N-2DB-SL-BK 600W ATX Form Factor 12V V2.2 / SSI standard EPS 12V SLI Ready Active PFC Active PFC Power Supply - SLI Ready
- ATX Form Factor 12V V2.2 / SSI standard EPS 12V
- Auto Switching ( 90-264V ) 50/60 Hz
- +3.3V@24A, +5V@30A, +12V1@22A, +12V2@22A, [email protected], [email protected]
Specs
Reviews (92)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Rosewill RD600N-2DB-SL-BK
| Brand | Rosewill |
|---|---|
| Series | Stallion Series |
| Model | RD600N-2DB-SL-BK |
| Type | ATX Form Factor 12V V2.2 / SSI standard EPS 12V |
|---|---|
| Maximum Power | 600 W |
| Fans | Dual 8 cm ball bearing fans with LED light |
| PFC | Active |

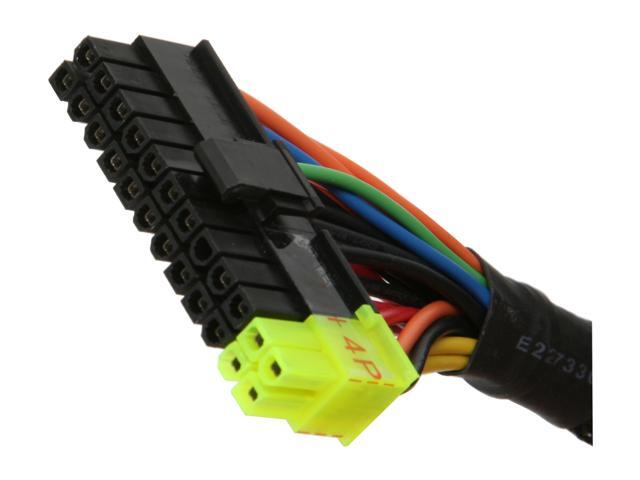

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SATA Power Connector | 4 |
| SLI | SLI Ready |
| Modular | No |
| Efficiency | >80% |
| Over Voltage Protection | Yes |
| Input Voltage | Auto Switching ( 90-264V ) |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 6A @ 230V |
| Output | +3.3V@24A, +5V@30A, +12V1@22A, +12V2@22A, [email protected], [email protected] |
| MTBF | 100k hours at max. load, normal line and 25°C |
| Approvals | UL, FCC |
| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 1 x 12V (8Pin) 4 x peripheral Quick release connectors 4 x SATA 2 x Floppy 2 x PCI-E |
| Features | Built-in inrush current, over temperature, over current, and over voltage protection circuits Shielding Tube on main power cable to Reduce EMI Smart and Slient Fans with Temperature Sensor 3 Years Warranty Unit Weight: 6.2 lbs. |
|---|
| Dimensions | 5.91" x 5.51" x 3.35"(WxDxH) |
|---|
| First Listed on Newegg | July 02, 2007 |
|---|
