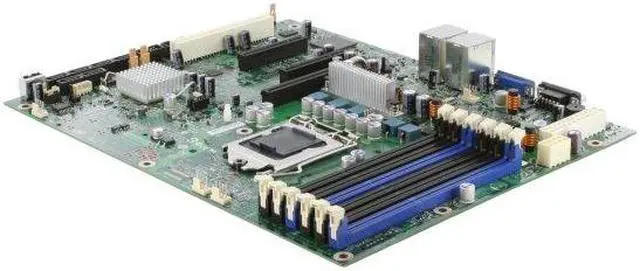

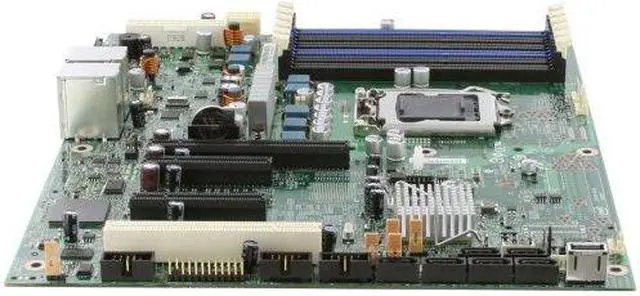

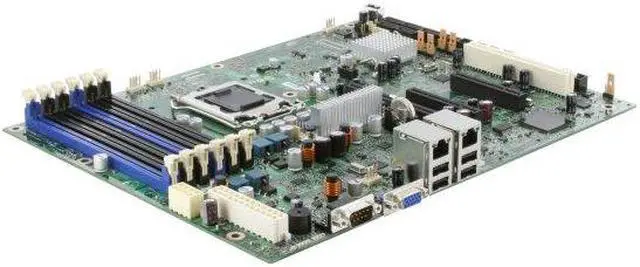

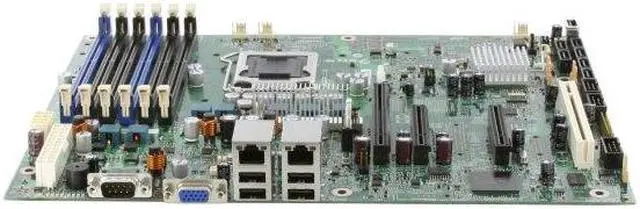

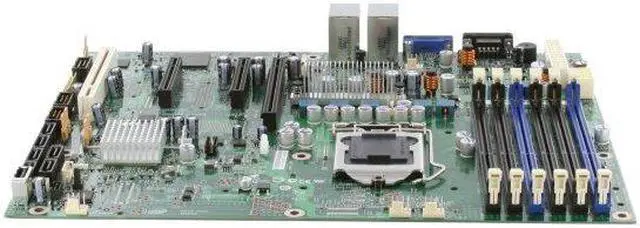

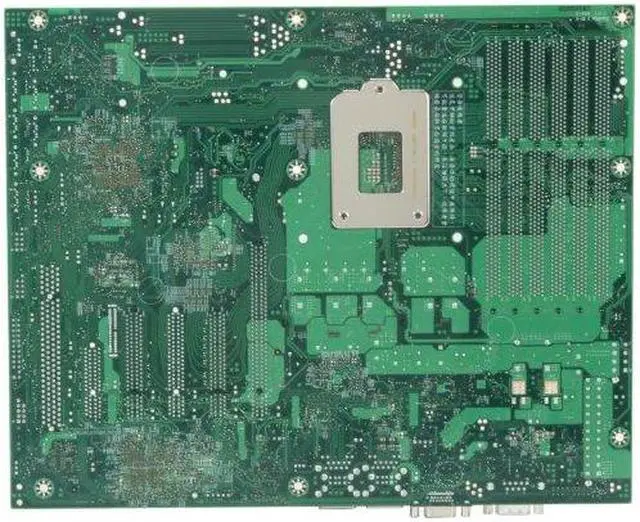

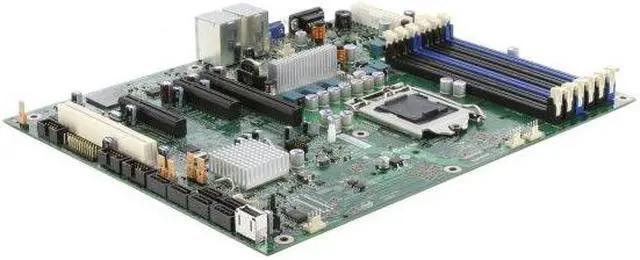

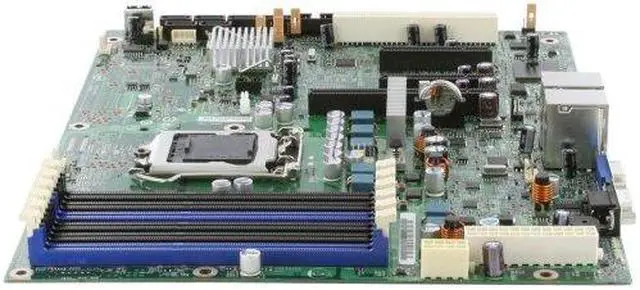

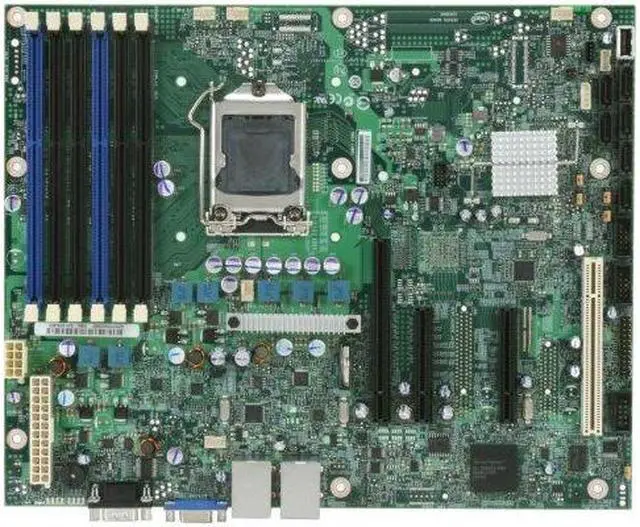

Learn more about the Intel S3420GPLC
Model| Brand | Intel |
|---|
| Model | S3420GPLC |
|---|
Supported CPU| CPU Socket Type | LGA 1156 |
|---|
| CPU Type | Intel Xeon 3400 series |
|---|
Chipsets| North Bridge | Intel 3420 |
|---|
Memory| Number of DDR3 Slots | 6 x 240pin |
|---|
| DDR3 Standard | DDR3 1333 |
|---|
| Registered | Yes |
|---|
Expansion Slots| PCI Express x8 | 1 x PCI Express 2.0 x8 slot (x16 mechanical) 1 x PCI Express 2.0 x8 slot (x8 mechanical) |
|---|
| PCI Express x4 | 1 x PCI Express x4 slot (x8 mechanical) |
|---|
| PCI Slots | 1 x PCI Slot |
|---|
Storage Devices| SATA | 6 x SATA 3.0Gb/s |
|---|
| SATA RAID | 0/1/5/10 |
|---|
Onboard Video| Onboard Video Chipset | Server Engine LLC Pilot II |
|---|
Onboard LAN| LAN Chipset | Intel 82574L |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|
| Second LAN Chipset | Intel 82578DM |
|---|
| Second LAN Speed | 10/100/1000Mbps |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|
Rear Panel Ports| COM | 1 |
|---|
| Video Ports | D-Sub |
|---|
| USB 1.1/2.0 | 4 x USB 2.0 |
|---|
Dimensions| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
Additional Information| First Listed on Newegg | April 10, 2019 |
|---|
