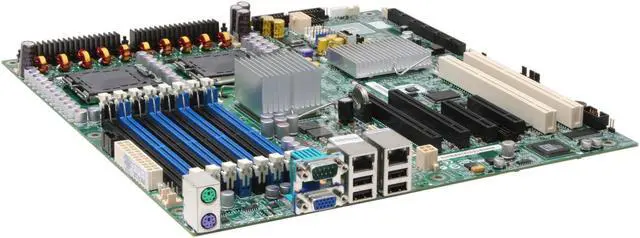

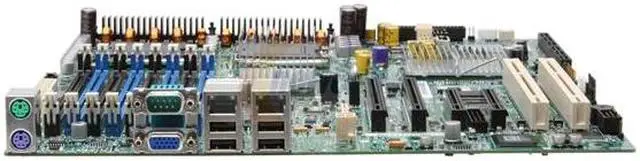

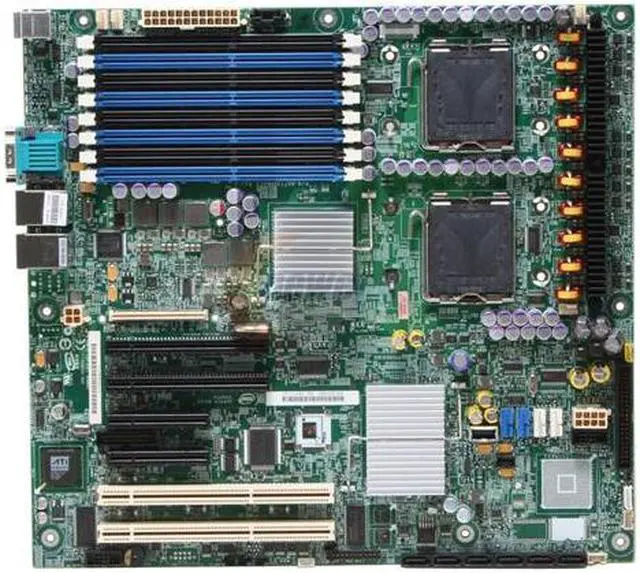

Intel S5000PSLSATAR SSI EEB 3.6 (Extended ATX) Server Motherboard Dual LGA 771 Intel 5000P
- Dual LGA 771
- Intel 5000P
- 8 x 240Pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel S5000PSLSATAR
| Brand | Intel |
|---|---|
| Model | S5000PSLSATAR |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 1333/1066 MHz |
| North Bridge | Intel 5000P |
|---|---|
| South Bridge | Intel 6321 ESB |
| Number of DDR2 Slots | 8 x 240Pin |
|---|---|
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | FBDIMM |
| PCI Express x8 | 2 x PCI Express x8 |
|---|---|
| PCI Express x4 | 2 x PCI Express x4 |
| PCI-X Slots (64-bit 133MHz) | 1 |
| PCI-X Slots (64-bit 100MHz) | 1 |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | ATI ES1000 |
|---|
| LAN Chipset | Intel 82563EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82563EB |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | SSI EEB 3.6 (Extended ATX) |
|---|---|
| Dimensions (W x L) | 13.0" x 12.0" |

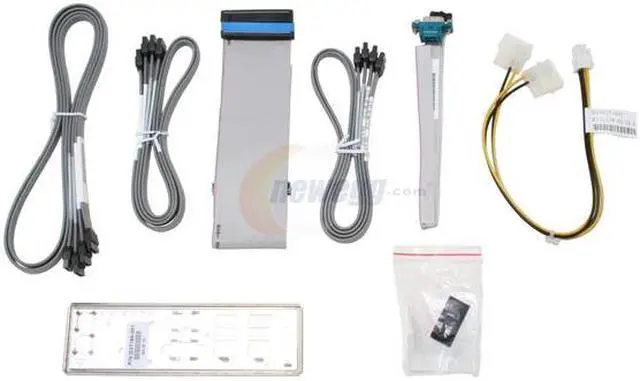

| Package Contents | S5000PSLSATAR 3 x SATA Cable IDE Cable Power Cable Rear I/O Panel Shield COM Port Bracket User Manual |
|---|
| First Listed on Newegg | March 27, 2009 |
|---|
