Intel S5520HC Dual LGA 1366 Intel 5520 Tylersburg SSI EEB Dual Intel Xeon 5500 Series Server Motherboard
See more "dual cpu motherboard"
In stock.
Ships from United States.
Most customers receive within 5-9 days.
- Dual LGA 1366
- Intel 5520
- 12 x 240pin
Overview
Specs
Reviews

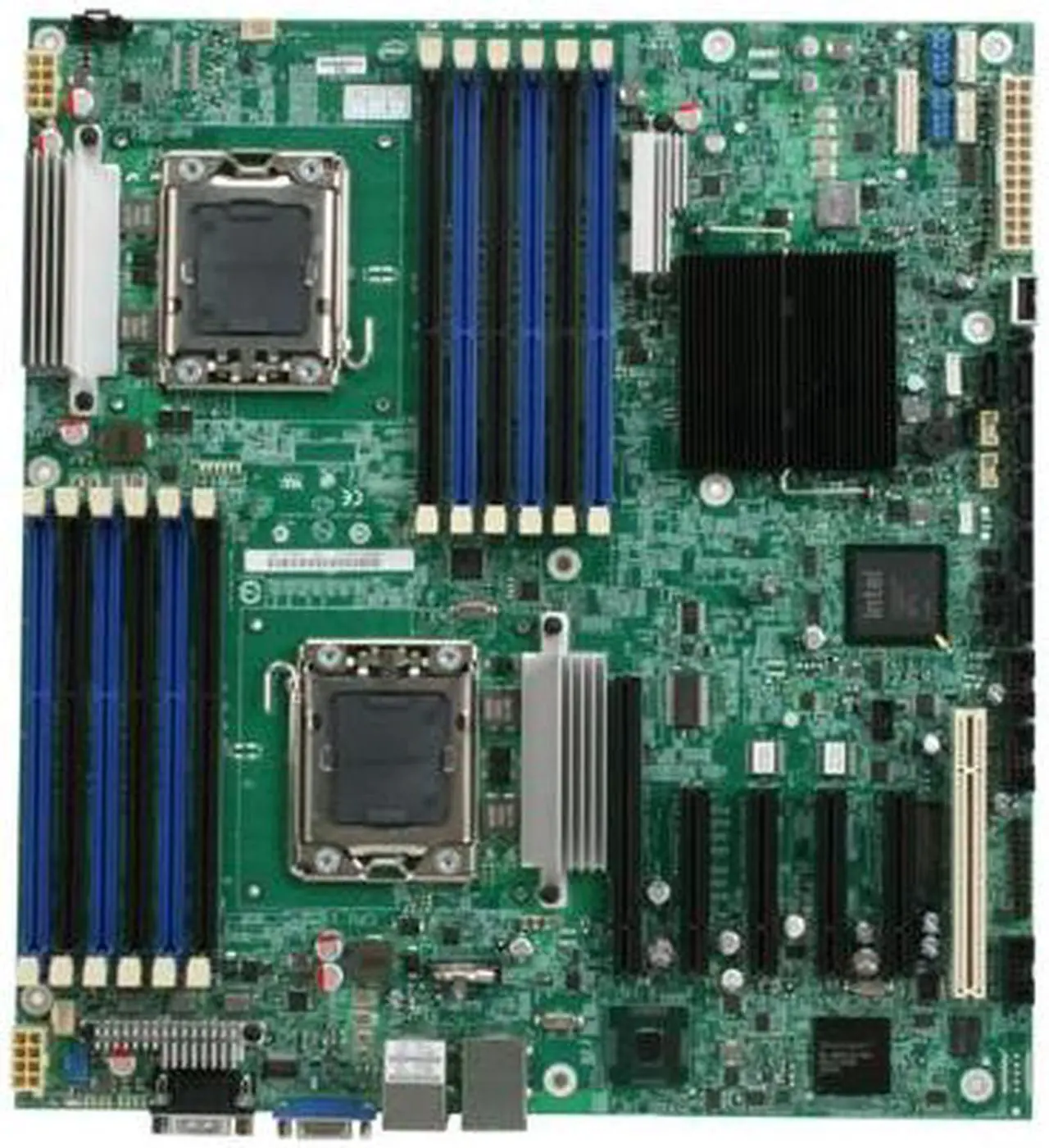

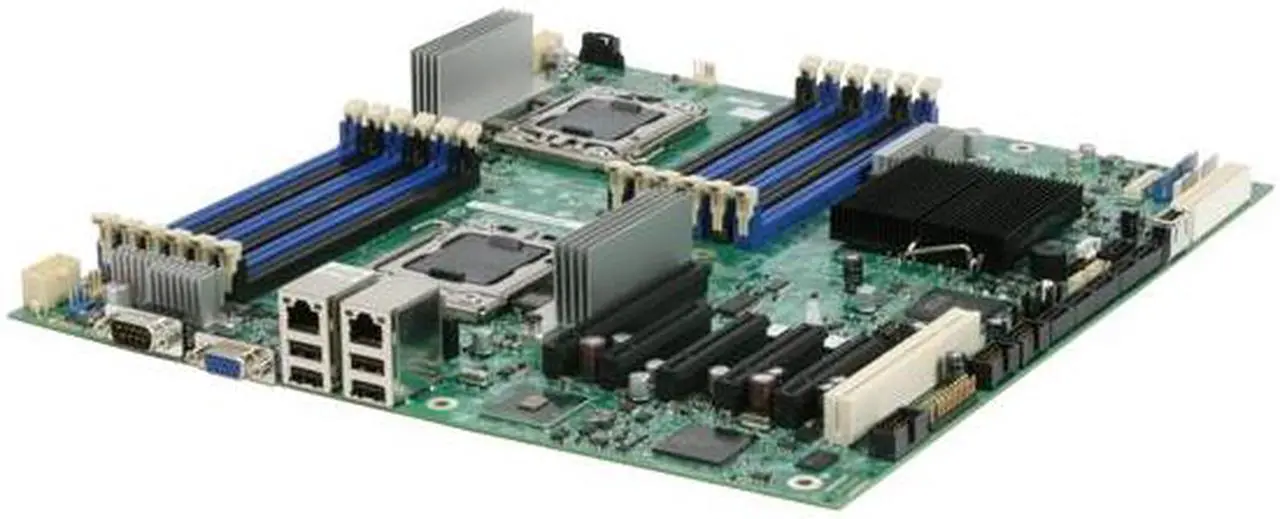

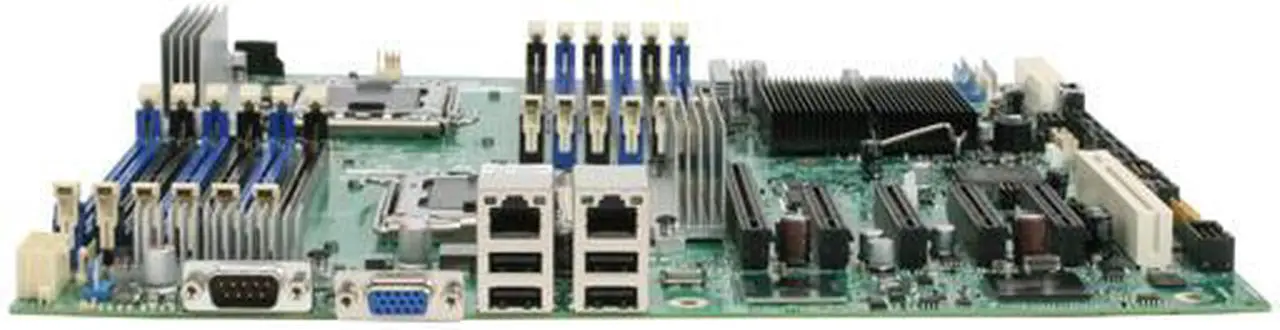

The Intel S5520HC server motherboard supports up to two Dual-Core/Quad-Core Intel Xeon 5500 series processors at 4.8 GT/s, 5.8 GT/s, and 6.4 GT/s bus speeds via the Intel QuickPath Interconnect to handle even the most demanding business applications. With 12 DIMM slots, it can support up to 6-channel registered or unbuffered DDR3 800/1066/1333MHz memory to significantly improve the computing capability.
This motherboard has a full range of expansion choices: it features the next-generation PCI Express 2.0 x8 slots include x16 mechanical and x8 mechanical modes; it protects your investment with one PCI Express 1.0 x4 slot and one PCI 32/33MHz slot as flexible options for server utilization.
The server motherboard has integrated 6 SATAII 300MB/s ports which have built-in RAID functions for better data protection. This really benefits small- to medium-sized business that needs scalability and affordability combined.
Supports Dual Intel Xeon 5500 SeriesWith dual LGA 1366 sockets, the Intel S5520HC server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
Scalable DDR3 MemoryTwelve 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 10 and optional RAID 5 support provide flexible, scalable storage and enhanced data security.
Flexible ExpansionWith four PCI Express 2.0 x8, one PCI Express 1.0 x4 and one PCI slot, the Intel S5520HC supports a wide range of add-on cards for superior expandability.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI 2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state. Optional KVM support and dedicated 3rd NIC provide a complete remote management upgrade solution.
Supports Dual Intel Xeon 5500 SeriesWith dual LGA 1366 sockets, the Intel S5520HC server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
Scalable DDR3 MemoryTwelve 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 10 and optional RAID 5 support provide flexible, scalable storage and enhanced data security.
Flexible ExpansionWith four PCI Express 2.0 x8, one PCI Express 1.0 x4 and one PCI slot, the Intel S5520HC supports a wide range of add-on cards for superior expandability.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI 2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state. Optional KVM support and dedicated 3rd NIC provide a complete remote management upgrade solution.Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by PQ Electronics Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-916-377-7000
- Support Website
- View other products from Intel
LOADING...
LOADING...
Pros: I built two systems using; Intel SC5520HC, two Xeon E5520, Intel BXSTS100A heat sinks, and Super Talent OX FTM16GL26H 2.5” 16 GB SDD, ALL from NewEgg. I used 24 GB Kingston KVR1066D3E7SK3/6GI unbuffered ECC DIMMs DDR3 1066Mhz memory, which is very economical and is the fastest memory the E5520 processer can use plus it’s on the Intel approved list. I also used the Intel SC5650DP chassis approved for the SC5520HC MOB. The build went flawless and quick. The Intel Quick Start Guides were excellent and tells you step by step how everything connects and integrates between the chassis and MOB. NewEgg’s order processing and shipping is very fast and they keep you informed via e-mail every step of the way.
Cons: You need to update the MOB BIOS which also integrates the MOB with the chassis. No big deal really.
Overall Review: When I first started up the system, the chassis fan speed was full blast. The Intel Quick Start Guide tells you to update the MOB BIOS which also integrates the MOB with the chassis. After that process, the fan speed settled down to nice and quiet. With the high MTBF of the SSD, I only used one and because I’m running VMware ESX with iSCSI SAN storage, I didn’t require much local storage. The SSD is very fast which allows ESX to boot very fast. The system rocks and I’m ready for ESX 4.
