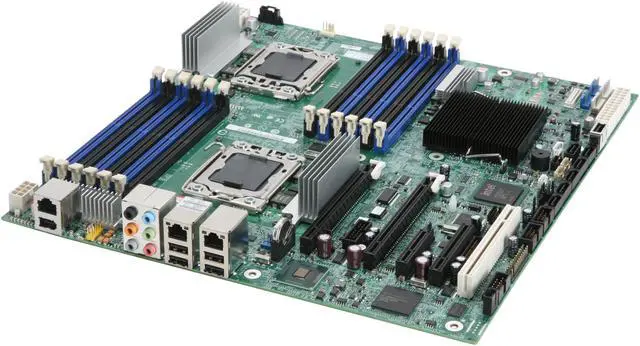

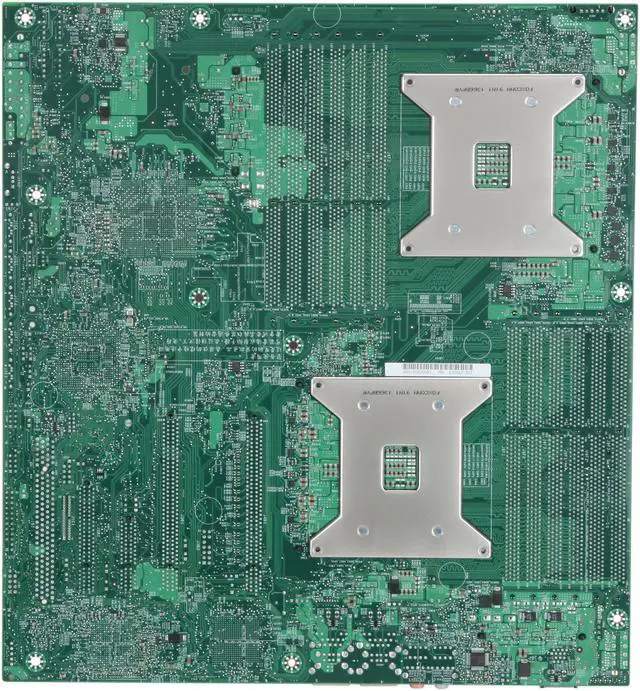

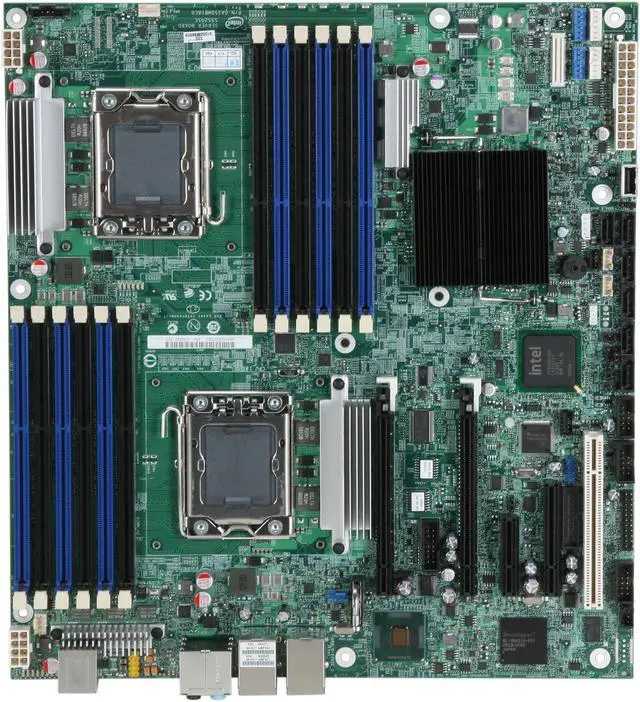

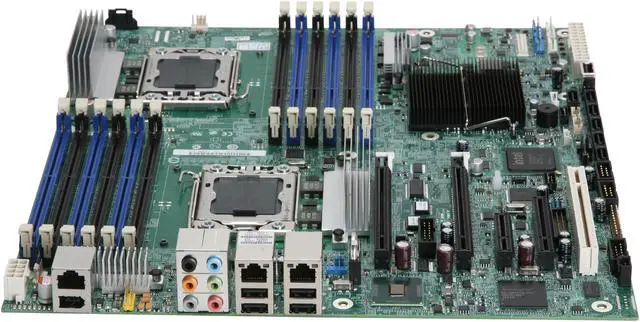

Intel S5520SCR SSI EEB Server Motherboard Dual LGA 1366 Intel 5520 DDR3 1333
- Dual LGA 1366
- Intel 5520
- 12 x 240pin
Specs
Reviews (8)
Learn more about the Intel S5520SCR
| Brand | Intel |
|---|---|
| Model | S5520SCR |
| CPU Socket Type | Dual LGA 1366 |
|---|---|
| CPU Type | Dual Intel Xeon 5600/5500 Series |
| QPI | Up to 6.4 GT/s |
| North Bridge | Intel 5520 |
|---|---|
| South Bridge | Intel ICH10R |
| Number of DDR3 Slots | 12 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | 192GB |
| PCI Express 2.0 x16 | 2 |
|---|---|
| PCI Express x4 | 1 x PCI Express 1.0 x4 slot (x8 mechanical shared with optional SAS module) |
| PCI Express x1 | 1 x PCI Express x1 (x4 mechanical) |
| PCI Slots | 1 x PCI Slot |
| SATA | 6 x SATA 3.0Gb/s |
|---|
| LAN Chipset | Intel 82575EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| USB 1.1/2.0 | 4 x USB 2.0 |
|---|---|
| IEEE 1394 | 1 x IEEE 1394a |
| Form Factor | SSI EEB |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | March 18, 2010 |
|---|
