SABRENT 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD Maximum Performance Solid State Drive (Latest Version) (SB-ROCKET-NVMe4-500)

(299)(11) Write a Review
  • NVMe M.2 PCIe Gen4 x4 Interface. PCIe 4.0 Compliant / NVMe 1.3 Compliant.

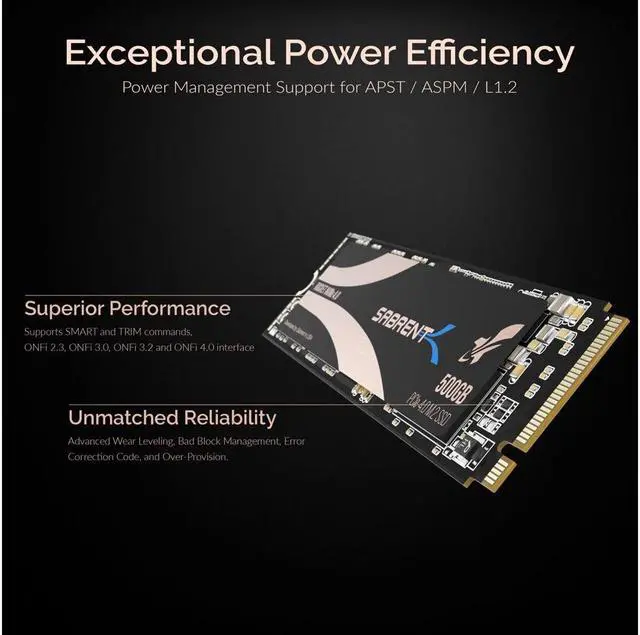

  • Power Management Support for APST / ASPM / L1.2.
  • Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
  • Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
  • All Sabrent SSDs come with FREE Sabrent Acronis True Image for Sabrent Software for easy Cloning.
  • For those who require a specific sector size to clone their existing SSDs: A newly released Sabrent utility enables users to re-format the Rocket drive and choose the sector size of their liking, either 512-bytes or 4K bytes.
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Overview
Specs
Reviews (299)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
The Sabrent 500GB Rocket Nvme PCIe 4.0 M. 2 2280 Internal SSD Extreme Performance Solid State Drive (SB-ROCKET-NVMe4-500) delivers all the advantages of flash disk technology with PCIe Gen 4.0 x4 interface. Based on Toshibas BiCS4 96L TLC NAND Flash memory, its performance speeds can reach up to 5000 MB/s (read) and 2500 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 2500 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.

The Sabrent 500GB Rocket Nvme PCIe 4.0 M. 2 2280 Internal SSD was designed using PCIe 4.0 which allows for speeds of up to 5000 MB/s (read) and 2500 MB/s (write), significantly faster than PCIe 3.0.
Note: In order to take advantage of these speeds, a PCIe Gen4 motherboard is REQUIRED. Otherwise it will be at pcie gen 3 speed at max of 3500MB/s. When installing any NVMe PCIe 4.0 SSD directly onto a PCIe Gen4 Motherboard a Heatsink is required to dissipate the heat generated by the drives extreme speed levels to avoid thermal throttling and maximize performance. The Sabrent 500GB Rocket Nvme PCIe 4.0 M. 2 2280 Internal SSD is backward compatible with PCIe 3.0. Using a Gen 3 PCIe motherboard will enable the user to reach speeds of up to 3400 MB/s (read) and 2000 MB/s (write).
Features: NVMe M. 2 PCIe Gen4 x4 Interface. PCIe 4.0 Compliant / NVMe 1.3 Compliant. Power Management Support for APST / ASPM / L 1.2. Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface. Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision. Upgradeable Firmware.
Package contents: 500GB Rocket Nvme PCIe 4.0 M. 2 2280 SSD. User Manual.
Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe
Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe

Enter the next generation of data storage technology. The Rocket NVMe delivers amazing speeds, unmatched reliability, and capacity options up to 2TB. Experience a faster, cooler, and quieter computer. Unleash yourcreativity with the Sabrent Rocket.

Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe

*For 1TB and 2TB versions

Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe

Based on Toshiba’s BiCS4 96L TLC NAND Flash memory, its performance speeds can reach up to 5000 MB/s (read) and 4400 MB/s (write) when using a PCIe Gen4 motherboard.

Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe
Model # SB-ROCKET-NVMe4-500 SB-ROCKET-NVMe4-1TB SB-ROCKET-NVMe4-2TB
Capacity 500GB 1000GB 2000GB

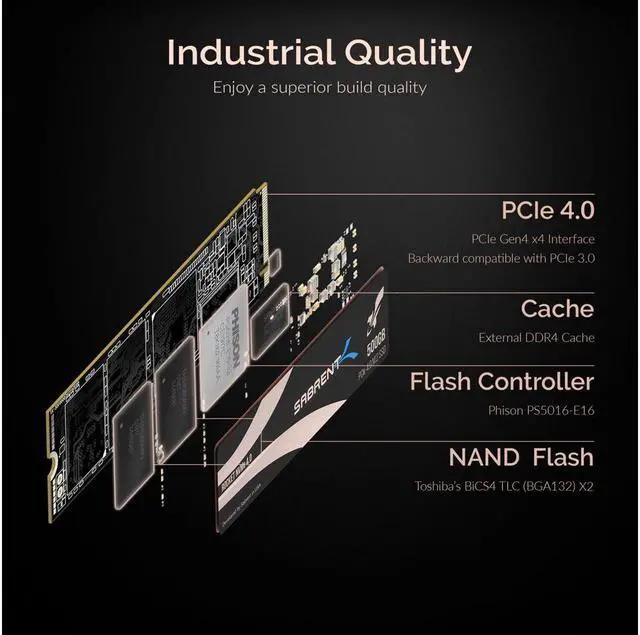

NAND 3D BiCS4 3D BiCS4 3D BiCS4
Controller PS5016-E16 PS5016-E16 PS5016-E16
Interface PCIe Gen4 x 4 PCIe Gen4 x 4 PCIe Gen4 x 4
Certifications CE,FCC,BSMI,RoHS,VCCI CE,FCC,BSMI,RoHS,VCCI CE,FCC,BSMI,RoHS,VCCI
Max Sequential Read 5000 (MB/s) 5000 (MB/s) 5000 (MB/s)
Max Sequential Write 2500 (MB/s) 4400 (MB/s) 4400 (MB/s)
Random 4K QD32 (IOPS) Read*1 400K 750K 750K
Random 4K QD32 (IOPS) Write*1 550K 750K 750K
Random 4K QD32 (IOPS) Read*2 400k 600K 600K
Random 4K QD32 (IOPS) Write*2 500K 500K 500K
Power Consumption R/W 6.2 / 4.6 6.1 / 5.9 6.7 / 6.6
Power Supply 3.3V 3.3V 3.3V
Form Factor M.2 2280 M.2 2280 M.2 2280
Height 3.7mm 3.7mm 3.7mm
Width 22mm 22mm 22mm
Length 80mm 80mm 80mm
Operating Temperature 0~70°C 0~70° 0~70°
Storage Temperature -40~85°C -40~85°C -40~85°C
MTBF 1,700,000 1,700,000 1,700,000
Shock Resistant 1500G 1500G 1500G
Data Correction LDPC LDPC LDPC
Warranty 5 years with registration 5 years with registration 5 years with registration
TBW 850 1800 3600

*1. Performance is based on Intel Gen3 Z270 + PLDA Gen4 switch.
*2. Performance is based on AMD Gen4 X570 + 8 Core CPU.

Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe

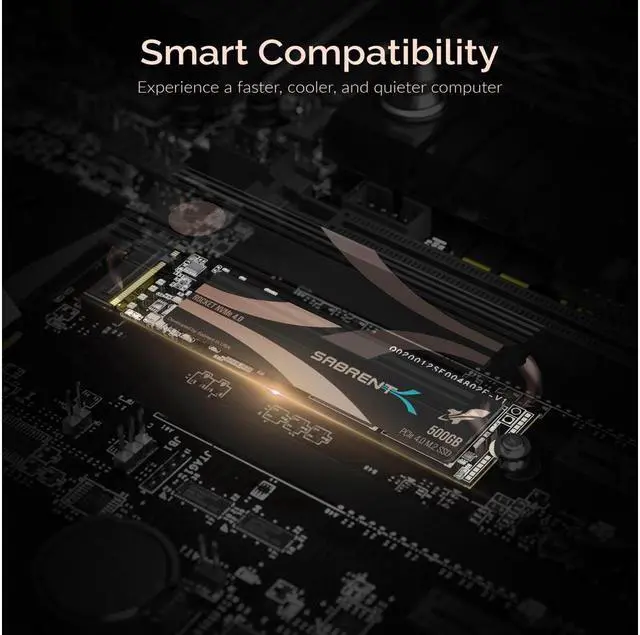

Experience a faster, quieter, cooler computer
