Product Description:

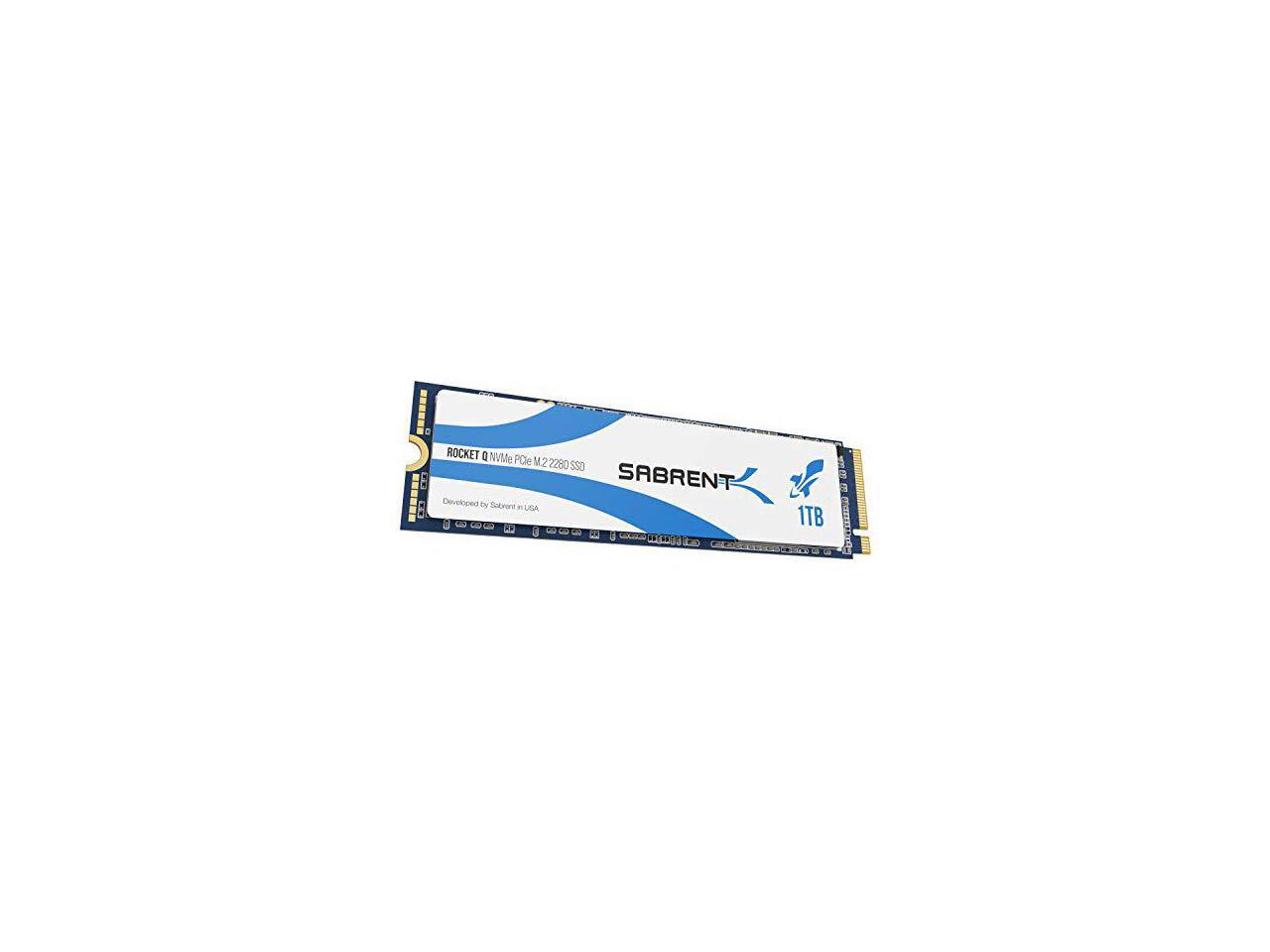

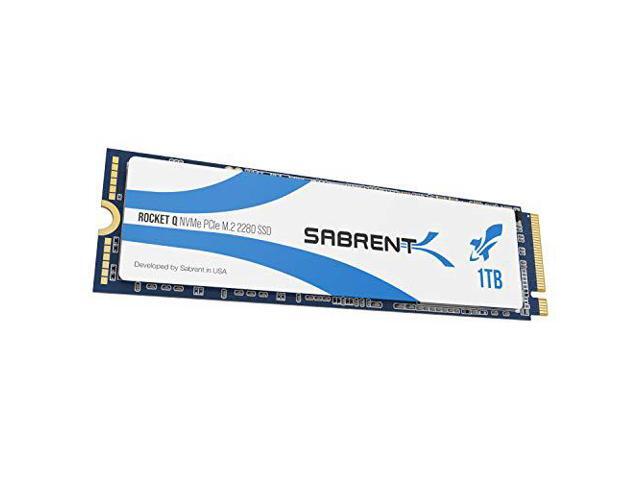

SABRENT Rocket Q 1TB NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive R/W 3200/2000MB/s (SB-RKTQ-1TB)
The SABRENT 1TB ROCKET Q NVMe PCIe M.2 2280 Internal SSD High-Performance Solid State Drive (SB-RKTQ-1TB) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.

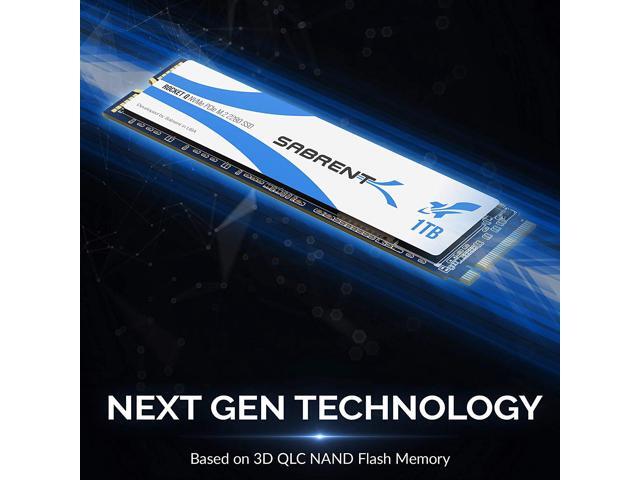

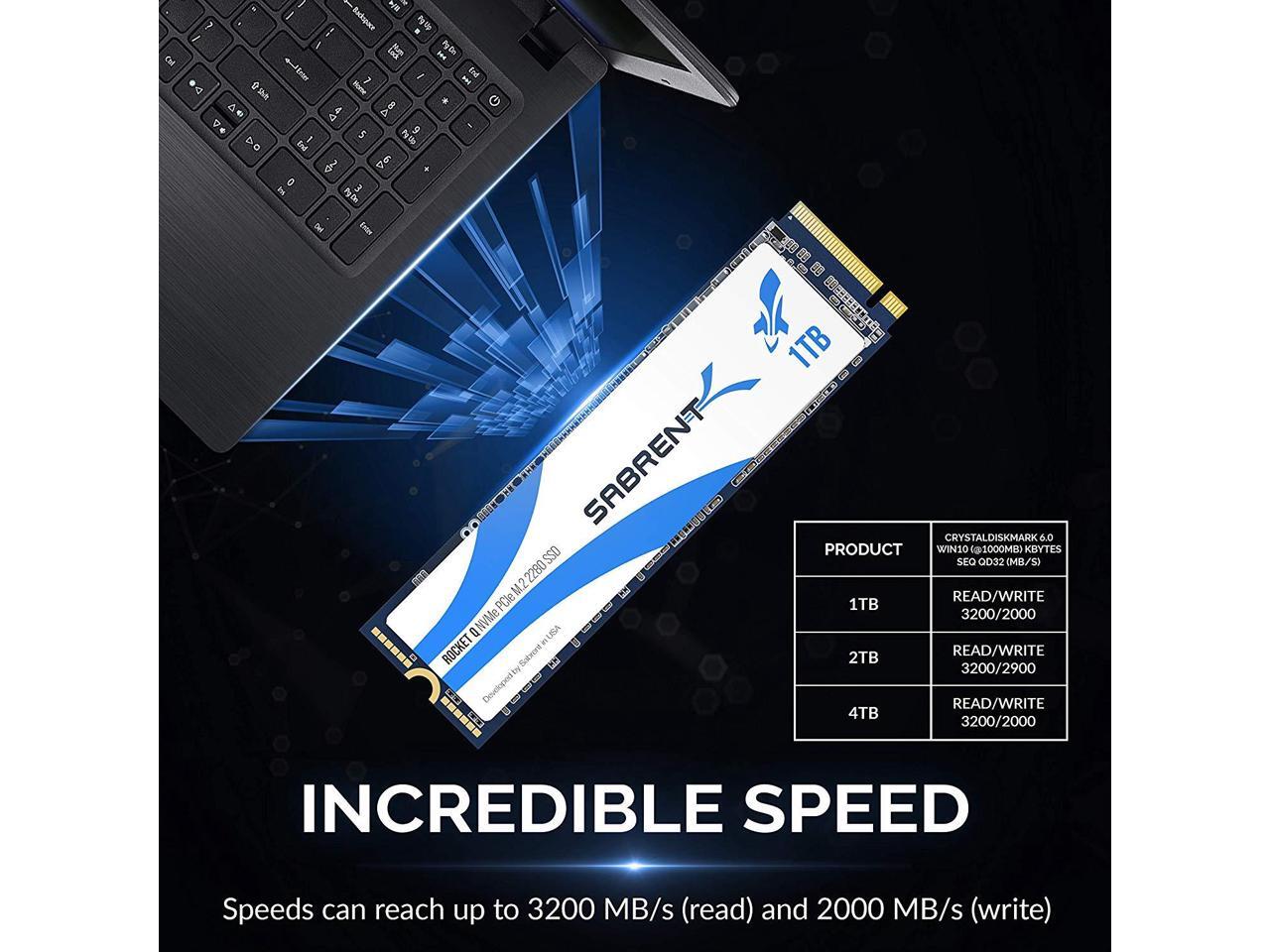

Based on 3D QLC NAND Flash memory, its performance speeds can reach up to 3200 MB/s (read) and 2000 MB/s (write).

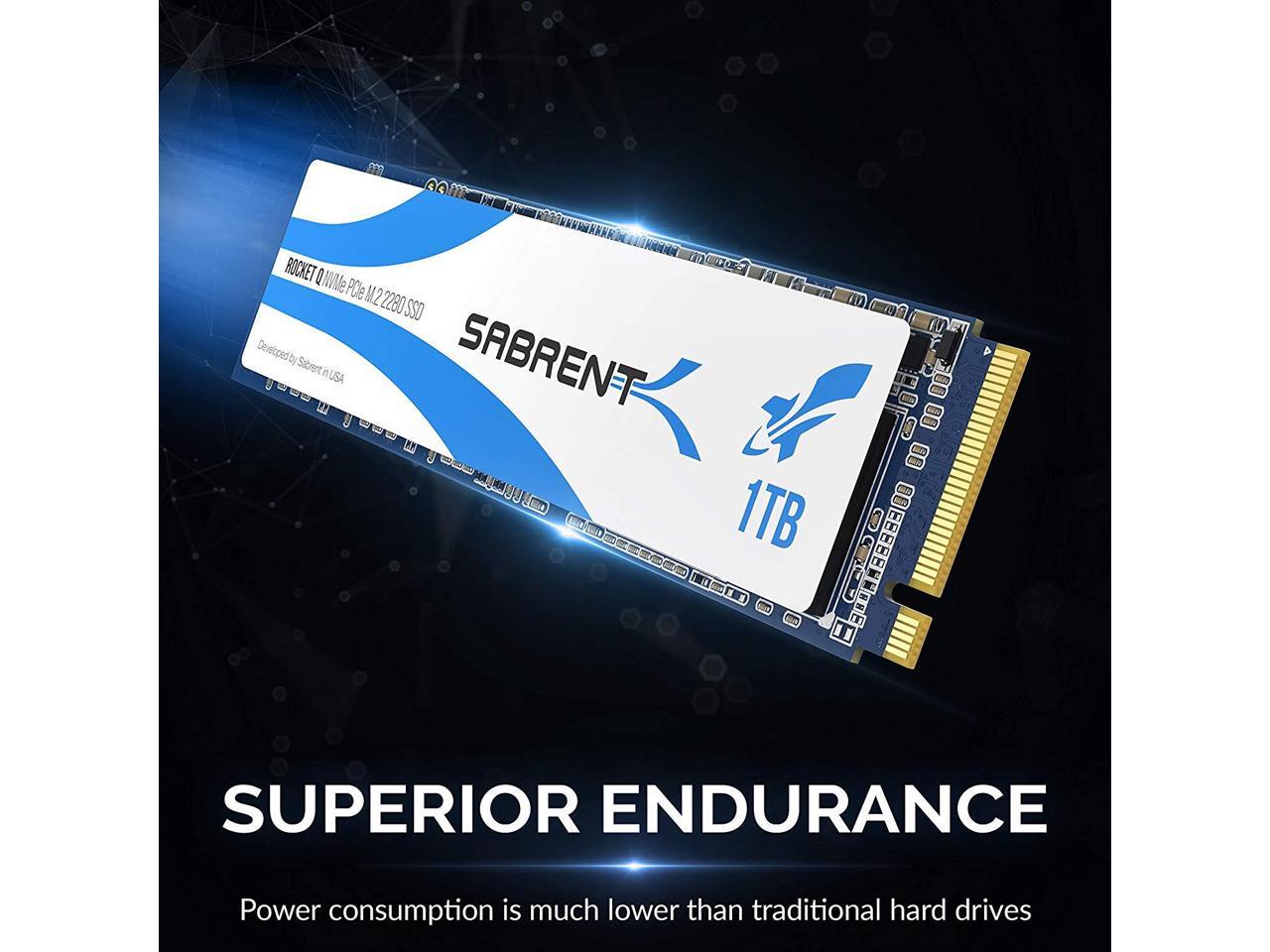

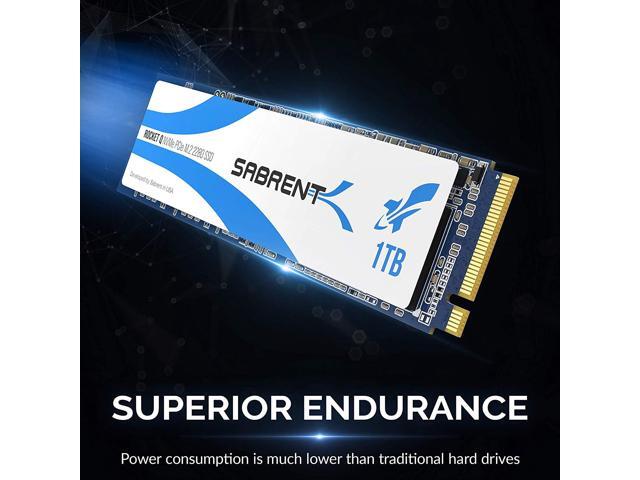

Power consumption is much lower than traditional hard drives, making it the best-embedded solution for new systems.
Features:
- M.2 PCIe Gen3 x 4 Interface
- Built to the PCIe 3.1 specification / NVMe 1.3 Compliant
- Power Management Support for APST / ASPM / L1.2
- Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface
- Advanced Wear Leveling, Bad Block Management, and Over-Provision
- Upgradeable Firmware
- All SABRENT SSDs come with FREE SABRENT Acronis True Image for SABRENT Software for easy Cloning, For more information please visit our website

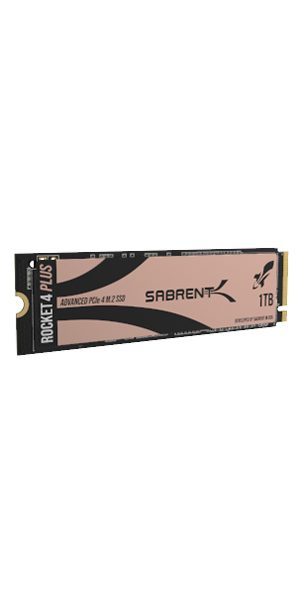

| Products | ||||||
|---|---|---|---|---|---|---|

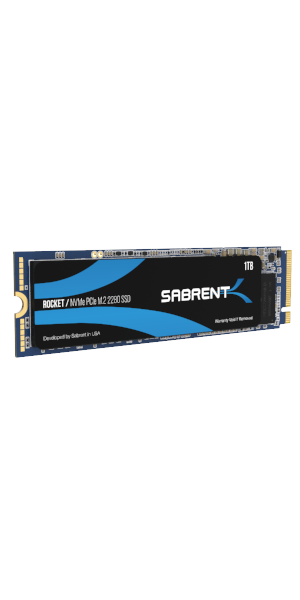

| Model: | SB-1342-1TB | SB-ROCKET-1TB | SB-RKTQ-1TB | SB-ROCKET-NVMe4-1TB | SB-RKTQ4-1TB | SB-RKT4P-1TB |
| Capacity: | 1 TB | 1 TB | 1 TB | 1 TB | 1 TB | 1 TB |
| Interface: | PCIe Gen. 3 X 4 | PCIe Gen. 3 X 4 | PCIe Gen. 3 X 4 | PCIe Gen. 4 X 4 | PCIe Gen. 4 X 4 | PCIe Gen. 4 X 4 |
| Max Sequential Read: | 2500 (MB/s) | 3400 (MB/s) | 3200 (MB/s) | 5000 (MB/s) | 4700 (MB/s) | 7000 (MB/s) |
| Max Sequential Write: | 2100 (MB/s) | 3000 (MB/s) | 2000 (MB/s) | 4400 (MB/s) | 1800 (MB/s) | 5300 (MB/s) |
| NAND: | TLC | TLC | QLC | TLC | QLC | TLC |

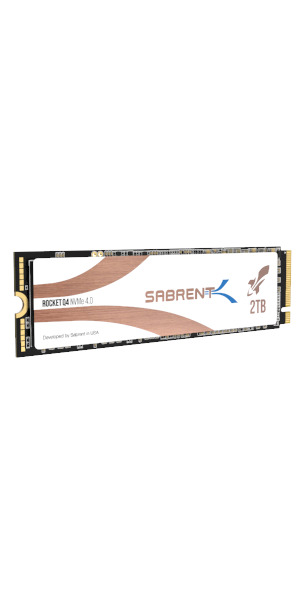

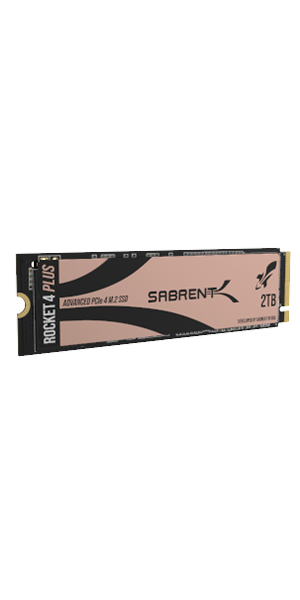

| Products | ||||||
|---|---|---|---|---|---|---|
| Model # | SB-1342-2TB | SB-ROCKET-2TB | SB-RKTQ-2TB | SB-ROCKET-NVMe4-2TB | SB-RKTQ4-2TB | SB-RKT4P-2TB |
| Capacity: | 2 TB | 2 TB | 2 TB | 2 TB | 2 TB | 2 TB |
| Interface: | PCIe Gen. 3 X 4 | PCIe Gen. 3 X 4 | PCIe Gen. 3 X 4 | PCIe Gen. 4 X 4 | PCIe Gen. 4 X 4 | PCIe Gen. 4 X 4 |
| Max Sequential Read: | 2500 (MB/s) | 3400 (MB/s) | 3200 (MB/s) | 5000 (MB/s) | 5000 (MB/s) | 7100 (MB/s) |
| Max Sequential Write: | 2100 (MB/s) | 2700 (MB/s) | 2900 (MB/s) | 4400 (MB/s) | 4400 (MB/s) | 6600 (MB/s) |
| NAND: | TLC | TLC | QLC | TLC | QLC | TLC |

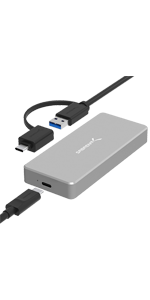

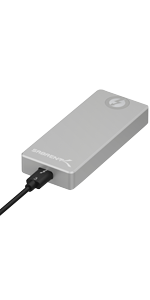

| Products | ||||||
|---|---|---|---|---|---|---|

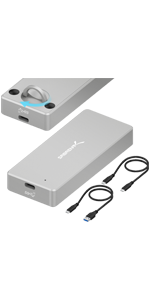

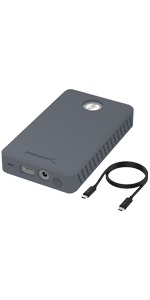

| Model # | EC-SNVE | EC-M2MC | EC-NVME | EC-WPTF | EC-T3NS | EC-T3DN |
| Capacity: | M Key & (B+M) Key | B+M Key 2242/2260 | M Key M.2 PCIE-based 2280/2260/2242/2230 | M Key M.2 SSD 2280/2260/2242/2230 | M Key M.2 SSD 2280/2260/2242/2230 | NVMe M.2 form factor compatible with sizes: 2242/2260/2280. |
| Transmission Speed: | 10 Gbps | 5 Gbps | 10 Gbps | 10 Gbps | Thunderbolt 1600 MB/s | Thunderbolt 1500 MB/s. |
| Material: | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Max Capacity: | 8TB | 8TB | 8TB | 8TB | 8TB | 8TB |
| Tool Free: | Screw set with screw driver included | Screw set with screw driver included | ||||
| Cable: | Type C - Type C Cable | Micro USB B Cable | Type C - Type A Cable Type C - Type A Adapter | Type C - Type A Cable Type C - Type C | Thunderbolt 3 cable | Thunderbolt 3 cable |
| SSD INCLUDED: | -- | -- | -- | -- | -- | -- |
