SABRENT SBT-SRD2 2-Port PCI SATA RAID Controller Host Card Adapter RAID 0/1

OUT OF STOCK.
  • RAID 0/1
  • 2 x Serial ATA 150 Internal Connectors
Specs
Reviews

Learn more about the Sabrent SBT-SRD2

Model
Brand SABRENT
Model SBT-SRD2
Details
Type SATA
Internal Connectors 2 x SATA 150
Interface PCI
Transfer Rate 1.5Gb/s
RAID RAID 0/1
Operating Systems Supported Windows 98SE / Me / NT4.0 / 2000 / XP/NT 4.0, Windows Server 2003, Linux, Novell Netware
Features
Features RAID function: Supports RAID 0 (striped), RAID 1 (mirror); Supports co-exist RAID set and Non-RAID HDD; Allows HDDs with different sizes to be configured in a RAID set
Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card
Breaks Capacity-Limit to Support HDD larger than 137GB
RAID 0 (Striping) to greatly increase the performance of data transfer by simultaneously writing data to 2 drives
Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives
Supports Spread Spectrum in receiver
Independent 256-byte FIFOs (32 bit x 64 deep) per Serial ATA channel for host reads and writes
Compliant with PCI Specification, revision 2.2
Integrated PCI DMA engines
32 bit, 33/66MHz fully compliant PCI host interfact
Acts as NON-RAID when not BIOS configured RAID
Package Contents

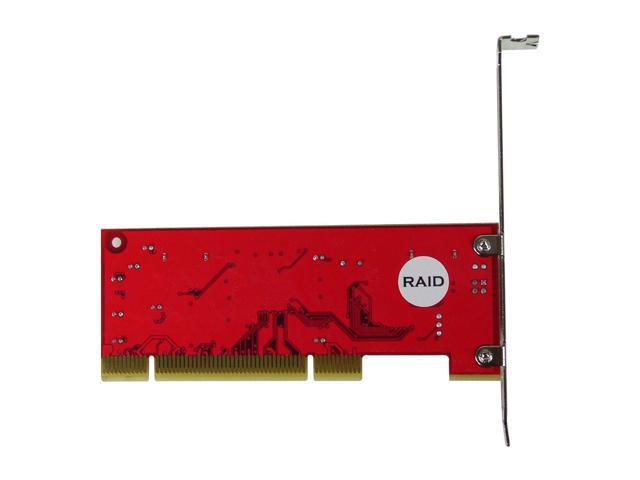

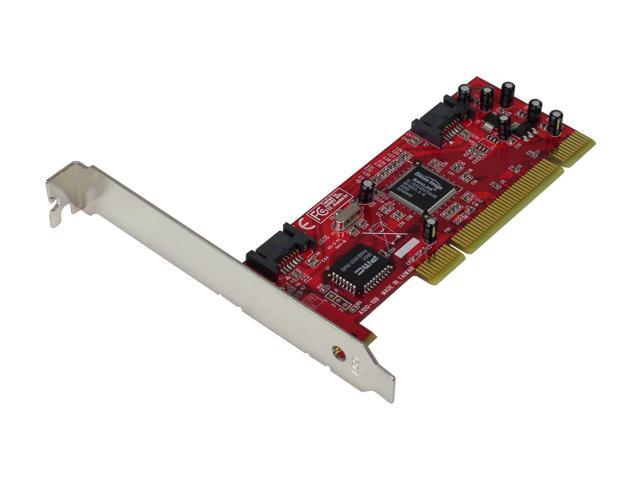

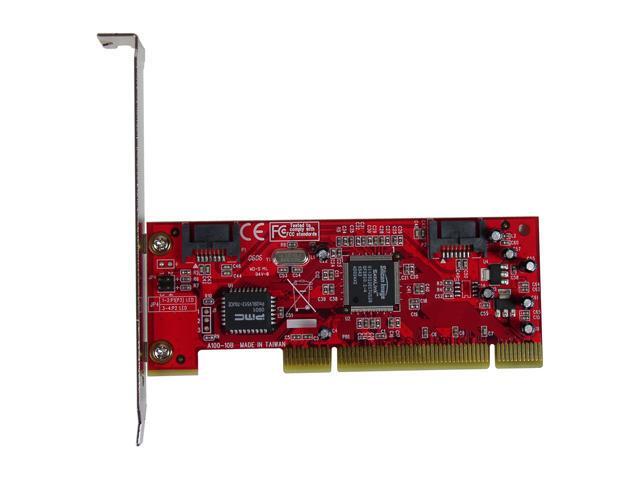

Package Contents Serial ATA 2 Port RAID PCI Controller Card

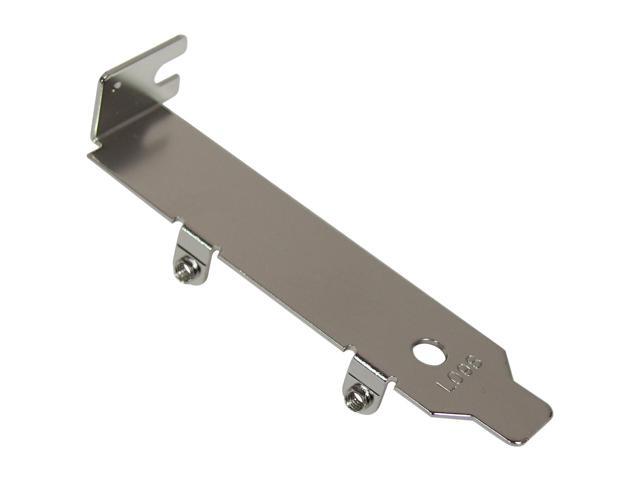

Low Profile PCI Bracket

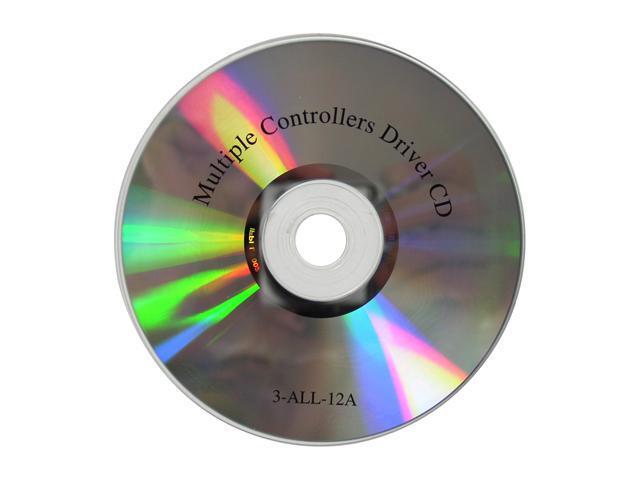

Drivers on CD
Quick Installation guide
Additional Information
Date First Available November 30, 2005
