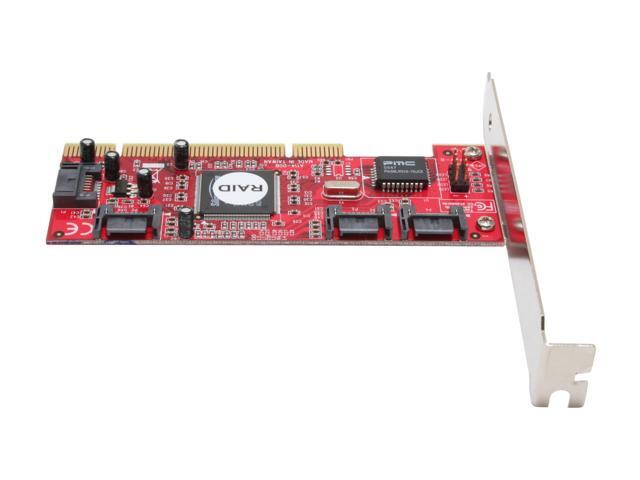

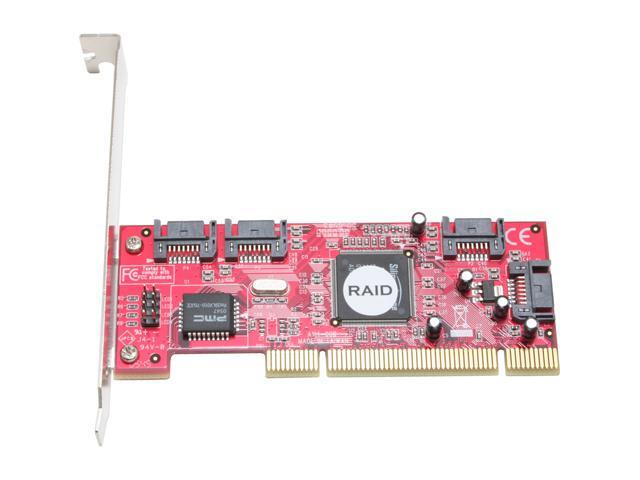

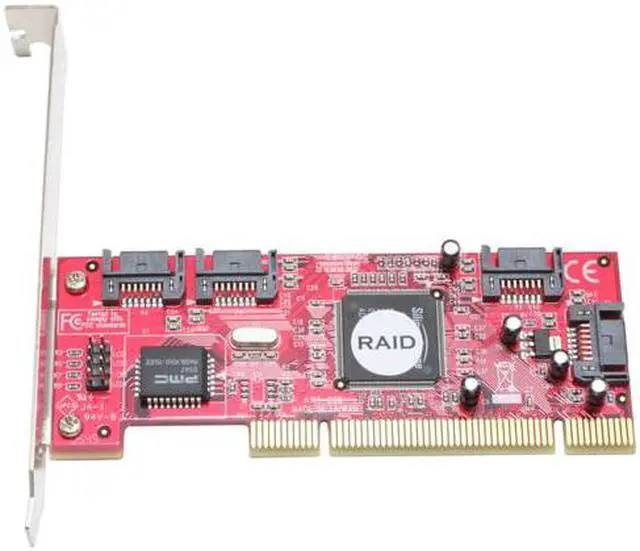

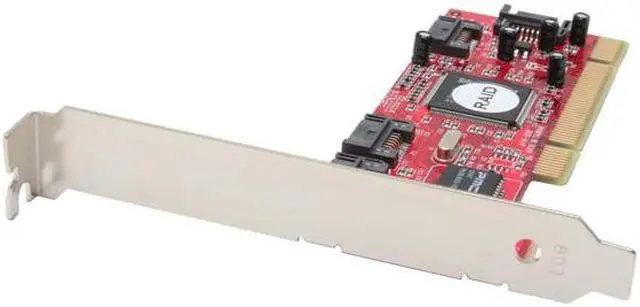

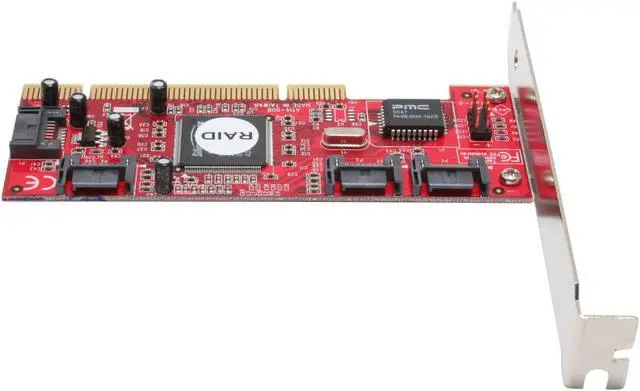

SABRENT SBT-SRD4 PCI SATA Host Card Adapter

(13) Write a Review
  • RAID 0/1/0+1/1+S
  • 4 x SATA 150 Internal Connectors
  • 1.5Gb/s
Specs
Reviews (13)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Sabrent SBT-SRD4

Model
Brand SABRENT
Model SBT-SRD4
Details
Type SATA
Internal Connectors 4 x SATA 150
Interface PCI
Transfer Rate 1.5Gb/s
RAID RAID 0/1/0+1/1+S
Operating Systems Supported Windows 98/ 98SE / Me / NT4.0 / 2000 / XP/ NT 4.0, Windows Server 2003, Linux, Novell Netware
Features
Features Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card
48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
Hot-plug capability
Fully compliant with Serial ATA 1.5G specifications
Provides RAID 0 (Striping) to greatly increase the performance of data transfer by simultaneously writing data to 2 drives
Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives
RAID 0+1 (Mirrored-Striping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring
RAID 1+S (Mirrored-sparing) can automatically replace the failed drive and rebuild the system when booting HDD is failed
Supports ATAPI commands
Supports Spread Spectrum in receiver
Independent 256-byte FIFOs (32 bit x 64 deep) per Serial ATA channel for host reads and writes
Compliant with PCI Specification, revision 2.2
Integrated PCI DMA engines
Four Pin header on board for LED connection
32 bit, 33/66MHz fully compliant PCI host interface
Acts as NON-RAID when not BIOS configured RAID
Package Contents

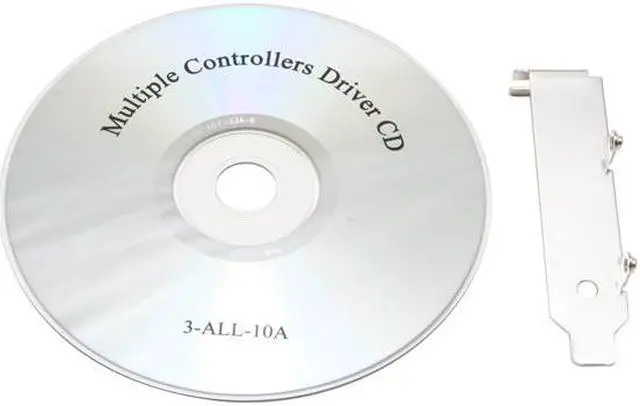

Package Contents Serial ATA 4 Port RAID PCI Controller Card
Low Profile PCI Bracket
Drivers on CD
Quick Installation guide
Additional Information
First Listed on Newegg April 05, 2006
