Question 1

What software is used on the host PC to view the TV picture  from this unit ?

Accepted Answer

It comes with video tuner software, which worked fine on my Windows 7 machine. No Linux software that I could find. If you are using cable or satellite input through the RCA inputs, the tuner has to be done on the cable box. If you hook up an antenna, then the tuning function works fine. I didn't use the antenna feature, so I don't know if it supports digital antenna input.  It may be that since the device is old and the specs say "analog tuner" it does not support digital antenna signals.

Question 2

I have a 32 inch Sylvania HDTV (6632LG) with a digital antenna.  My tuner is heat sensitive (shuts off every 60 seconds). My DVD still works and my picture quality (when it works) is great. I don't see digital signal input.  Would this work for me?

Accepted Answer

No, this requires a PC for the card to be installed in, output is Ethernet only. they sell network tuner devices as well , that don't require a PCIe card \ PC, but they too is Ethernet output

Question 3

is this what I need to watch basic channels on my laptop?. I am looking for some way for just basic TV on my pc without the need for cable or satellite tv providers.

Accepted Answer

It has the attachment for a TV antenna, and the software has channel changing built in. I have mine hooked up to a satellite box so I can't say how well it works on an antenna.

Question 4

Can you view the video live, and how much lag is there? i'm looking to use this for FPV to use my laptop as a monitor so there needs to be very little to no lag.

Accepted Answer

You can view the video live, there is definitely a delay of a couple hundred ms depending on your monitor/tv. Example: you can play a game while viewing it on the pc but there is a noticeable delay in your inputs and when they occur on the screen.

Brand	SABRENT
Model	TV-USB20

Type	External TV Tuner Box
Others	CD-ROM drive

TV Tuner	Analog Tuner
TV Standards	NTSC

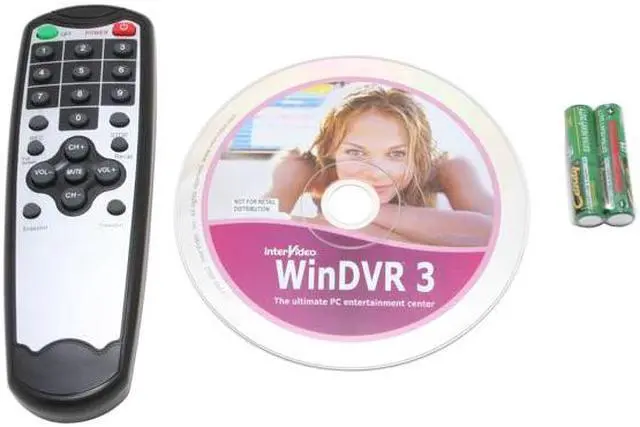

Remote Control	Remote Included

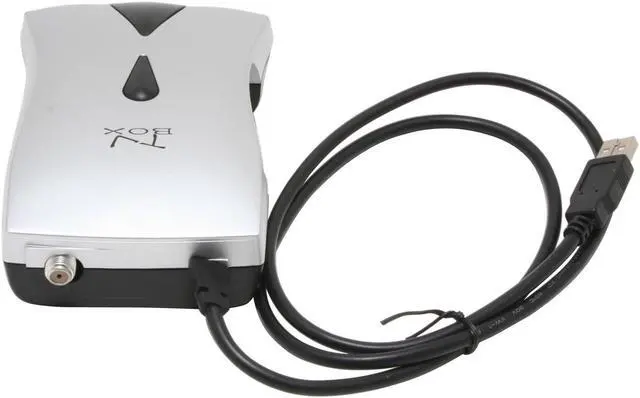

Interface	USB 2.0
Video System	NTSC 30fps 720 x 480, PAL 25fps 720 x 576
FM Tuner	No
Video Format	MPEG 4/2/1

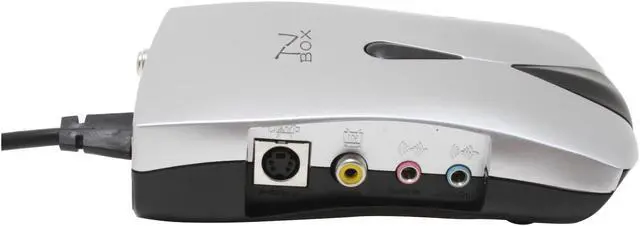

Ports In	Audio Input Coaxial TV Antenna or Cable Input S-VHS Input Composite Input

Processor	Pentium III 800 MHz or above
Graphics Card	VGA Card with at least 8MB memory
Memory	64 MB or above
Available Slot	USB 2.0 Port
Operating Systems Supported	Windows 2000/XP

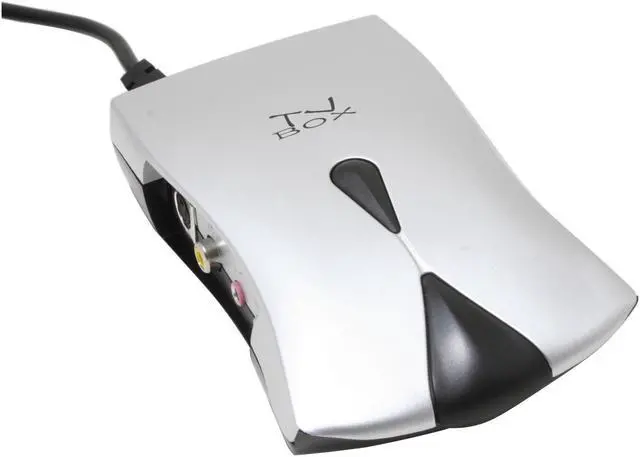

SABRENT TV-USB20 USB 2.0 TV Tuner/Video Capture Box with Remote Control
