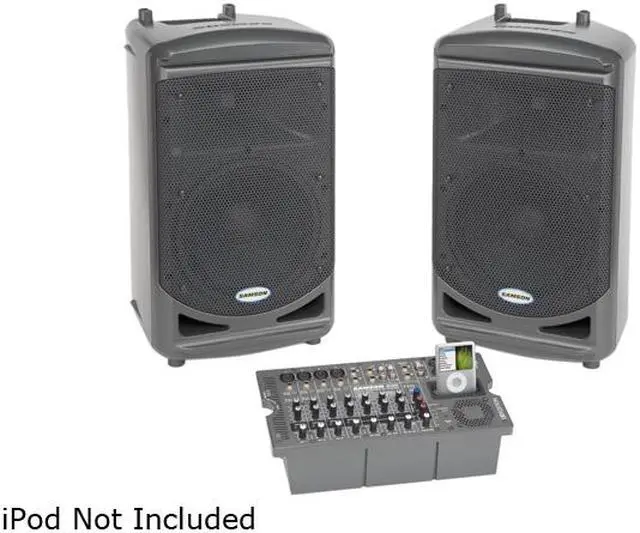

Samson Expedition Portable PA System - 500 Watt, 10-Channel

Be the first to review this product...
  • Maximum Output Level (0.5% T.H.D. @ 1kHz): +22dBu (monitor L/R) @ 10 kOhms, +14 dBu (REC) @ 10 kOhms
  • T.H.D: <0.1% @+14 dB 20 Hz ~ 20 kHz (monitor L/R, REC L/R) @ 10 kOhms
  • Hum and Noise (Input GAIN=M
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Samson XP510i

Model
Brand Samson
Series Expedition
Model XP510i
Details
Specification Maximum Output Level (0.5% T.H.D. @ 1kHz): +22dBu (monitor L/R) @ 10 kOhms, +14 dBu (REC) @ 10 kOhms

T.H.D: <0.1% @+14 dB 20 Hz ~ 20 kHz (monitor L/R, REC L/R) @ 10 kOhms

Hum and Noise (Input GAIN=Maximum Input sensitivity, MIC)
-112dBu equivalent input noise (Rs = 150 Ohms )
-90dBu Residual noise (Monitor L/R) all Levels at Minimum
-80dBu MONITOR at nominal level and all channel Levels (minimum.)
-70dBu MONITOR at maximum level and all channel Levels (minimum.)

Maximum Voltage Gain
50dB MIC 1/2 (XLR, LIMIT Position) IN TO MONITOR L/R
60dB MIC 3/4 (XLR) IN TO MONITOR L/R
40dB MIC 1/2 (PHONE TRS, LIMIT Position) IN TO MONITOR L/R
50dB MIC 3/4 (PHONE TRS) IN TO MONITOR L/R
14dB CH 1/2 LINE (PHONE TRS, LIMIT Position, MIC/LINE SW IN) IN TO MONITOR L/R
24dB CH 3/4 LINE (PHONE TRS, MIC/LINE SW IN) IN TO MONITOR L/R
28dB ST LINE IN TO MONITOR L/R
48dB MIC 3/4(XLR) IN TO REC L/R

Crosstalk (at 1 kHz): -70 dB between input channels, -70 dB between input/output channels

SPEECH/MUSIC: 167 Hz, 3dB/Octave

Input Channel Equalization
High: 10 kHz shelving +/-15 dB
Low: 100 Hz shelving +/-15 dB

LIMIT/COMP Switch: DOWN = Comp, UP = Limit (CH1/2)

Phantom Power: +15V DC
Sound
Output Power 250 W + 250 W @ 8 Ohms
Driver Unit Custom 10-inch woofers in 2-way vented enclosures with 1-inch high frequency driver
Frequency Response 20 Hz ~ 20 kHz +/-1 dB, 10 kOhms (Monitor L/R)

20 Hz ~ 20 kHz +0/-1 dB, 10 kOhms (REC L/R)
Power
Power Supply AC 100 V~240 V, 50/60 Hz
Power Consumption 600 W Max.
Features
Feature Dual 2-way speaker enclosures, powered mixer with built-in 500 watt (2 x 250) Class D amplifier

Packs up into a single portable unit that weighs just over 50 pounds

10-channel mixer with built-in iPod dock, four mic/line inputs, three stereo inputs and phantom power

Ten studio-quality 24-bit digital effects

Integrated 1-3/8-inch speaker stand mounts

Enclosures tilt back for use as floor monitors
Dimensions & Weight
Dimension 22.7" (W) x 12.6" (D) x 22" (H)
Weight 52.8 Ibs. (24 kg)
Additional Information
First Listed on Newegg October 28, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
