XPD2 Lavalier USB Digital Wireless System
Samson XPD2 Lavalier is a wireless microphone solution for content creation, digital communication and live sound reinforcement. Offering simple setup and professional full-range audio, the XPD2 Lavalier features a uniquely designed USB stick receiver that connects with computers, smartphones and XPD Wireless-enabled Samson portable PA systems for a performance that sounds as good as using a wired microphone.

Free to Roam...

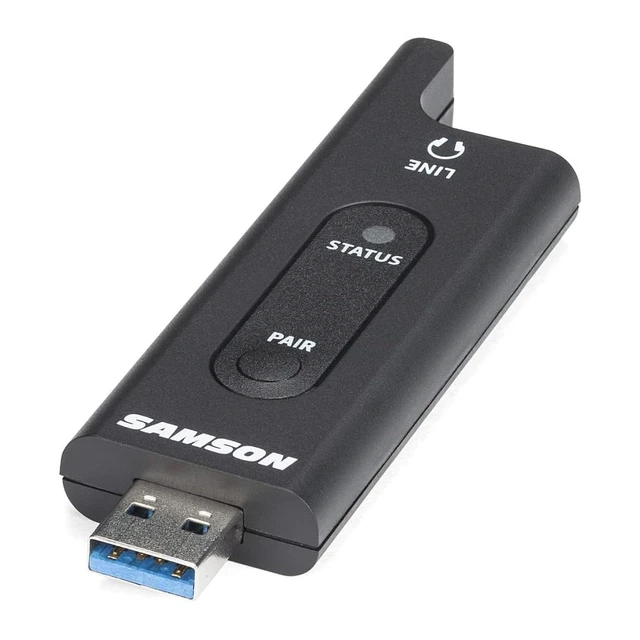

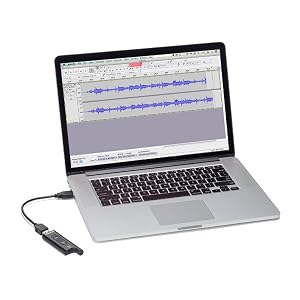

Connect to your Windows, Mac or Chromebook to record podcasts, voiceovers and lead presentations with professional sound quality while sitting at your desk or walking around the room. Unlike traditional wireless systems, the XPD2 Lavalier features an innovative receiver that’s built into a USB stick. This convenient design plugs into and is powered from a standard USB port on a computer. One-touch pairing and 20 hours of transmitter battery life allow for shorter setup and longer performance.

More Ways To Connect

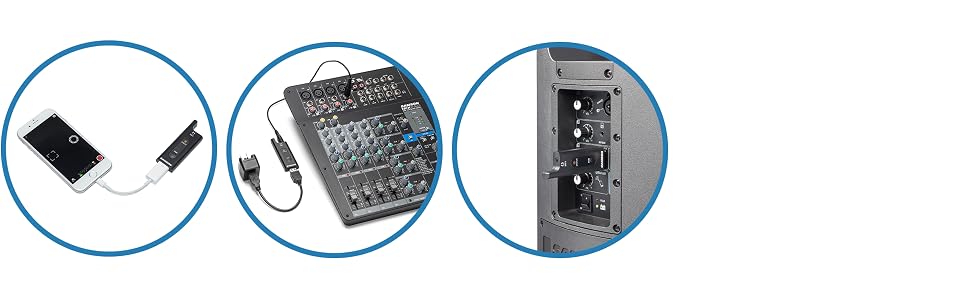

The XPD2 receiver is compatible with iPads and iPhones using Apple’s Lightning to USB Camera Adapter, as well as with Android devices via a host OTG adapter. The receiver also connects directly to any PC, Mac or Chromebook, or with any XPD Wireless-enabled Samson product.
XPD2 Lavalier Specifications


XPD2 Lavalier USB Digital Wireless System
Samson XPD2 Lavalier is a wireless microphone solution for content creation, digital communication and live sound reinforcement. Offering simple setup and professional full-range audio, the XPD2 Lavalier features a uniquely designed USB stick receiver that connects with computers, smartphones and XPD Wireless-enabled Samson portable PA systems for a performance that sounds as good as using a wired microphone.

Free to Roam...
Connect to your Windows, Mac or Chromebook to record podcasts, voiceovers and lead presentations with professional sound quality while sitting at your desk or walking around the room. Unlike traditional wireless systems, the XPD2 Lavalier features an innovative receiver that’s built into a USB stick. This convenient design plugs into and is powered from a standard USB port on a computer. One-touch pairing and 20 hours of transmitter battery life allow for shorter setup and longer performance.

More Ways To Connect
The XPD2 receiver is compatible with iPads and iPhones using Apple’s Lightning to USB Camera Adapter, as well as with Android devices via a host OTG adapter. The receiver also connects directly to any PC, Mac or Chromebook, or with any XPD Wireless-enabled Samson product.
XPD2 Lavalier Specifications
| Working Range | 100' (30m) Line of sight |
| Frequency Band | 2.404~2.476 GHz |
| Audio Frequency Response | 20 Hz – 17 kHz (-1 dB) |
| T.H.D | <0.1% (at 1 kHz, -10 dBu) |
| Signal to Noise | >85 dB |
| Input Conenctor | Mini-XLR (P3) |
| Transmitter RF Power | <10 mW EIRP |
| Transmitter Power Requirements | Two AA (LR6) alkaline batteries |
| Transmitter Battery Life | Up to 20 hours |
| Transmitter Dimensions | 3.75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm |
| Transmitter Weight | 0.2lb / 93g |
| Receiver Max. Analog Output | 9 dBu |
| Receiver Headphone Output | 1/8" (3.5mm); 22 mW into 16 O or 32 O |
| Receiver Operating Voltage | 5V DC |
| Receiver Dimensions | 3.5" x 0.9" x 0.31" / 89mm x 23mm x 8mm |
| Receiver Weight | 0.35oz / 10g |
