Question 1

Does this come from Newegg with the cable I will need to clone my existing drive?

Accepted Answer

No. This included no cable. I believe in included a cd of the Samsung software to help with that process, but the only hardware in my case was the drive itself.

Question 2

Will this work with the MSI Z170-A PRO LGA 1151 Intel Z170 SATA 6Gb/s USB 3.1 ATX Intel Motherboard?

Accepted Answer

All I can say for sure is it works with my ASUS Z170-A LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard.

Question 3

will this work with M Type M.2? I looking into a bigger and faster card. I want to turn it into boot drive.

Accepted Answer

Was able to use this on my Dell Laptop with M.2 card.  Had issues with the first one which was defective but the replacement unit recognized the card right away and quickly installed with the Samsung Software.

Question 4

Will this SSD work with my GIGABYTE G1 Gaming GA-Z97X-Gaming 7 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard?

Accepted Answer

Yes this will work in your motherboard, however when installed it will disable your SATA 4/5 ports. Also this is a SATA based drive which gives no performance advantage over a traditional 2.5" drive. They do look a lot cleaner though because there are no cables.

Question 5

Can this replace storage in MacBook Pro mid 2014 13" SSD? Running out of space for development.

Accepted Answer

You would need an adapter. This is also SATA based and I believe the 2014 Macbook Pros use PCIe only SSDs. I just made the mistake myself right now trying to put a PCIe based M-Key Intel 512gb 600p Series in my 2012 Macbook Air using an adapter and that I just found out was B-Key and SATA based. The B-Key and M-Key only drives are extremely similar appearance wise and only difference is a single contact pin.Enter an answer to this question.

Question 6

Have a HP Pavilion 15-au053tx with a Samsung CM871a 256GB M.2 OEM SATA solid state drive, SSD MZNTY256HDHP-00000. Can I replace this with the SAMSUNG 850 EVO M.2 2280 (512 GB or 1TB) SATA III 3-D Vertical Internal Solid State Drive (SSD) MZ-N5E1T0BW ? Thx

Accepted Answer

no,  the drive you have has a SATA connection, this requires a m.2 connection to the motherboard. If your motherboard has an m.2 port then yes.

Question 7

has this been over partitioned?

Accepted Answer

Question makes no sense... either way the answer is no.

Question 8

5 year warranty?  Is that a SEPARATE purchase? Or does it come automatically when I buy the m.2SSD?

Accepted Answer

Hello,

Thank you for showing interest in the item.

The warranty period listed under the "Warranty and Returns" tab would be through the manufacturer, extended warranties may be offered however at checkout.

Thank you,
Newegg Support

Question 9

Is this compatible with MSI's GT72 6QD? MSI's specs have been confusing in the past. Want additional confirmation before I order.

Accepted Answer

It will work, although the SSD that it comes with is an NVMe M.2. NVMe is faster than standard SATAIII. In your case (providing budget allows) I would recommend the Samsung 950 PRO.

Question 10

Will this be fit to thinkpad x1 yoga?

Accepted Answer

I believe it should lenovo is funny though the have caps sometimes in bios

Form Factor	M.2 2280
Capacity	1TB
Memory Components	3D NAND
Interface	SATA III
Controller	MGX

Max Sequential Read	Up to 540 MBps
Max Sequential Write	Up to 500 MBps
4KB Random Read	Up to 10,000 IOPS (QD1) Up to 97,000 IOPS (QD32)
4KB Random Write	Up to 40,000 IOPS (QD1) Up to 89,000 IOPS (QD32)
MTBF	1,500,000 hours

Power Consumption (Idle)	50mW
Power Consumption (Active)	2.3W/2.7W (Read/Write)
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Operating Humidity	5% to 95% RH
Max Shock Resistance	1500G
Max Vibration Resistance	20G

Height	2.30mm
Width	22.00mm
Depth	80.00mm
Weight	40.00g

Meet Your Seller

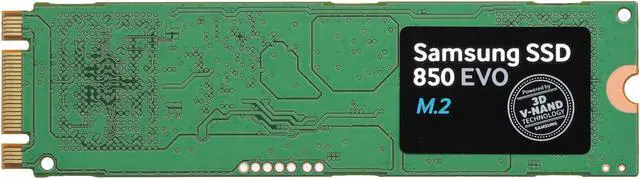

SAMSUNG 850 EVO M.2 2280 1TB SATA III 3D NAND Internal Solid State Drive (SSD) MZ-N5E1T0BW

Learn more about the SAMSUNG MZ-N5E1T0BW

Customer Reviews of the SAMSUNG MZ-N5E1T0BW

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	SAMSUNG
Series	850 EVO
Model	MZ-N5E1T0BW
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Item#: 9SIAADFK2E9802
