Sangean ATS-909X AM/FM/LW/SW World Band Receiver
- FM/AM/SW/LW
- Clock Function
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ATS-909X
FM-RBDS / MW / LW / SW PLL Synthesized Receiver
FM-RBDS / MW / LW / SW PLL Synthesized Receiver
FEATURES
- 406 Memory Preset Stations
- ATS (Auto Tuning System) Auto Scan
- Five Tuning Methods: Direct Frequency Tuning, Auto Scan, Manual Tuning, Memory Recall and Rotary Tuning
- Large LCD Screen with Bright LED Backlight
- Automatically Search for Strongest Signal Station within SW Station Pages
- 3 Alarm by Radio or HWS (Humane Wake System) Buzzer
- Built-in 42 World Cities Time Plus D.S.T. Device with 2 Editable City Names
- AM Wide / Narrow Filter
- FM Mono / Stereo Selector Switch
- SSB (Single Side Band): USB / LSB 40Hz / Step on Fine Tuning
- Squelch Function can adjust the receiving threshold to eliminate weak transmissions
- Adjustable Sleep Timer
- Dual Conversion Device for MW / LW / SW
- EEPROM for Memory Backup
- 8 Characters for Editing Station Name on Display
- Fine Tuning Control
- Direct Key to Recall Favorite Station in One Button
- Tone Control: (Music / Normal / News)
- Individual Headphone Amplifier
- Signal and Battery Strength Indicator
SPECIFICATION
| TUNING | Type | PLL synthesized | |
|---|---|---|---|
| Memory Presets | 406 | ||
| Rotary Tuning | V | ||
| Auto Tuning System | V | ||
| 10 - Key Input | V | ||
| DISPLAY | LCD / VFD / Dial Scale | LCD | |
| View Area (mm / inch) | 84.5 x 49.5 / 3.33 x 1.95 | ||
| Graphic / Character Type | Segment | ||
| Back Light | Brighter white LED | ||
| FEATURE | Stereo | Earphones | |
| Charger | V | ||
| TUNER | FM | Frequency (MHz) | 87.5 - 108, 76 - 108 |
| RDS / RBDS | PS / PTY / RT / CT | ||
| LW | Frequency (kHz) | 153 - 519 | |
| MW | Frequency (kHz) | 520 - 1710 | |
| SW | Frequency (MHz) | 1.711 - 29.999, 120,90,75,60,49, 41,31,25,21,19, 16,15,13,11 | |
| AM | SSB | USB / LSB | |
| Dual Conversion | V | ||
| Wide / Narrow | V | ||
| MEDIA | Aux - in | V | |
| CLOCK | Real Time | V | |
| Dual / World Time | World time | ||
| Radio Alarm | V | ||
| Buzzer Alarm | HWS | ||
| Snooze | V | ||
| Sleep | V | ||
| Radio Control | FM RDS (RBDS) - CT | ||
| AUDIO | EQ | Tone Control | NEWS / NORM / MUSIC (Slide) |
| OUTPUT DEVICES | Speaker | Size ( mm / inch ) | 3 inches |
| Impedance | 8 ohms | ||
| Buzzer | V | ||
| OUTPUT POWER (TYPICAL) | AC / DC in ( Speaker ) | 1.5 W | |
| Batteries (Speaker) | 700 mW | ||
| Earphones | 5 + 5 mW | ||
| POWER SUPPLY | AC to AC in | 9V AC / 0.7A | |
| Batteries (Main Power) | 4 x 1.5V (UM - 3) | ||
| I/O SOCKET | AC to AC in | V | |
| Earphones | V | ||
| Line - out | V | ||
| Ext.Antenna | SW | ||
| Aux - in | V | ||
| REC Standby | V | ||
| ACCESSORIES | AC Adapter | V | |
| Carrying Pouch | V | ||
| Earphones | V | ||
| SW Antenna | V (ANT-60) | ||
| DIMENSIONS | Width (mm/inch) | 207.5 / 8.17 | |
| Height (mm/inch) | 134.8 / 5.31 | ||
| Depth (mm/inch) | 41.3 / 1.63 | ||
| Weight (g & lb. oz) | 733.5 / 1lb. 9.9oz |

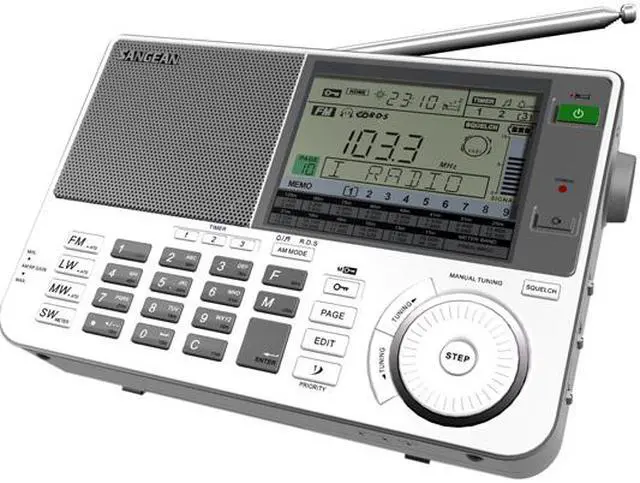

The ATS-909X is the new flagship of the Sangean line of AM/FM/SW Portable Radios. Stepping up from previous ATS-909 model in terms of construction, output power, and signal range, the ATS-909X packs performance and rich features into a very compact and stylish, yet affordable package. With coverage including all long wave, medium wave, short wave, and AM and FM stereo frequencies (FM Stereo through headphone jack), this unit is the ideal choice for the monitoring professional who’s on the go.
The new enlarged LCD features a bright white LED for improved clarity. With over three times the output power of the ATS-909 and a more rigid cabinet, the ATS-909X offers superior sound quality and reliability. Three programmable wake up timers are available and the displays even when the radio is tuning and has 42 world city times stored. The ATS-909X operates on 4 “AA" Alkaline or rechargeable batteries (not included) or an included AC Adapter.
The new enlarged LCD features a bright white LED for improved clarity. With over three times the output power of the ATS-909 and a more rigid cabinet, the ATS-909X offers superior sound quality and reliability. Three programmable wake up timers are available and the displays even when the radio is tuning and has 42 world city times stored. The ATS-909X operates on 4 “AA" Alkaline or rechargeable batteries (not included) or an included AC Adapter.
