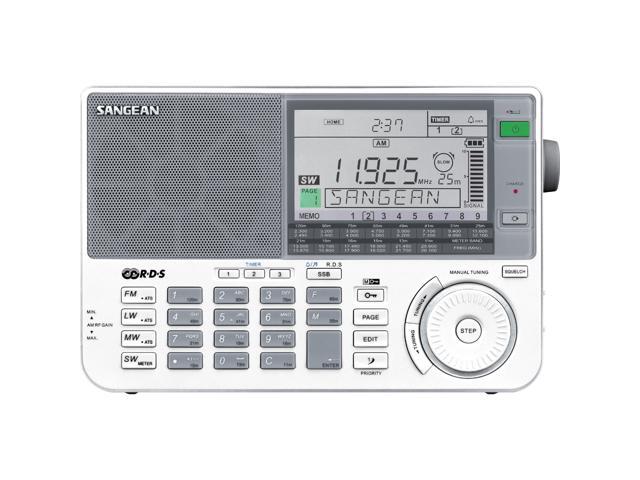

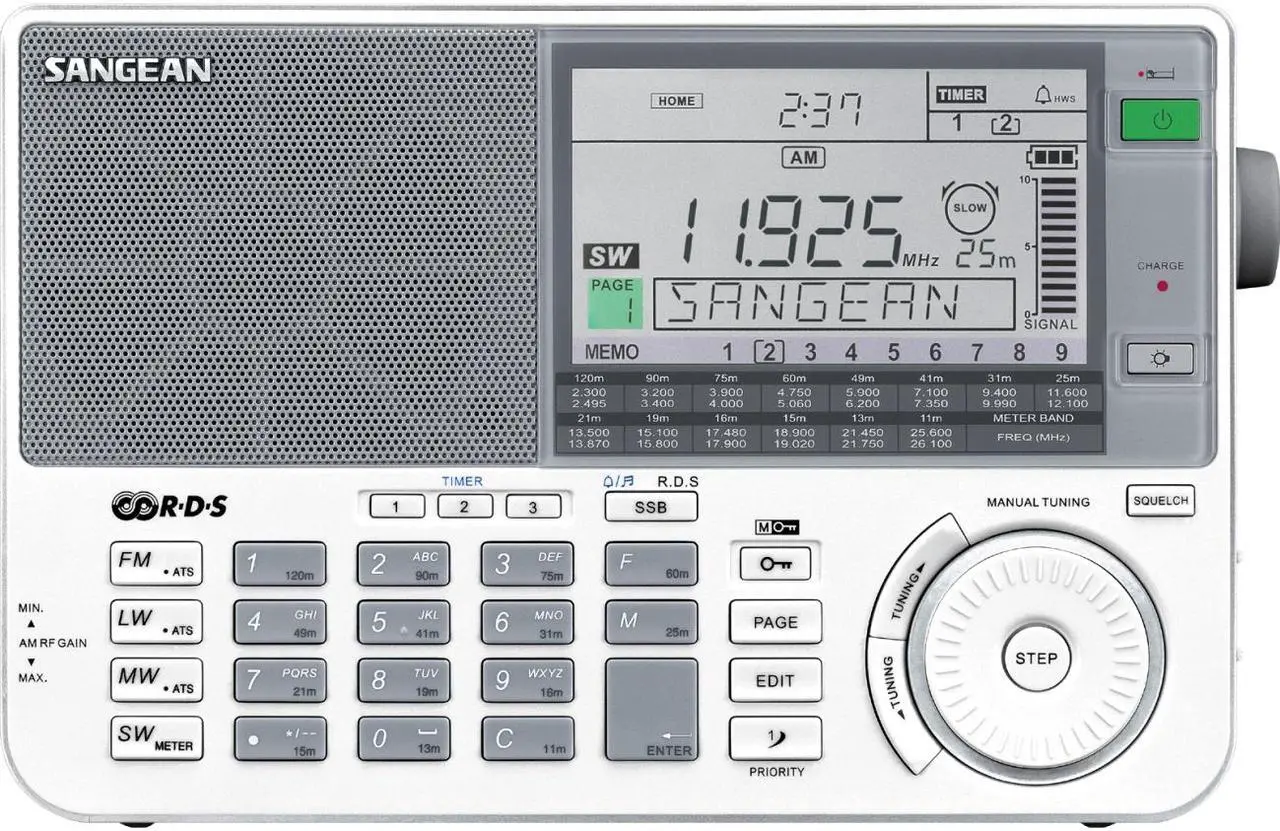

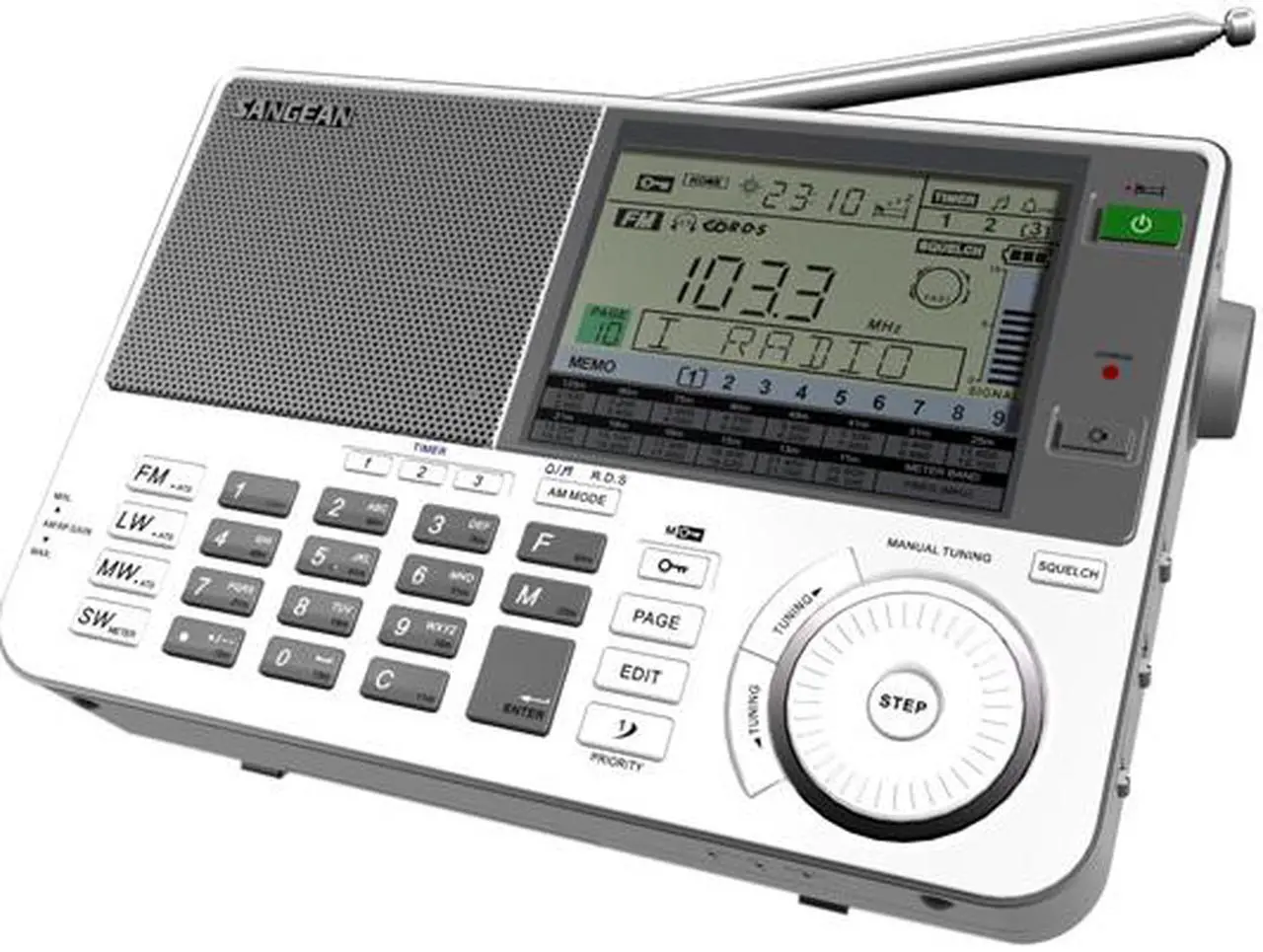

Sangean ATS-909X AM/FM/LW/SW World Band Receiver
- FM/AM/SW/LW
- Clock Function
Overview
Specs
Reviews
ATS-909X
FM-RBDS / MW / LW / SW PLL Synthesized Receiver
FM-RBDS / MW / LW / SW PLL Synthesized Receiver
FEATURES
- 406 Memory Preset Stations
- ATS (Auto Tuning System) Auto Scan
- Five Tuning Methods: Direct Frequency Tuning, Auto Scan, Manual Tuning, Memory Recall and Rotary Tuning
- Large LCD Screen with Bright LED Backlight
- Automatically Search for Strongest Signal Station within SW Station Pages
- 3 Alarm by Radio or HWS (Humane Wake System) Buzzer
- Built-in 42 World Cities Time Plus D.S.T. Device with 2 Editable City Names
- AM Wide / Narrow Filter
- FM Mono / Stereo Selector Switch
- SSB (Single Side Band): USB / LSB 40Hz / Step on Fine Tuning
- Squelch Function can adjust the receiving threshold to eliminate weak transmissions
- Adjustable Sleep Timer
- Dual Conversion Device for MW / LW / SW
- EEPROM for Memory Backup
- 8 Characters for Editing Station Name on Display
- Fine Tuning Control
- Direct Key to Recall Favorite Station in One Button
- Tone Control: (Music / Normal / News)
- Individual Headphone Amplifier
- Signal and Battery Strength Indicator
SPECIFICATION
| TUNING | Type | PLL synthesized | |
|---|---|---|---|
| Memory Presets | 406 | ||
| Rotary Tuning | V | ||
| Auto Tuning System | V | ||
| 10 - Key Input | V | ||
| DISPLAY | LCD / VFD / Dial Scale | LCD | |
| View Area (mm / inch) | 84.5 x 49.5 / 3.33 x 1.95 | ||
| Graphic / Character Type | Segment | ||
| Back Light | Brighter white LED | ||
| FEATURE | Stereo | Earphones | |
| Charger | V | ||
| TUNER | FM | Frequency (MHz) | 87.5 - 108, 76 - 108 |
| RDS / RBDS | PS / PTY / RT / CT | ||
| LW | Frequency (kHz) | 153 - 519 | |
| MW | Frequency (kHz) | 520 - 1710 | |
| SW | Frequency (MHz) | 1.711 - 29.999, 120,90,75,60,49, 41,31,25,21,19, 16,15,13,11 | |
| AM | SSB | USB / LSB | |
| Dual Conversion | V | ||
| Wide / Narrow | V | ||
| MEDIA | Aux - in | V | |
| CLOCK | Real Time | V | |
| Dual / World Time | World time | ||
| Radio Alarm | V | ||
| Buzzer Alarm | HWS | ||
| Snooze | V | ||
| Sleep | V | ||
| Radio Control | FM RDS (RBDS) - CT | ||
| AUDIO | EQ | Tone Control | NEWS / NORM / MUSIC (Slide) |
| OUTPUT DEVICES | Speaker | Size ( mm / inch ) | 3 inches |
| Impedance | 8 ohms | ||
| Buzzer | V | ||
| OUTPUT POWER (TYPICAL) | AC / DC in ( Speaker ) | 1.5 W | |
| Batteries (Speaker) | 700 mW | ||
| Earphones | 5 + 5 mW | ||
| POWER SUPPLY | AC to AC in | 9V AC / 0.7A | |
| Batteries (Main Power) | 4 x 1.5V (UM - 3) | ||
| I/O SOCKET | AC to AC in | V | |
| Earphones | V | ||
| Line - out | V | ||
| Ext.Antenna | SW | ||
| Aux - in | V | ||
| REC Standby | V | ||
| ACCESSORIES | AC Adapter | V | |
| Carrying Pouch | V | ||
| Earphones | V | ||
| SW Antenna | V (ANT-60) | ||
| DIMENSIONS | Width (mm/inch) | 207.5 / 8.17 | |
| Height (mm/inch) | 134.8 / 5.31 | ||
| Depth (mm/inch) | 41.3 / 1.63 | ||
| Weight (g & lb. oz) | 733.5 / 1lb. 9.9oz |
