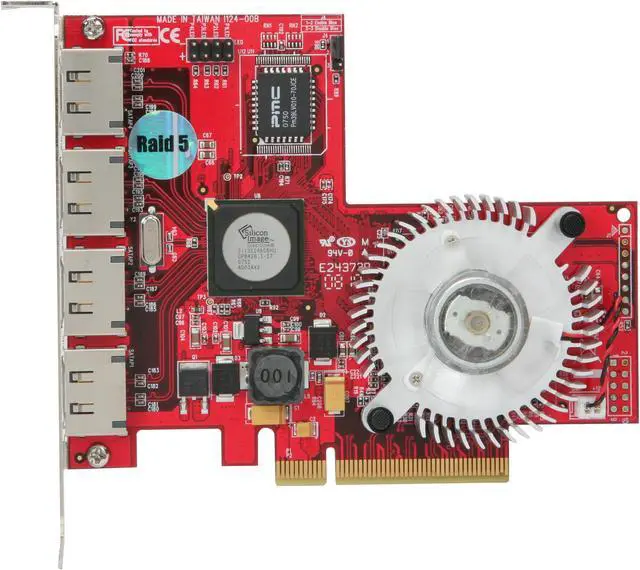

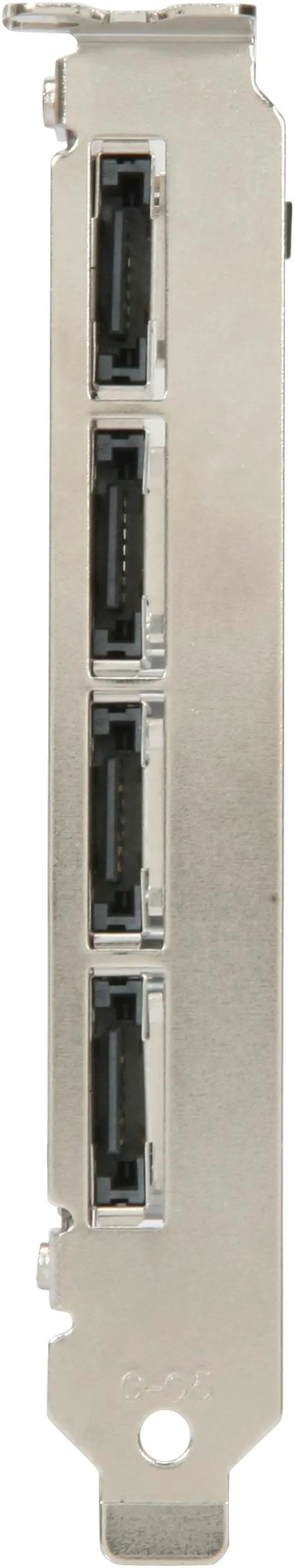

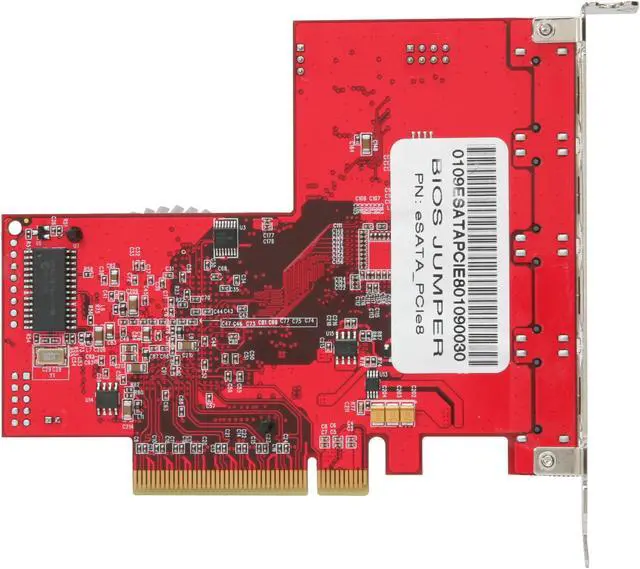

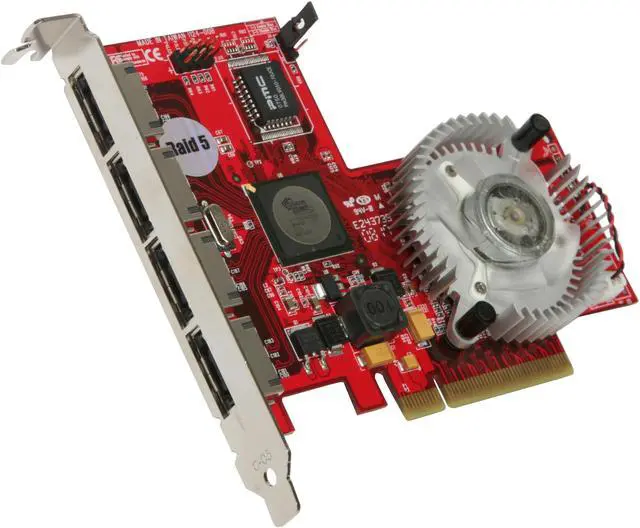

Main image of SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Alt view image 2 of 6 - SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Alt view image 3 of 6 - SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Alt view image 4 of 6 - SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Alt view image 5 of 6 - SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Alt view image 6 of 6 - SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Shop All SANS DIGITAL Products

SANS DIGITAL HA-DAT-4ESPCIE PCI-Express x8 SATA II (3.0Gb/s) Controller Card

Q: Can this card work with up to 5 HDD or up to 20 HDD at once? The description says "with Port Multiplier, a single eSATA cable can connect up to 5 drives with Port Multiplier aware unit" but it's not clear if this works with 5 drives on each of the 4 ports simultaneously.

Yes it will work with 5 drives on each of the ports simultaneously, however drives have to share the connection's bandwidth. I use one of these controllers on a Rosewill RSV-S8 external hot swap array, worked great and was twice as fast as the controller it came with.

(7) Write a Review

RAID 0/1/5/10 JBOD
4 x eSATA External Connectors
Up to 3Gb/s

Overview

Specs

Reviews (7)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Add 4 eSATA ports to your existing PCI-E equipped Mac™/PC computer in order to easily connect to our eSATA products including: MS1UT, MS2UT, MS2T1, MS4T, MR5CT1. This revolutionary design use the latest Intel and Silicon Image 3124A chipset to provide PCI 8x interface to 4 eSATA connection. With Also support Port Multiplier, a single eSATA cable can connect up to 5 drives with Port Multiplier aware unit, such as TowerRAID port multiplier series or TowerRAID Plus series.

Model
Brand	SANS DIGITAL
Model	HA-DAT-4ESPCIE

Details
Type	SATA II (3.0Gb/s)
External Connectors	4 x eSATA
Interface	PCI-Express x8
Transfer Rate	Up to 3Gb/s
RAID	RAID 0/1/5/10 JBOD
Operating Systems Supported	Supports Windows 2000, XP, Vista, 2003 Server, MAC OS 10.4.x or later, and Linux. (Please note that the host adapter card is based on Silicon Image chipset, which currently only support up to MAC OS 10.5.1 by Silicon Image.)

Features
Features	Fully compliant with SATA I and SATA II. Supports Serial ATA Generation 2 transfer rate of 3.0 Gbps. Supports Serial ATA II Port Multiplier. Supports RAID 0, 1, 0+1, 5 for Windows.

Additional Information
First Listed on Newegg	February 10, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
