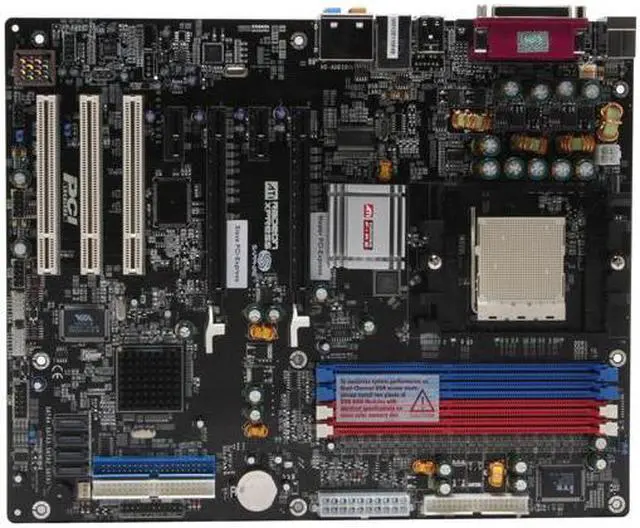

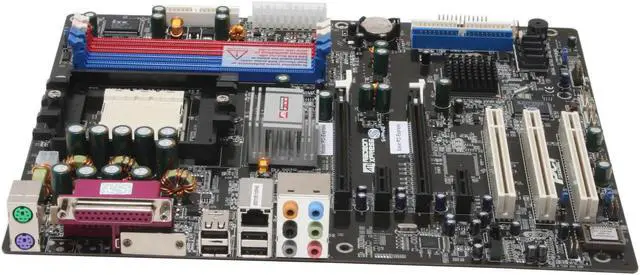

SAPPHIRE PC-A9RD480Adv 939 ATI Radeon Xpress 200 CrossFire ATX AMD CrossFire Motherboard
- ATI Radeon Xpress 200 CrossFire
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR 400
Specs
Reviews (34)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Sapphire Tech PC-A9RD480Adv
| Brand | SAPPHIRE |
|---|---|
| Model | PC-A9RD480Adv |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | ATI Radeon Xpress 200 CrossFire |
|---|---|
| South Bridge | ATI SB450 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| SATA RAID | 0/1 |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4ports |
|---|---|
| Onboard 1394 | 2 x 1394a connectors support 2 ports |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 20 Pin |

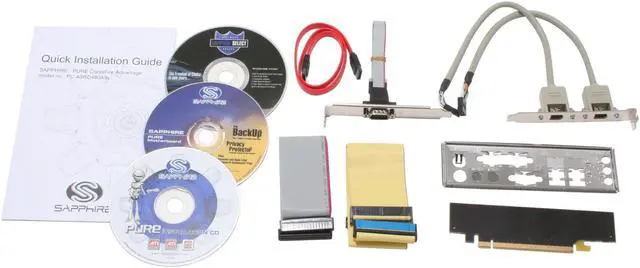

| Package Contents | PC-A9RD480Adv Driver Disk User Manual 2 x Software Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Serial/COM Bracket IEEE 1394 Bracket Shadow Card |
|---|
| First Listed on Newegg | January 24, 2006 |
|---|
