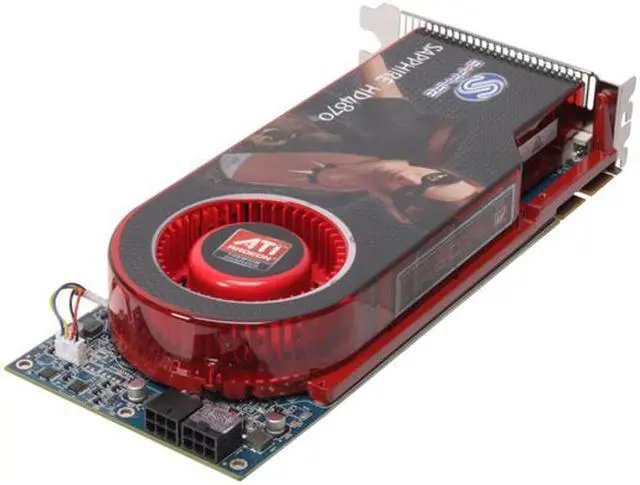

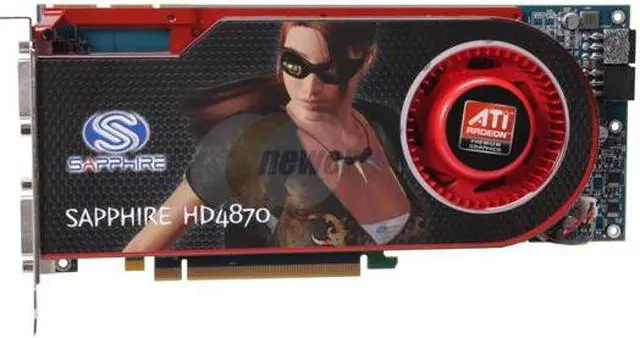

SAPPHIRE Radeon HD 4870 DirectX 10.1 100257L 512MB 256-Bit GDDR5 PCI Express 2.0 x16 HDCP Ready CrossFireX Support Video Card
OUT OF STOCK.
- 512MB 256-Bit GDDR5

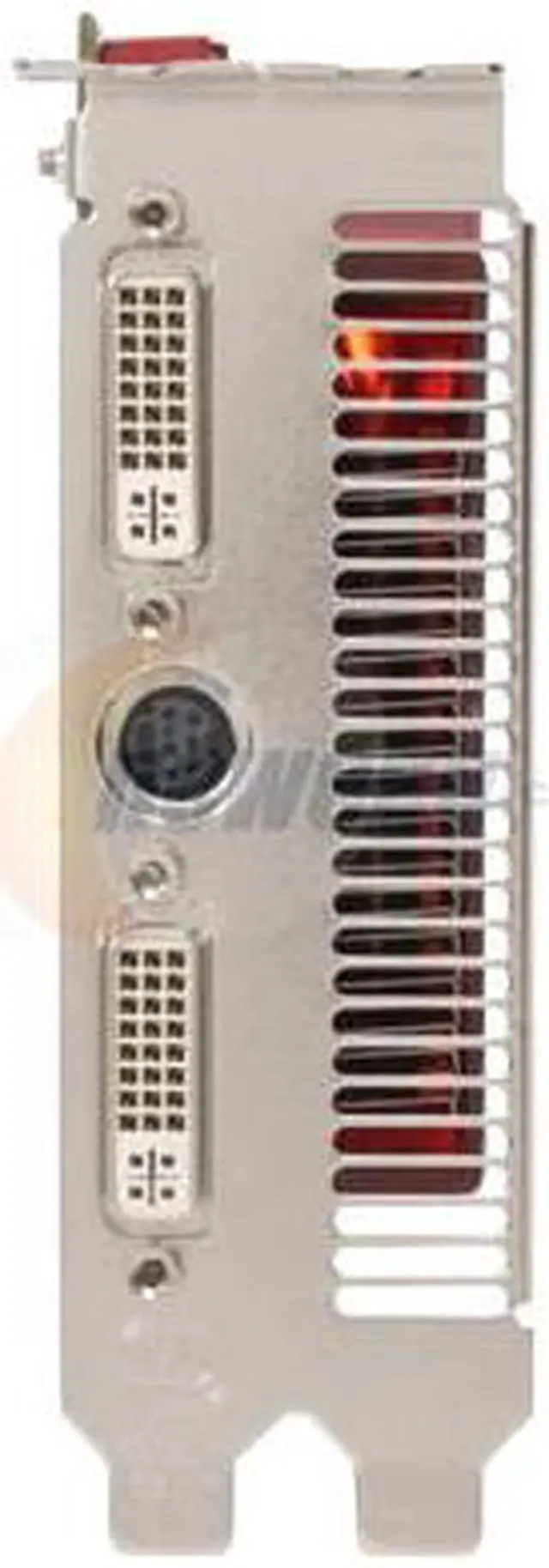

- 2 x DVI 1 x HDMI (via Adapter)
- 800 Stream Processors
- PCI Express 2.0 x16
Specs
Reviews
Learn more about the Sapphire Tech 100257L
Brand | SAPPHIRE |
---|---|
Model | 100257L |
Interface | PCI Express 2.0 x16 |
---|
Chipset Manufacturer | ATI |
---|---|
GPU | Radeon HD 4870 |
Stream Processors | 800 Stream Processors |
Memory Size | 512MB |
---|---|
Memory Interface | 256-Bit |
Memory Type | GDDR5 |
DirectX | DirectX 10.1 |
---|---|
OpenGL | OpenGL 2.1 |
HDMI | 1 x HDMI (via Adapter) |
---|---|
DVI | 2 x DVI |
TV-Out | HDTV / S-Video Out |
RAMDAC | 400MHz |
---|---|
Max Resolution | 2560 x 1600 |
CrossFireX Support | Yes |
Cooler | With Fan |
System Requirements | PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 500 Watt or greater power supply with two 75W 6-pin PCI Express power connectors recommended (600 Watt and four 6-pin connectors for ATI CrossFireX technology in dual mode) Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSUfor a list of Certified products 1GB of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive For a complete ATI CrossFireX system, a second ATI Radeon HD 4870 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per board (included) are required |
Power Connector | 2 x 6-Pin |
Dual-Link DVI Supported | Yes |
Windows Vista | Certified for Windows Vista |
HDCP Ready | Yes |

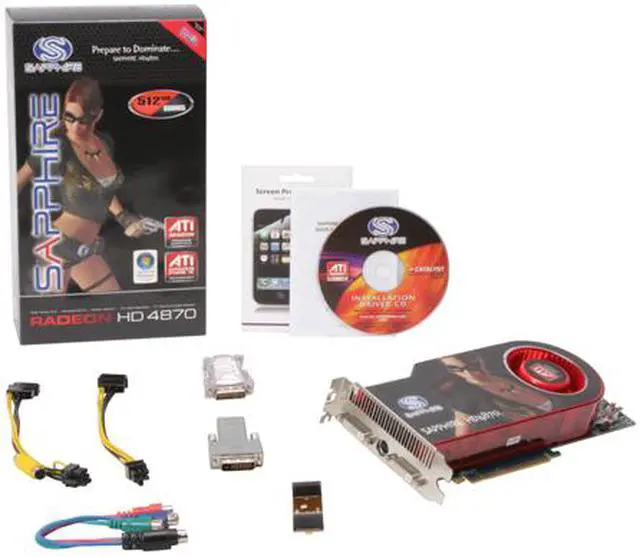

Package Contents | 100257L Driver Disk User's Manual HDTV Cable Power Cable DVI to VGA/D-sub Adapter DVI to HDMI Adapter CrossFire Bridge |
---|
Date First Available | October 02, 2008 |
---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-594-3128
- Support Email: tech@althonmicro.com
- Support Website
- View other products from Sapphire Tech
LOADING...
LOADING...
Pros: I don't really need to explain this, it's known already. Major upgrade from my X1800XT.
Cons: The very abnormal idle temps which may cause GPU failure if not taken care of correctly.
Overall Review: Here is what I did and what you should do too. You can search online for the Radeon BIOS editor that will allow you to modify the stock BIOS "temperature vs fan speed" transfer function residing in the BIOS, which will help keep your GPU much cooler than 68C. Also you can use the editor to patch the annoying 100% fan spin-up at boot bug that is present in the HD4870. On top of that, throw some aftermarket thermal compound on the GPU and your good to go. My HD4870 now idles at 48C. During load it hangs around 66C.
