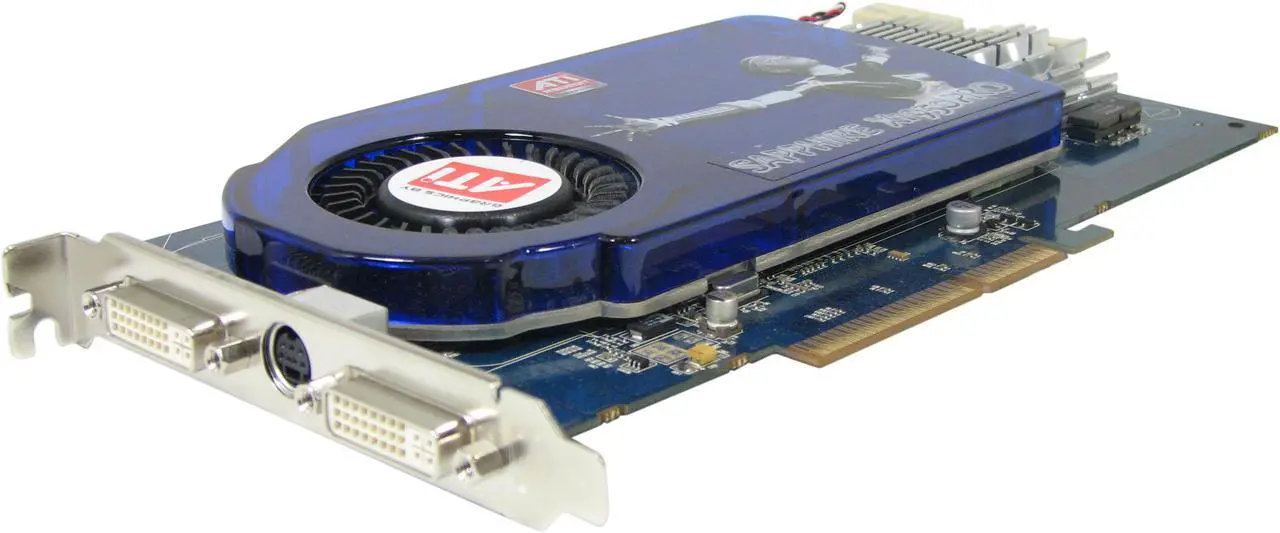

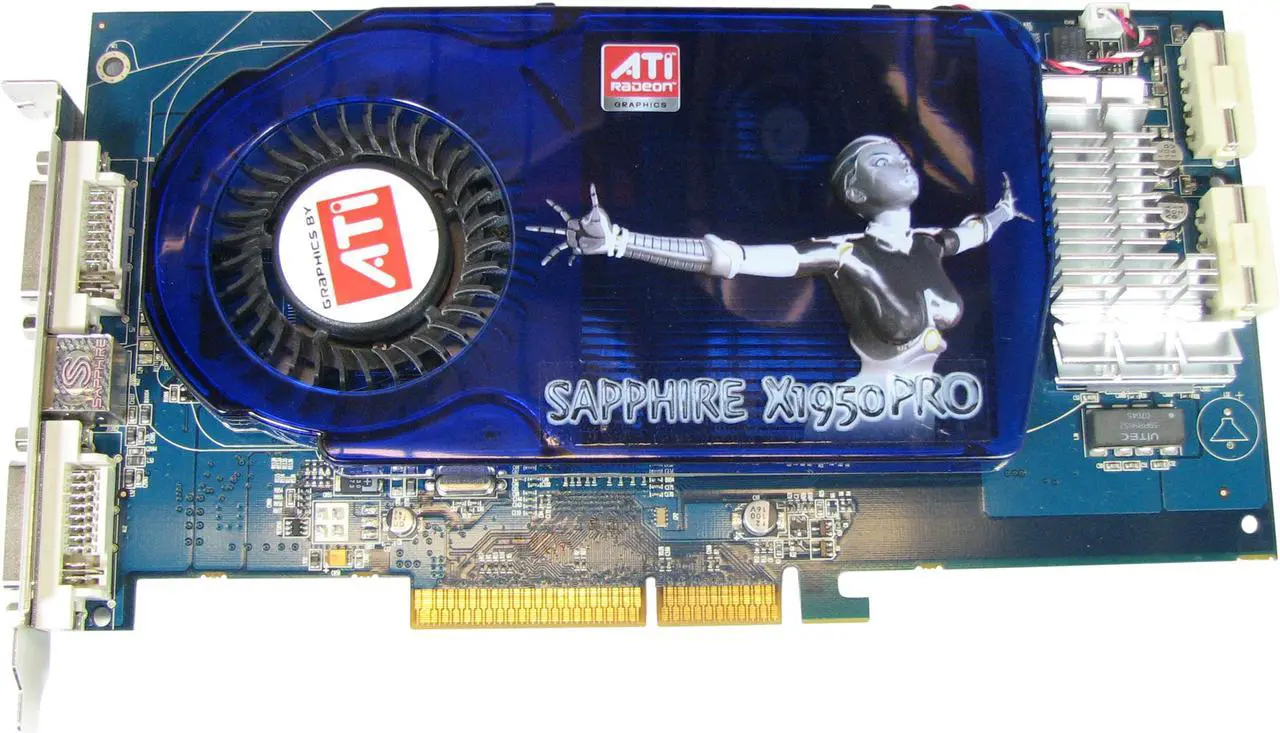

How powerful are the new X1950 Graphic Processor Unit video cards? "Better check to see if your power supply can handle it" powerful, and that's no exaggeration! Some of the new boards require PCI Express; this board lets those of us with an AGP 4x/8x slot play, too.
Not that this is a second-class citizen in Video World, with half a gigabyte of memory, 256 bit wide memory interface, a 1.4 GHz memory clock (580 MHz GPU clock), High Dynamic Range (HDR) displays for even more realistic imagery, and a maximum resolution of 2560 x 1600. Two DVI ports and an HDTV/S-Video output give display flexibility (think of your favorite application on your big screen tv!) and the large fan keeps it cool without busting your eardrums.
Speed and power. Brilliance, high contrast, and vivid colors. The versatility to plug it into your monitor, your tv, or your video projector. You're going to like what you see.
How powerful are the new X1950 Graphic Processor Unit video cards? "Better check to see if your power supply can handle it" powerful, and that's no exaggeration! Some of the new boards require PCI Express; this board lets those of us with an AGP 4x/8x slot play, too.
Not that this is a second-class citizen in Video World, with half a gigabyte of memory, 256 bit wide memory interface, a 1.4 GHz memory clock (580 MHz GPU clock), High Dynamic Range (HDR) displays for even more realistic imagery, and a maximum resolution of 2560 x 1600. Two DVI ports and an HDTV/S-Video output give display flexibility (think of your favorite application on your big screen tv!) and the large fan keeps it cool without busting your eardrums.
Speed and power. Brilliance, high contrast, and vivid colors. The versatility to plug it into your monitor, your tv, or your video projector. You're going to like what you see.
Ultra-threaded EngineThe Radeon X1950 PRO's ultra-threaded engine features 36 individual pixel shader processors to support up to 384 simultaneous pixel threads. It is fully hardware compliant with Microsoft DirectX 9.0 Shader Model 3.0 programmable vertex and pixel shaders, so you can experience HDR and advanced anti-aliasing effects for incredible enhancements to lighting contour and color detail.
HDR-Enabled with FSAAEnjoy silky-smooth 3D gameplay with the ATI Radeon X1K family's exclusive support for HDR (High Dynamic Range) with FSAA (Full Screen Anti Aliasing) enabled.
ATI AvivoATI Avivo sets the bar for advanced imaging and video quality. Integrated into ATI's latest generation of graphics products, ATI Avivo delivers HDTV and next-generation HD disc capabilities with vibrant, sharp images, and the smoothest video playback ever offered by ATI. ATI Avivo also enables universal, professional-quality connectivity for TVs and displays, ensuring the ultimate digital entertainment experience on your PC.
Windows Vista ReadyATI is working in partnership with Microsoft to unlock the potential of the new Windows Aero 3D desktop using ATI's high performance graphics processors, including the Radeon X1950 RRO. Don't let graphics be a barrier to a premium experience - upgrade to ATI. Windows Vista, powered by ATI, is a new visual dimension for business and personal computing.
Learn more about the Sapphire Tech 100171L
Model
Brand
SAPPHIRE
Model
100171L
Interface
Interface
AGP 4X/8X
Chipset
Chipset Manufacturer
AMD
GPU
Radeon X1950PRO
Core Clock
580 MHz
PixelPipelines
12(36 Pixel shader processor)
Memory
Effective Memory Clock
1400 MHz
Memory Size
512MB
Memory Interface
256-Bit
Memory Type
GDDR3
3D API
DirectX
DirectX 9
OpenGL
OpenGL 2.0
Ports
DVI
2 x DVI
TV-Out
HDTV / S-Video / Composite Out
Details
RAMDAC
400MHz
Max Resolution
2560 x 1600
RoHS Compliant
Yes
Cooler
With Fan
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Features
Features
Anti-Aliasing and Anisotropic Filtering 3Dc+ Avivo Video and Display Engine
Packaging
Package Contents

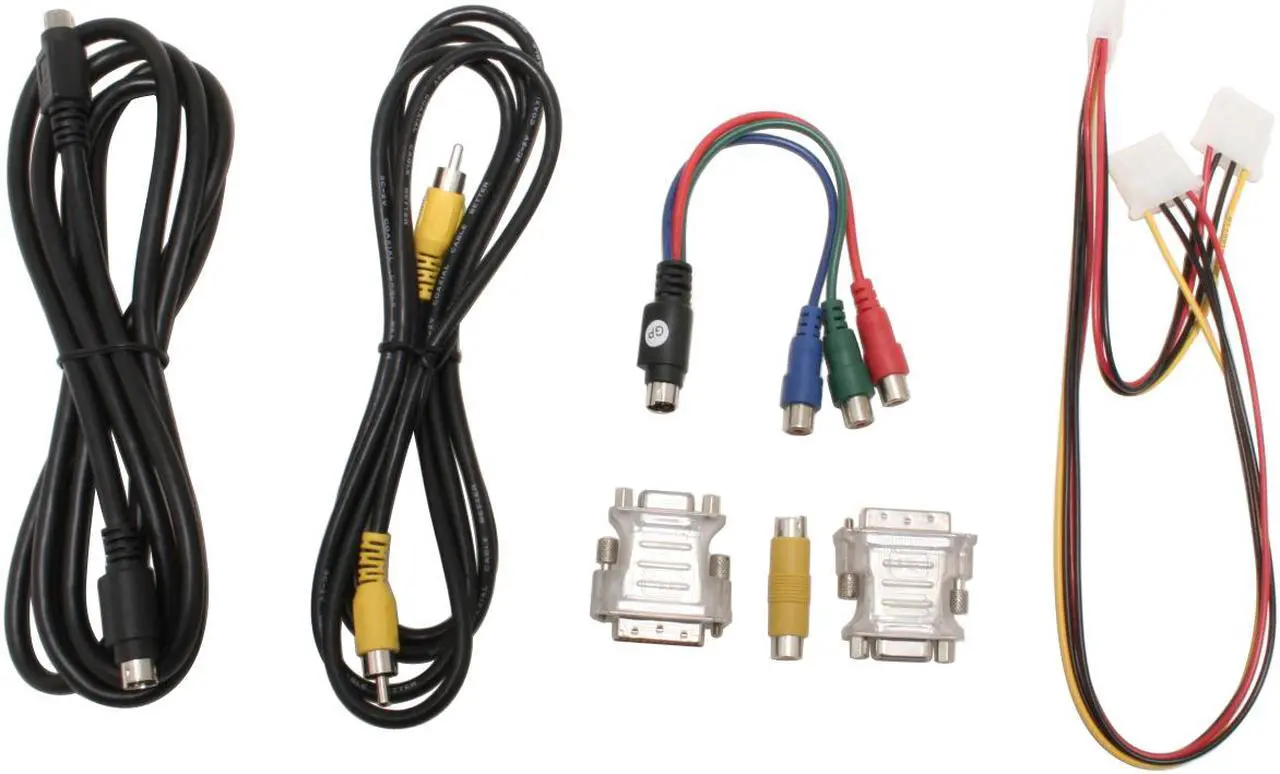

100171L Driver Disk HDTV Cable S-Video Cable Composite Cable 2x DVI to VGA/D-sub Adapter S-Video to Composite Adapter Power Cable
