Here's a video card for the gamer, engineer or artist with high standards. Using a Radeon X1950XT processor clocked at 625 MHz with 16 pixel pipelines, 256 MB GDDR3 memory, you're not talking "slow display" here!
It has dual DVI connectors (with two adapters so they can be used on VGA-style monitors as well), a VIVO port, and an integrated TV encoder putting out HDTV, or S-Video. Crossfire-ready (so make certain your power supply can handle it!), it features HDR tone mapping acceleration to map any input format to a 10 bit output. PCI Express support to keep up with that fast GPU, it's Vista ready and can display a resolution of 2560 x 1600.
The next generation of games and hi-res HDR applications is here already, so update to a card that knows how to talk to them.
Here's a video card for the gamer, engineer or artist with high standards. Using a Radeon X1950XT processor clocked at 625 MHz with 16 pixel pipelines, 256 MB GDDR3 memory, you're not talking "slow display" here!
It has dual DVI connectors (with two adapters so they can be used on VGA-style monitors as well), a VIVO port, and an integrated TV encoder putting out HDTV, or S-Video. Crossfire-ready (so make certain your power supply can handle it!), it features HDR tone mapping acceleration to map any input format to a 10 bit output. PCI Express support to keep up with that fast GPU, it's Vista ready and can display a resolution of 2560 x 1600.
The next generation of games and hi-res HDR applications is here already, so update to a card that knows how to talk to them.
Ultra-threaded EngineThe Radeon X1950 XT’s ultra-threaded engine features 48 individual pixel shader processors to support up to 512 simultaneous pixel threads. It is fully hardware compliant with Microsoft DirectX 9.0 Shader Model 3.0 programmable vertex and pixel shaders, so you can experience HDR and advanced anti-aliasing effects for incredible enhancements to lighting contour and color detail.
Ring bus memory controllerThe 512-bit ring bus inside the GPU greatly improves memory access. Optimized Z-buffer processing and extreme performances at high resolutions (including widescreen HDTV) come as part of the package.
HDR-Enabled with FSAAEnjoy silky-smooth 3D gameplay with the ATI Radeon X1K family’s exclusive support for HDR (High Dynamic Range) with FSAA (Full Screen Anti Aliasing) enabled.
ATI AvivoATI Avivo sets the bar for advanced imaging and video quality. Integrated into ATI's latest generation of graphics products, ATI Avivo delivers HDTV and next-generation HD disc capabilities with vibrant, sharp images, and the smoothest video playback ever offered by ATI. ATI Avivo also enables universal, professional-quality connectivity for TVs and displays, ensuring the ultimate digital entertainment experience on your PC.
ATI CrossFireATI’s CrossFire multi-GPU gaming platform propels your PC to a new pinnacle of performance. Developed from the same technology used with ATI-based commercial flight simulators, ATI CrossFire soars into a new dimension of graphics capability with multiple graphics processing units (GPUs) working together in your PC.
Windows Vista ReadyATI is working in partnership with Microsoft to unlock the potential of the new Windows Aero 3D desktop using ATI’s high performance graphics processors, including the Radeon X1950 XT. Don't let graphics be a barrier to a premium experience - upgrade to ATI. Windows Vista, powered by ATI, is a new visual dimension for business and personal computing.
Learn more about the Sapphire Tech 100186L
Model
Brand
SAPPHIRE
Model
100186L
Interface
Interface
PCI Express x16
Chipset
Chipset Manufacturer
AMD
GPU
Radeon X1950XT
Core Clock
625 MHz
PixelPipelines
16(48 Pixel shader processor )
Memory
Effective Memory Clock
1800MHz
Memory Size
256MB
Memory Interface
256-Bit
Memory Type
GDDR3
3D API
DirectX
DirectX 9
OpenGL
OpenGL 2.0
Ports
DVI
2 x DVI
TV-Out
HDTV / S-Video Out
VIVO
Yes
Details
Tuner
None
RAMDAC
400MHz
Max Resolution
2560 x 1600
CrossFireX Support
Yes
Cooler
With Fan
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Features
Features
Ultra-Threaded Shader Engine Avivo Video and Display Platform CrossFire
Packaging
Package Contents

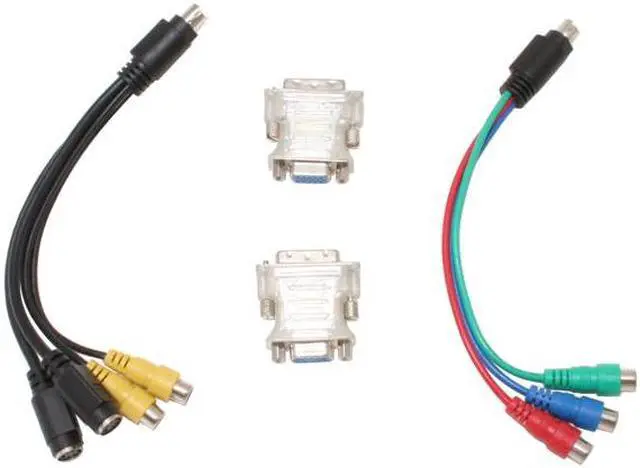

100186L Driver Disk HDTV Cable VIVO Cable 2 x DVI to VGA/D-sub Adapter
