Question 1

Can the card share any two of the monitors and still utilize the third monitor?

Accepted Answer

Yes, used this graphics card for a church projection PC.  The PC has two monitors and a third projector (monitor).  The left monitor is the left display and the right monitor on the desktop is mirrored to the display of the projector.  The people in church see what the use sees on the right display, but the left display is only seen by the user of the PC.  Also, this was done on Ubuntu Linux, just needed to install the AMD drivers and do the AMD setup.

Question 2

I just installed this video card in my computer. I have two monitors connected by DVI and they work fine. I am trying to connect the third by HDMI but I cannot get it to recognize the monitor. I have updated the drivers.

How do I get the third monitor to work?

Accepted Answer

I used a HDMI to VGA adapter and manually set the resolution of the monitor. The setup I am using is the 2xDVI to 2x 1920x1200 Sceptre 24" monitors + the HDMI with a VGA adapter thru an Iogear KVM to a HannsG 1920x1200 27" monitor. I have to manually set the resolution for the HDMI with VGA adapter because it can't sense the resolution of the HannsG.

Question 3

I am trying to connect 3 AOC 24" monitors to my computer. Would the SAPPHIRE FleX 100322FLEX video card let me view each monitor separately/each monitor a different web site or document?

Accepted Answer

Yes. I currently have 3 23" Acer G235H monitors setup as an extended desktop. You may need to download the most current driver before completing your setup though.

Question 4

I am looking for a video card that will fit in a Dell Inspiron 660s and provide for dual monitor output.  Will this work?  I was told by a Dell rep that the Nvdia GT630 would fit, but the SFF case doesn't seem wide enough for his recommendation.

Accepted Answer

I installed my card in a micro atx 2U rack mount build which is 3 1/5 inches of install room to work with.The specs I saw for the 660s read 3.94 width,which is good provided nothing that's crammed on the inside is going to obstruct it .It looked like a tight fit. These are nice low profile cards .Good Luck

Question 5

Will this card support 2 DVI monitors and an HDMI TV at the same time? Would like to watch video on the plasma, along with having 2 different displays on the DVI monitors.  Windows 7 PRO 64bit

Accepted Answer

Yes it will.  That is the exact setup I have.

Question 6

I have 3 monitors that only have VGA connections, can I use this card along with 3 DVI to VGA adapters to run all 3 of my monitors?  I'd be using this for office set up which would consist of 1 monitor for email, chat and other communications, and the other 2 for web viewing with some YouTube to pass the time when I need a break from dealing with some of my clients.

Accepted Answer

I dont see why not.

but because one port is hdmi and already uses an adapter (if ur going to dvi).  I would reccommend purchasing 3 dvi to vga monitor cables. the less adapters the better.

this way u just go straight dvi to vga with 2 ports. and hdmi to dvi to vga with the other port

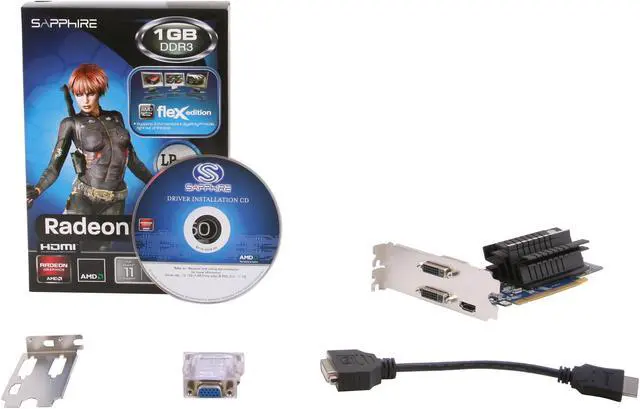

and yes the card comes with the 1 hdmi to dvi adapter.

Question 7

will this work in a dell optiplex 745 slimline computer. i tried ati-7120035100g and the computer won't even boot with it installed. ?

Accepted Answer

I am using the card with a like Dell, but the full tower version.  You may want to try this.  (1) remove the card (2) boot into the BIOS (Del at boot) (3) change the video setting from AUTO to use the PCI card (4) power off and install the card (5) power up and see if it works.

Question 8

I purchased this card and installed into a clone system with an Intel mainboard pn/ DQ57TM.  It worked for a day with 3 screens but after turning it off, the next day the computer would not power on till I removed the card.  I thought it was a power issue so I replaced the 350w power supply with a 600w power supply but still would not power on.  This card does not have a power connection.  What do you recommend?

Accepted Answer

Had similar problem with a mini-tower HP. Disable onboard video in Bios. Remove (uninstall) all other non-Radeon drive software (e.g. Nvidia software and drivers). This resolved my problems.

Question 9

What resolutions can this card support?

Accepted Answer

This card can support up to a maximum resolution of 2560 x 1600. Anything lower would be achievable.

Question 10

Can I install two video cards of this model into a desktop to drive six monitors?

Accepted Answer

It is possible to do so, however, do not expect to get a lot of gaming performance out of them. Driving 6 monitors is going to be tough for 660's, even in SLI. If you have more of a workstation than an everyday PC, look at NVIDIA Quadro cards or AMD FireGL cards.

Chipset Manufacturer	AMD
GPU	Radeon HD 6450
Core Clock	625 MHz
Stream Processors	160 Stream Processors

Effective Memory Clock	1600MHz
Memory Size	1GB
Memory Interface	64-Bit
Memory Type	DDR3

DirectX	DirectX 11
OpenGL	OpenGL 4.1

RAMDAC	400MHz
Max Resolution	2560 x 1600
Eyefinity Support	Yes
CrossFireX Support	No
Cooler	Fanless
Thermal Design Power	30W
System Requirements	Minimum of a 400 Watt power supply.
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Form Factor	Low Profile Ready
Low Profile Bracket Included	Yes

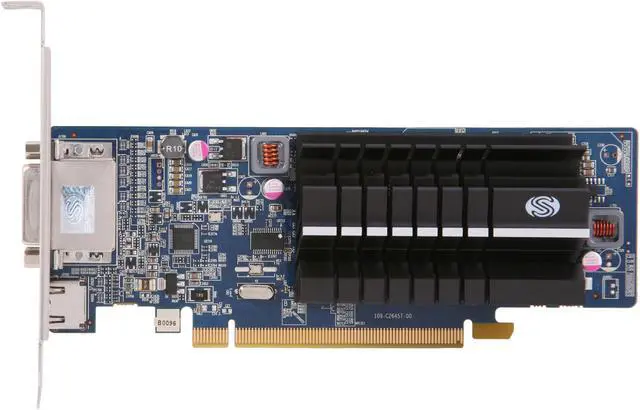

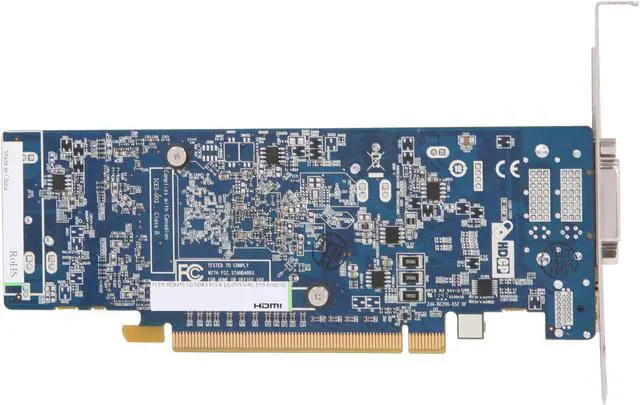

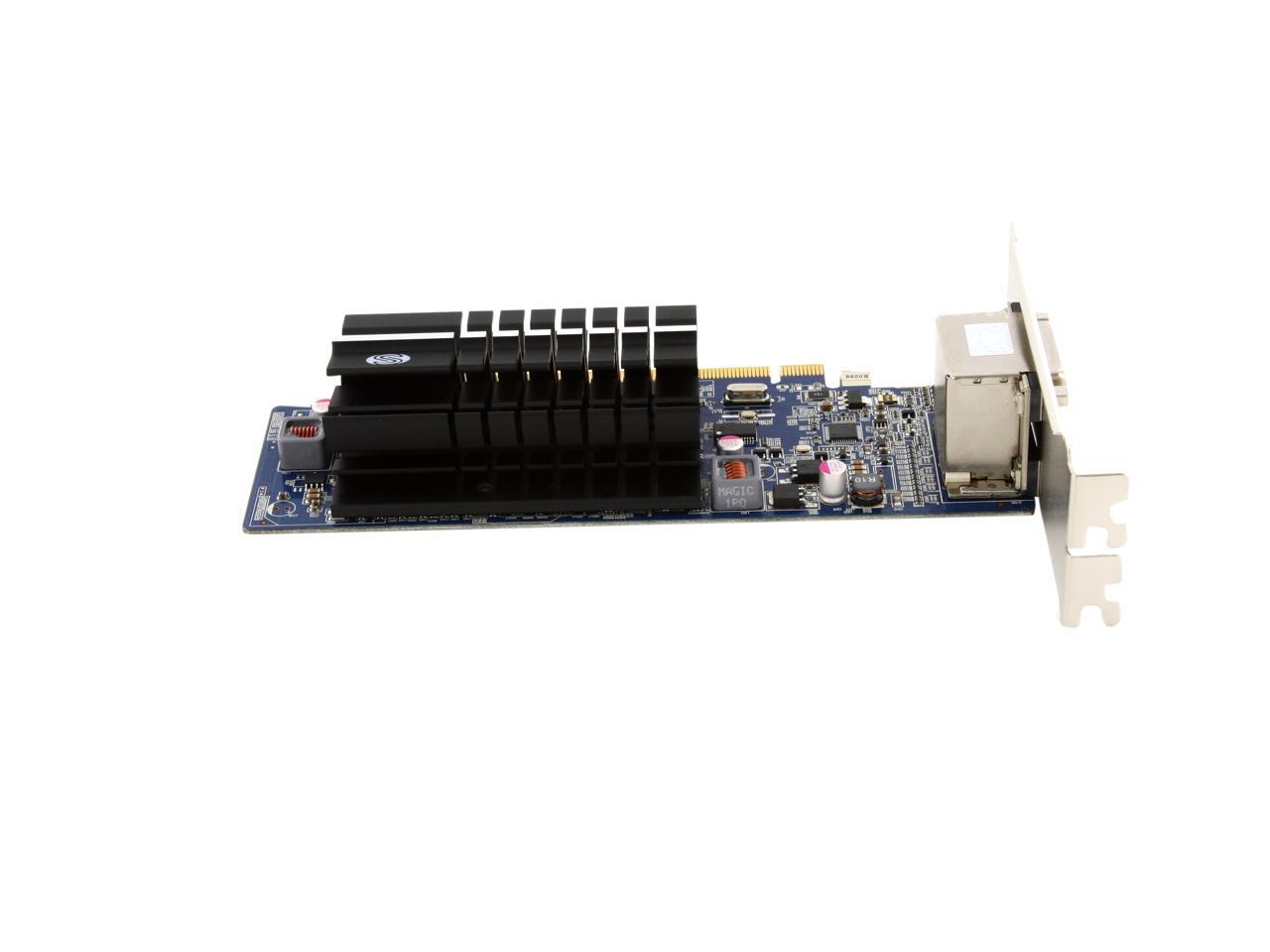

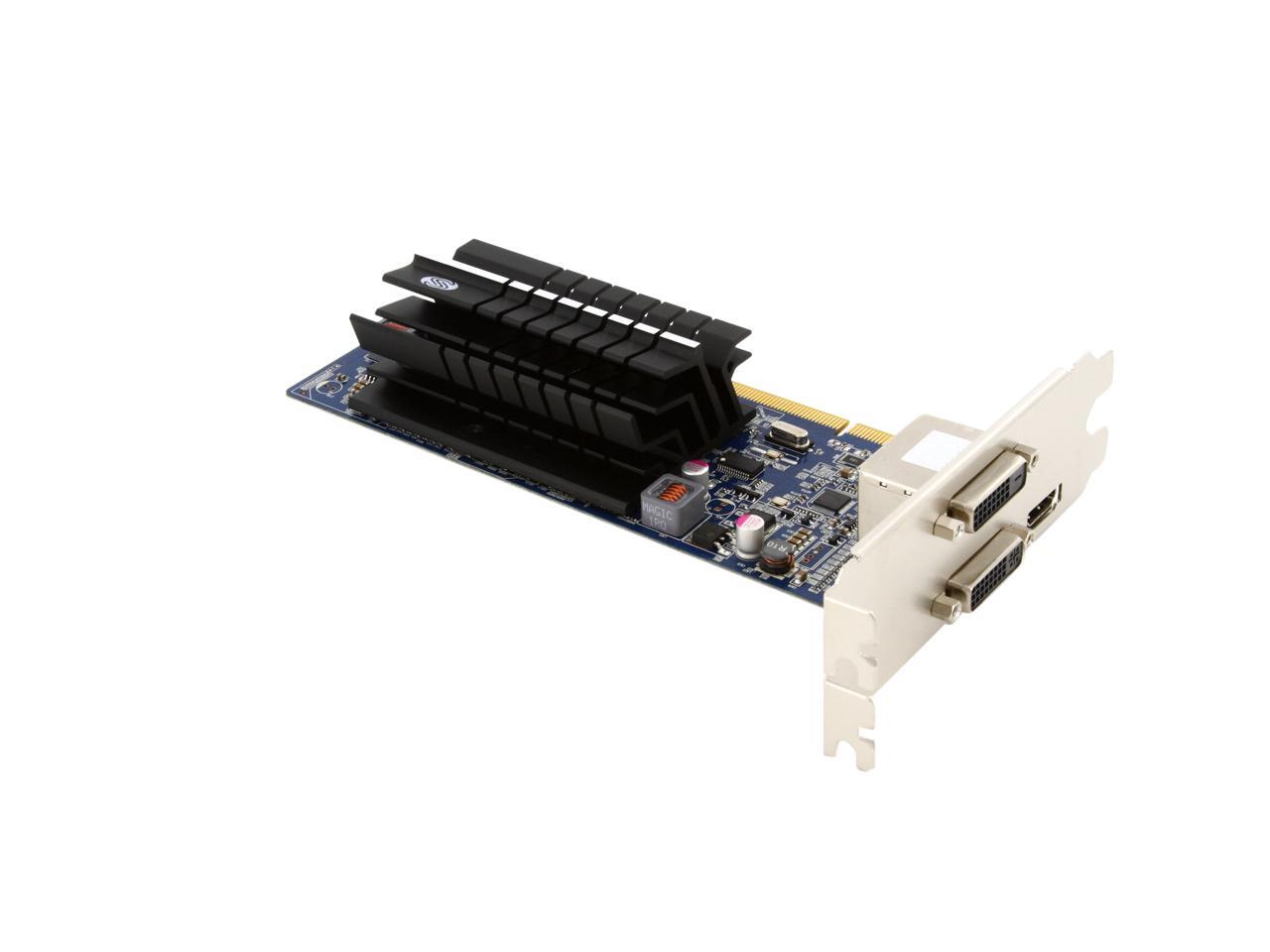

SAPPHIRE FleX Radeon HD 6450 1GB DDR3 PCI Express 2.1 x16 Low Profile Ready Graphics Card 100322FLEX

Learn more about the Sapphire Tech 100322FLEX

Customer Reviews of the Sapphire Tech 100322FLEX

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	SAPPHIRE
Series	FleX
Model	100322FLEX

Ports

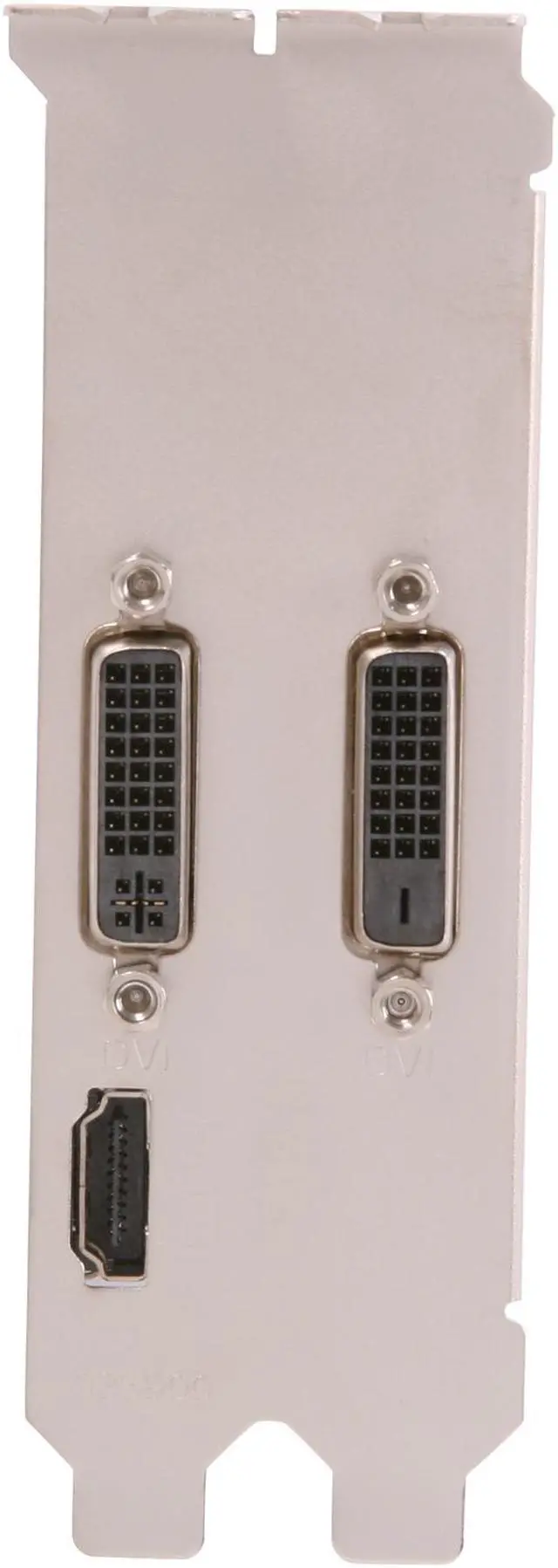

HDMI	1 x HDMI
DVI	2 x DVI (1 Single Link, 1 Dual Link)

Item#: N82E16814102960
