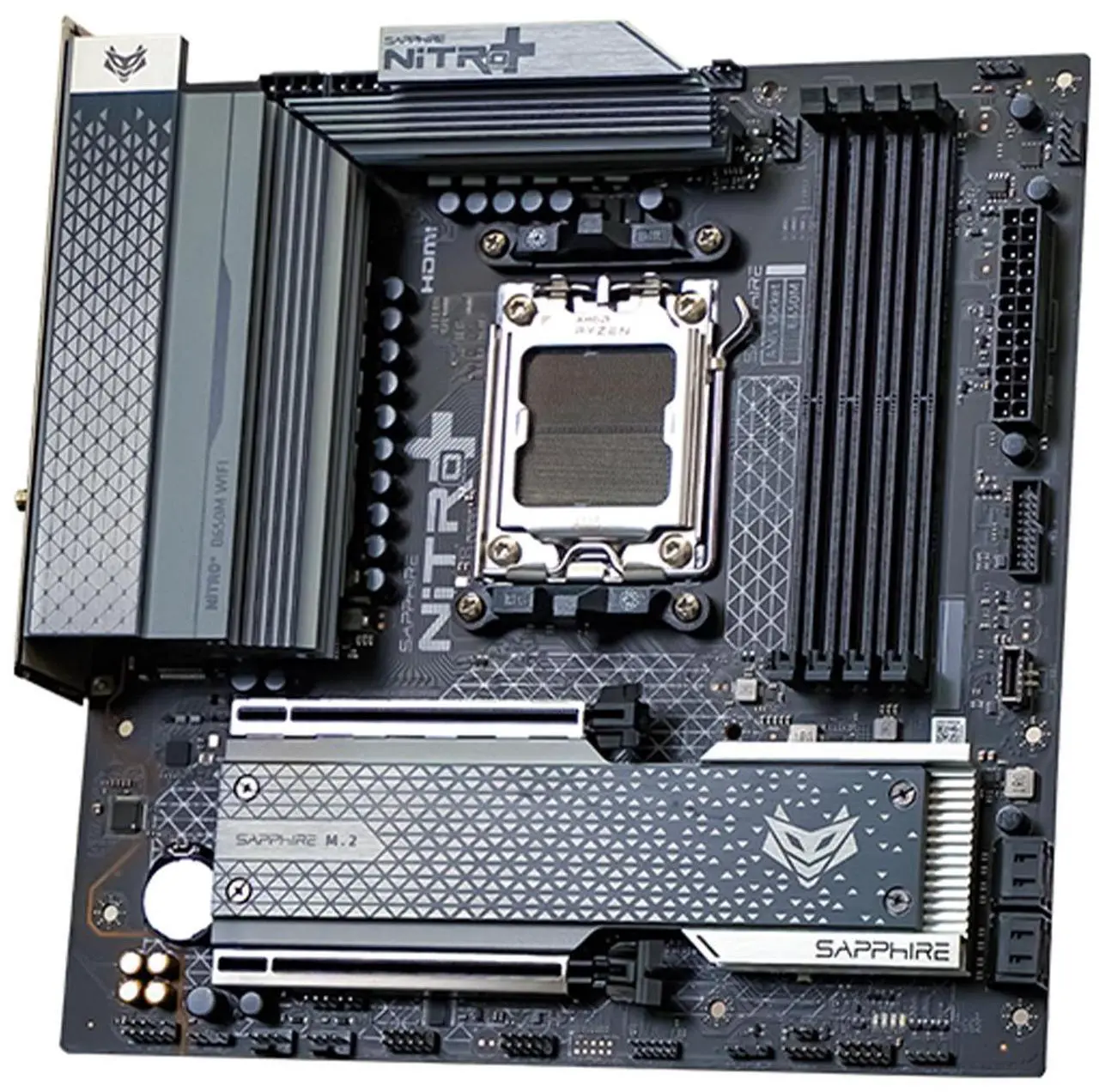

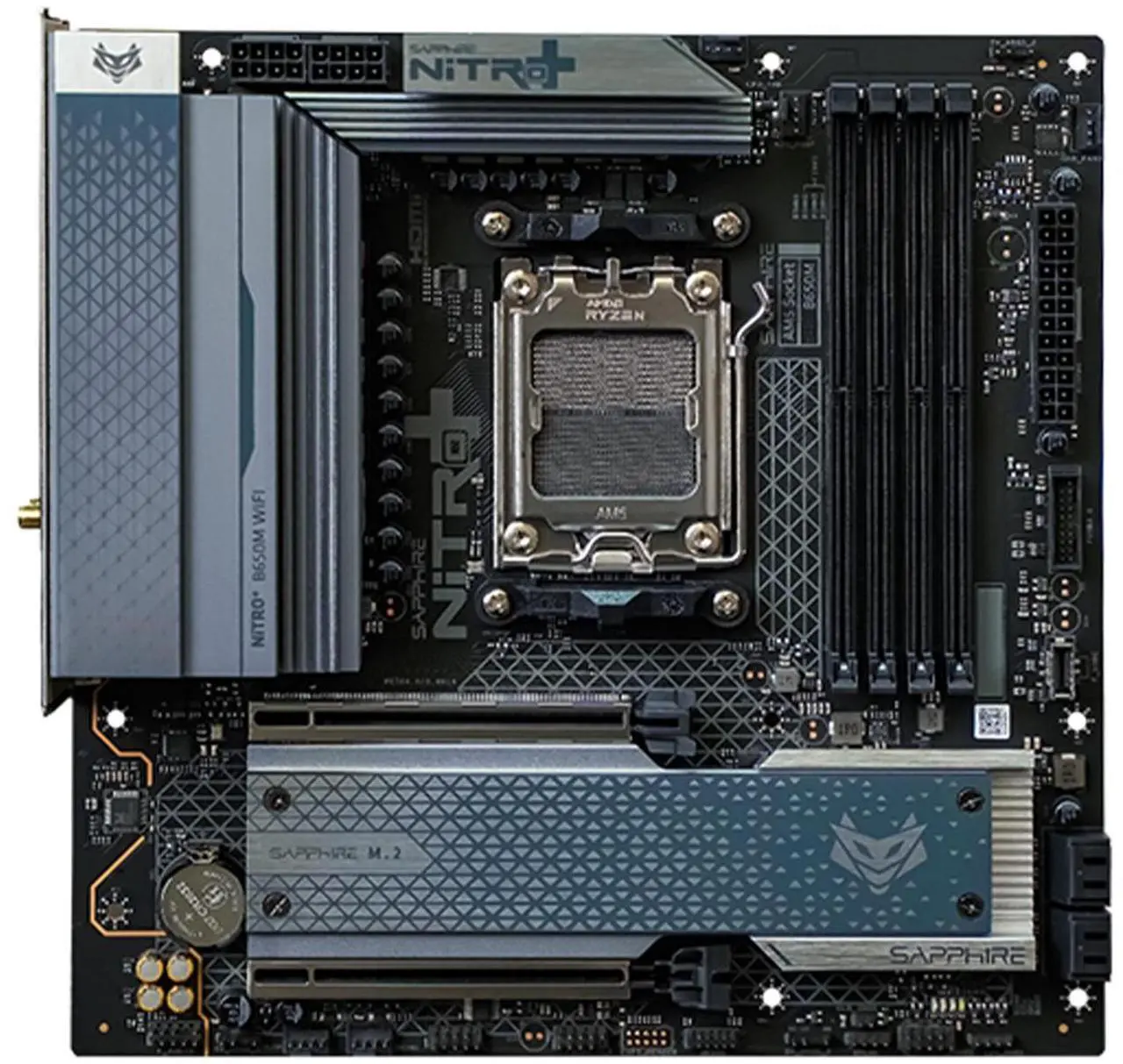

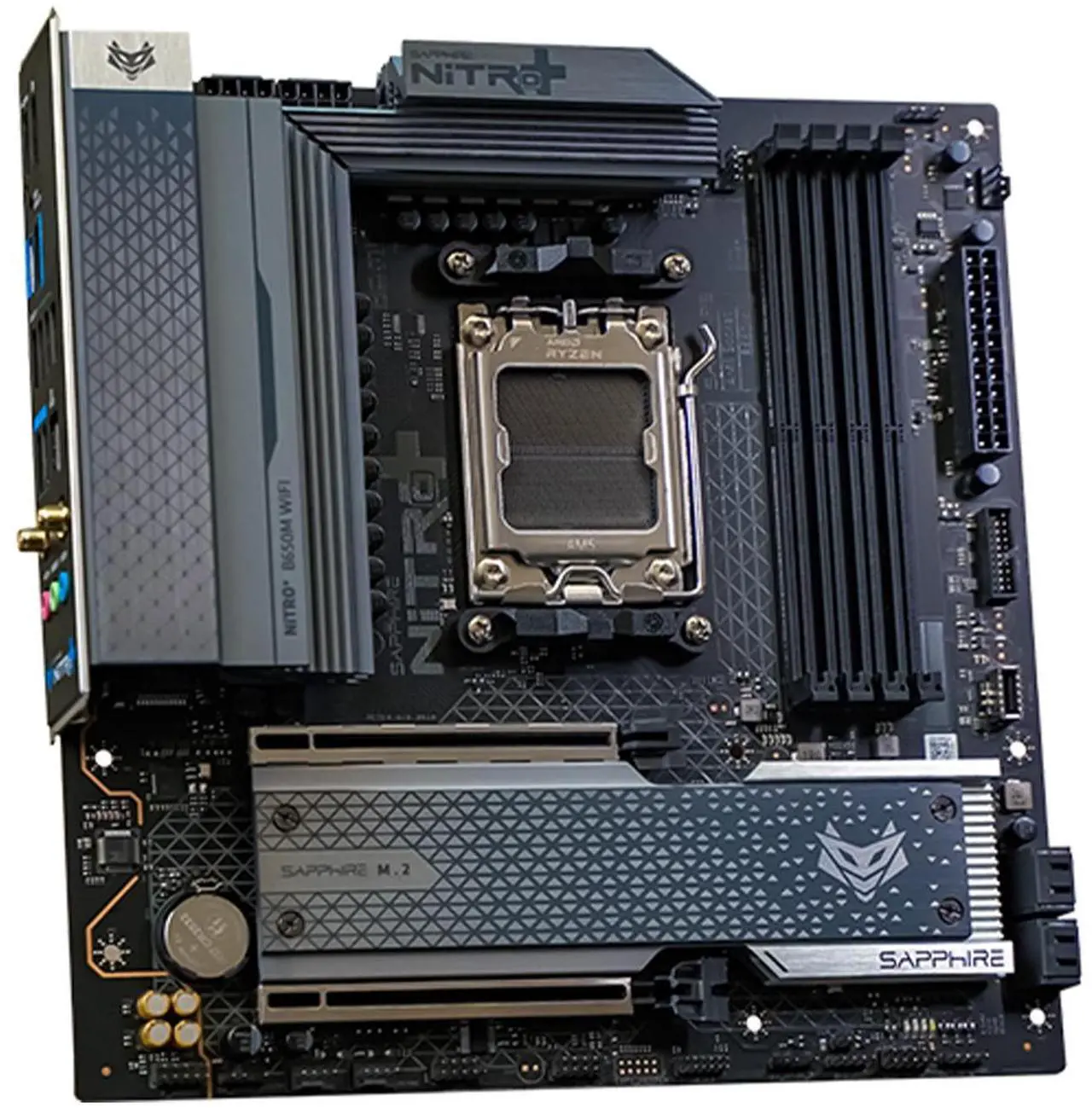

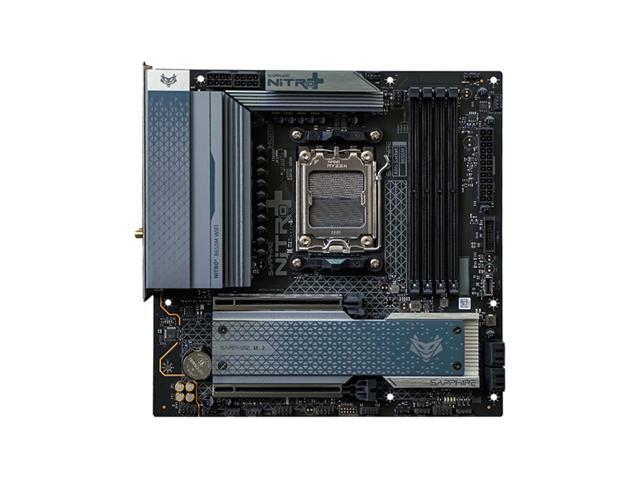

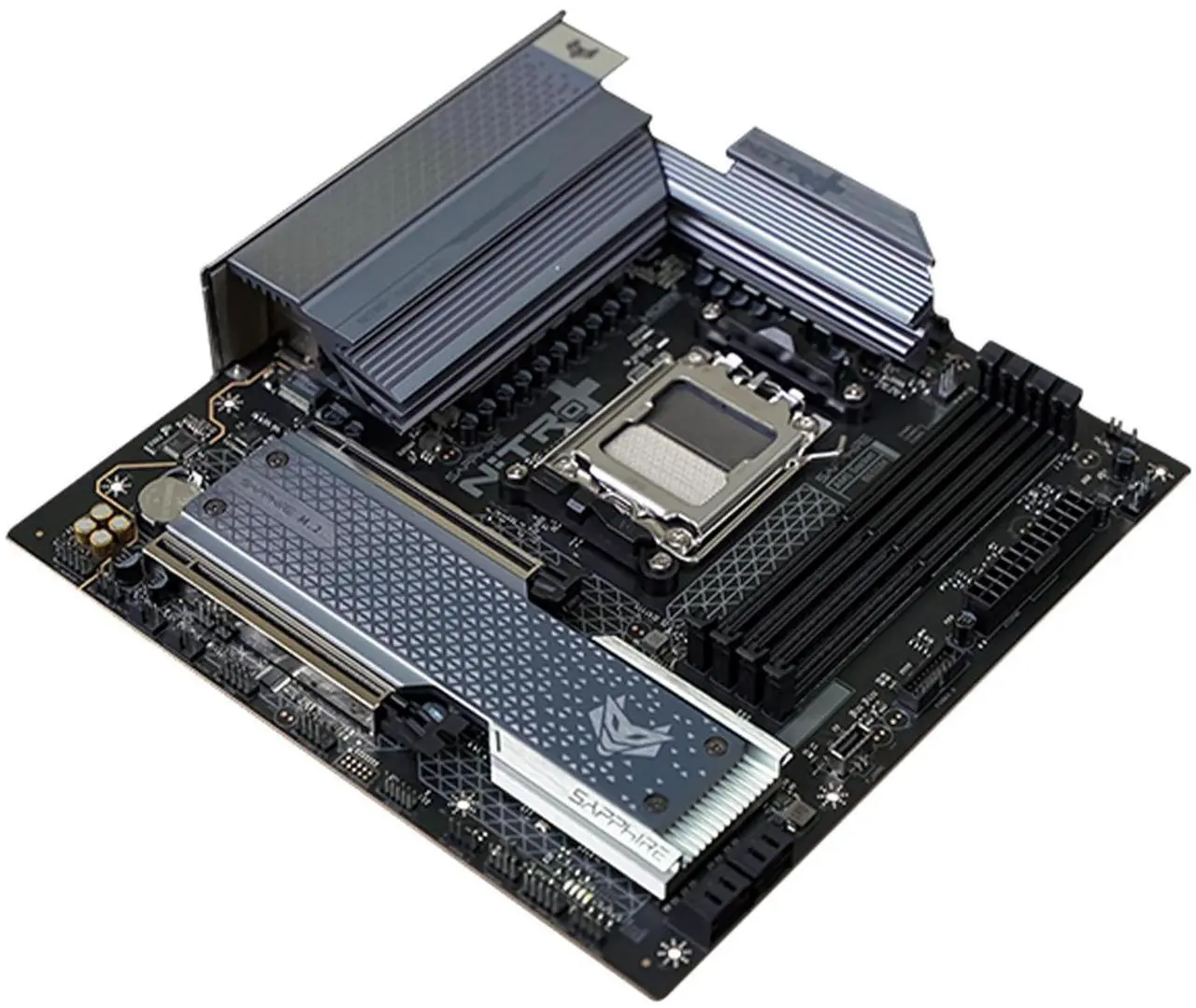

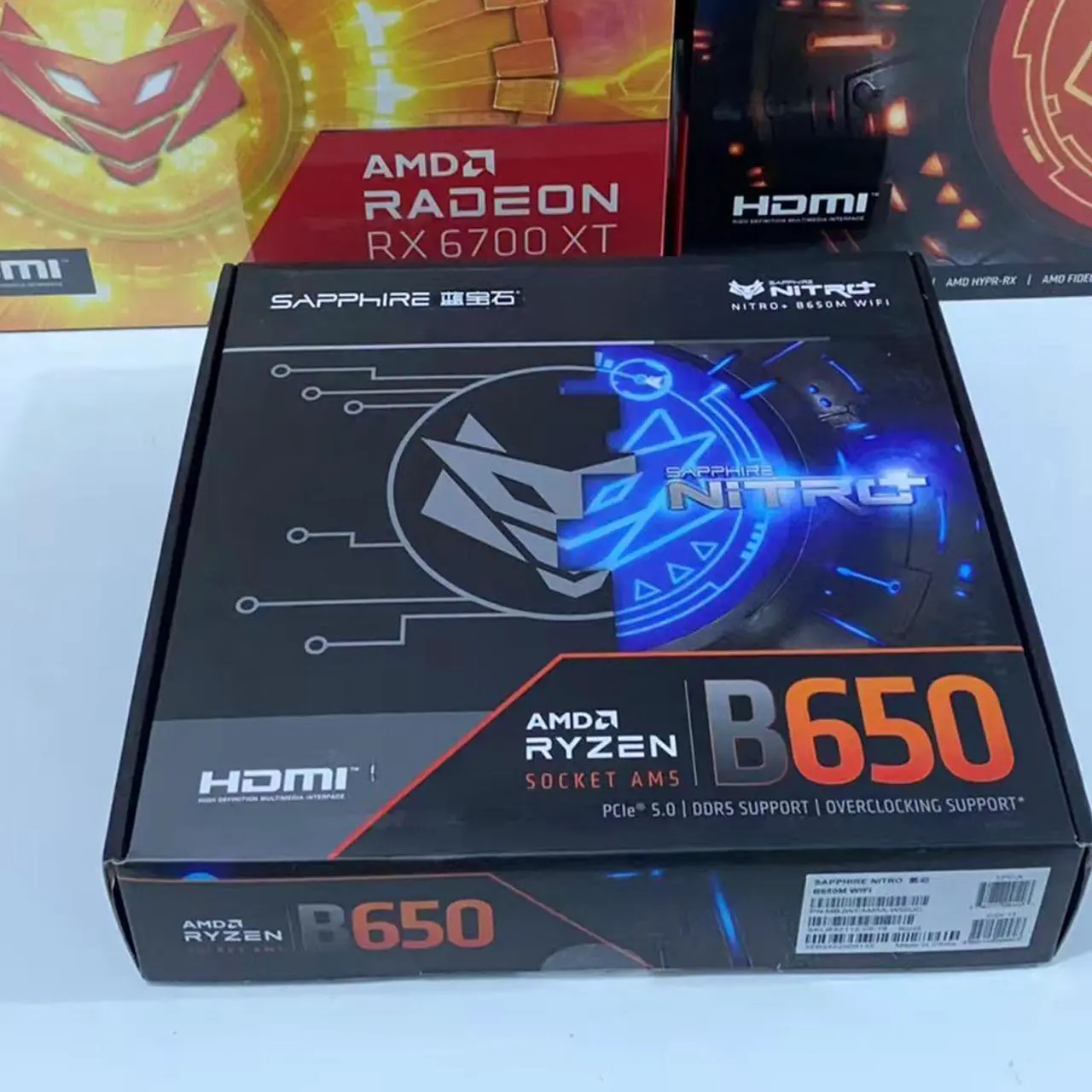

Sapphire Tech NITRO+ B650M WIFI Motherboard, Desktop Motherboard, for AMD Razorback 9000/8000/7000 series processor, WIFI6+Bluetooth 5, A.M.D B650, AM5, 1*PCIE5.0x16,1*PCIE4.0x4, 1*HDMI, 1*DP

SAPPHIRE NITRO Nitrogen Motion B650M WIFI
Product

Specifications

CPU Support
Supports AMD Riptide 7000 Series Desktop Processors

Supports AMD Riptide 8000 Series Desktop Processors

Supports AMD Rexon 9000 Series Desktop Processors

- AM5 socket processor support

Chipset
AMD B650 Chipset

Memory Support
x DDR5 memory slots

- DDR5 memory only

- Up to 7600 MT/s (OC)

- Maximum system memory capacity: 48GB * 4 total 192GB

- Supports dual-channel memory technology

- Supports Extended Overclocking Profile (EXPO) memory modules and Extreme Memory Profile (XMP).

Expansion Slots
1 PCIE 5.0 x16 slot

1 PCIE 4.0 x4 slot

Storage Interfaces
1x M. 2 up to PCIe 5.0 X4 (depending on CPU support)

1x M. 2 up to PCIe 4.0 X4

4x SATA 6Gb/s ports

Audio
Realtek® ALC897 Hi-Fi decoder chip (up to 5.1 channels)

Onboard NIC
Realtek® RTL8125GB Network Controller

- 2.5G wired network support

Wi-Fi 6 Module

- Support 802.11 a/b/g/n/ac/ax

- Support 2.4GH z/5GHz wireless band

- Support Bluetooth 5 wireless transmission

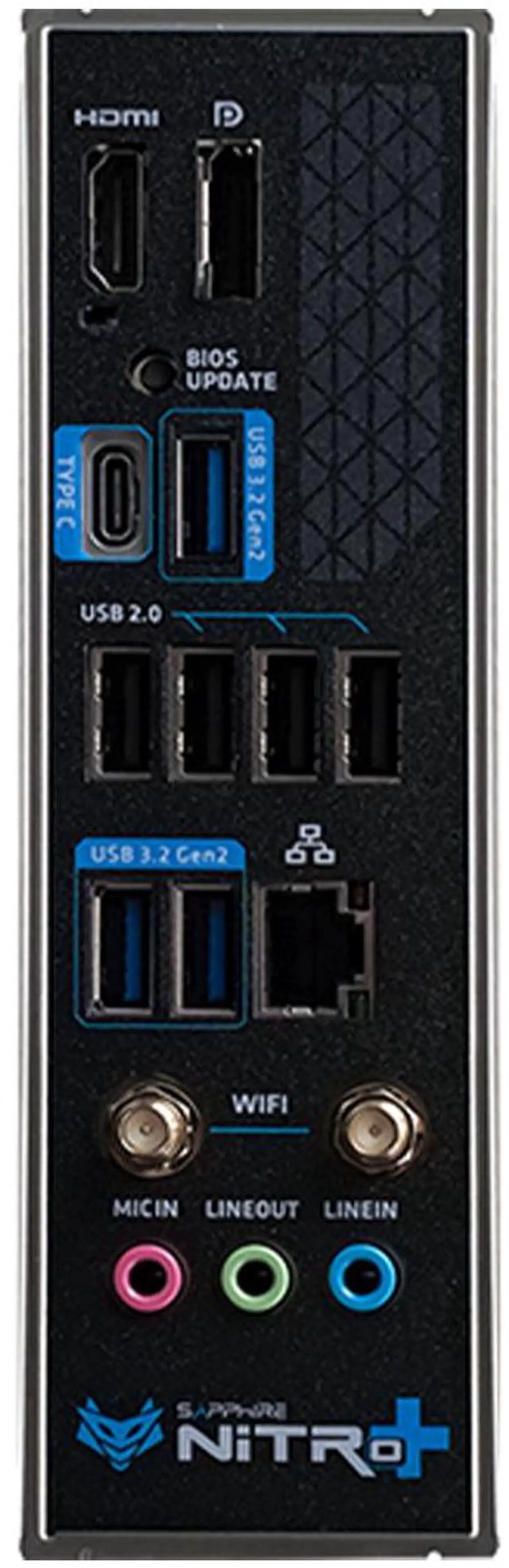

Rear I/O Interface
1 DisplayPort Interface

1 HDMI port

1 BIOS Flush Button

4 USB 2.0 ports

3 USB 3.2 GEN2 10G Ports

1 USB 3.2 GEN2 10G Type-C connector

1 x 2.5GLAN (RJ45) connector

2 WiFi 6-antenna ports

3 Audio Jacks

Front Expansion Ports
1 USB 2.0 pin to expand 2 USB 2.0 ports (FUSB 2.0 _1)

1 USB 3.2 Gen 1 pin expands 2 USB 3.2 Gen 1 Type-A ports (FUSB 3.0 )

1 USB 3.2 Gen 1 5G pin expands 1 USB 3.2 Gen 1 5G Type-C port (F_USBC)

Onboard Pins
1 CPU fan pin (CPU_FAN)

1 water cooling pump pin (AIO_PUMP)

3 system fan pins (CHA_FAN1, CHA_FAN2, CHA_FAN3)

1 front audio pin (F_AUDIO)

1 front panel pin (F_PANEL)

3 x 5V ARGB pins (5V_ARGB_1, 5V_ARGB_2, 5V_ARGB_3)

1 x 12V RGB pin (12V_RGB1)

1x Speaker Pin (SPEAK)

1 serial port pin (COM)

1x Clear CMOS jumper (CLR_CMOS)

1 Flash BIOS pin (FL_BIOS1)

1 BIOS burner pin (JBIOS)

1 Diagnostic card pin (ESPI_HEADER)

Motherboard

Specifications

MATX version 245mm x 245mm
