Learn more about the Sapphire Tech 11305-02-20G
Model| Brand | SAPPHIRE |
|---|
| Series | PULSE |
|---|
| Model | 11305-02-20G |
|---|
Interface| Interface | PCI Express 4.0 |
|---|
Chipset| Chipset Manufacturer | AMD |
|---|
| GPU Series | AMD Radeon RX 6000 Series |
|---|
| GPU | Radeon RX 6800 |
|---|
| Game Clock | 1950 MHz |
|---|
| Boost Clock | 2170 MHz |
|---|
| Stream Processors | 3840 Stream Processors |
|---|
Memory| Effective Memory Clock | 16 Gbps |
|---|
| Memory Size | 16GB |
|---|
| Memory Interface | 256-Bit |
|---|
| Memory Type | GDDR6 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|
| HDMI | 1 x HDMI 2.1 |
|---|
| DisplayPort | 3 x DisplayPort 1.4 |
|---|
Details| Max Resolution | 7680 x 4320 |
|---|
| Virtual Reality Ready | Yes |
|---|
| Cooler | Triple Fans |
|---|
| Operating Systems Supported | Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing |
|---|
| Thermal Design Power | 280W |
|---|
| System Requirements | Minimum 650-Watt Power Supply.
2 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended. |
|---|
| Recommended PSU Wattage | 650W |
|---|
| Power Connector | 2 x 8-Pin |
|---|
Features| Features | Sapphire Features:
Dual BIOS
Digital Power Design
Fuse Protection
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features:
AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI Express 4.0 Support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI 2.1 VRR
Video Streaming up to 8K
Radeon VR Ready Premium
AMD FidelityFX
Radeon Image Sharpening
Radeon Anti-Lag
Radeon Software
Game Driver Optimizations
High Performance 4K Gaming |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 303 mm |
|---|

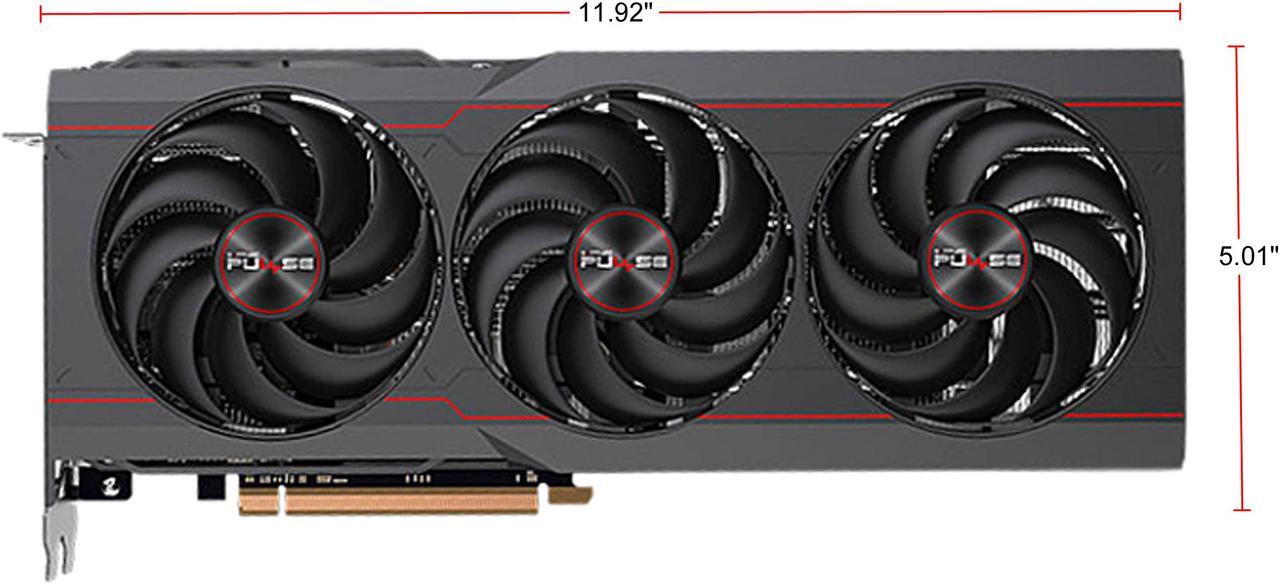

| Card Dimensions (L x H) | 11.92" x 5.01" |
|---|
| Slot Width | 2.5-slot |
|---|
Additional Information| Date First Available | November 07, 2024 |
|---|
