Question 1

What am I ignorant of here?  How can you load the operating system or programs without a drive bay for a DVD R/W

Accepted Answer

Optical bays are becoming obsolete.  Think how often you use them.  This case is for those looking for a more clean build.  OSes can be installed via USB flash.  You can use a USB Optical drive for those rare occasions you need to use optical.

Question 2

Is the side panel window glass or acrylic?

Accepted Answer

Definately not glass since the 2016 version will have tempered glass panels (both sides will be tempered glass.

Goto youtube and check out Hardware Canucks channel and the CES show.  They got a blurb about the new tempered glass panels.

Question 3

Planning on buying this, how good is the airflow?

Accepted Answer

Reasonable, for my purposes. I'd recommend aio on the CPU and GPU. There's a company making a modified front panel with mesh for airflow if you're concerned about it and want the option later. Think they're called modmymods or something along those lines. I'd recommend the gunmetal if it won't clash with your set up. Cheers

Question 4

will this fit a alienware x51 r2 motherboard cuz its a mini itx im really looking forward to getting this but i want to make sure it fits?

Accepted Answer

Absolutely yes, this case will fit small motherboard, medium ITX and large size gaming motherboard. All you gotta do is line up the screw hole stud do the size of your motherboard it comes with it the stud.

Question 5

What color fans does this case came come with?
Some pictures indicate white fan blades, but the silver case shows black blades.
It also appears the glass window version only comes with black fans.

Accepted Answer

Mine came with white fans. I have the Satin Black version. They are decent for stock fans.

Question 6

Are the included fans easy to disassemble for custom painting? The white doesn't go well with my set up

Accepted Answer

typically fans are a little difficult to take apart, i would recommend buying fans that match the color scheme you want. there are some guides on taking fans apart on youtube that should guide you. worse case you mess up a fan taking it apart only to find out you should of bought some others or replacements.

Question 7

Are the features really worth the price tag?

Accepted Answer

On a feature front, this case offers nothing you can't get in a significantly cheaper alternative from a functionality perspective.  The reason for going with the Phanteks Evolv is because you want:
- a really well built case
- a minimalist look/design that just says awesome (subjective)
- support for a custom water cooling solution
- support for various fan configurations
- excellent cable management support
- easy to disassemble for cleaning dust filters, swapping out parts, etc

and because you just love the look of the case.  Be warned though that the paint feels very delicate and scratching the case is very easy if you aren't really careful.  That is my one complaint.

Question 8

Can you have the pump mount and the 3.5" drive at the same time?

Accepted Answer

Yeah! I've had mine for about a year now, i have a 2.5" ssd, 2 3.5" hard drives and i also have a full custom watercooling loop, the pump has a spot between the 3.5" bays and the power supply, with plenty of room.

Question 9

Will this case fit a 12.01" x 10.71" Motherboard? On Phanteks' site it says it will support E-ATX up to 264mm wide.

Accepted Answer

Yes it will fit any motherboard that isnt bigger than an E-ATX...  Which is a pretty big board.

Question 10

Does the fan hub also work for four-pin fans? I notice they only have three, but many of my case fans are PWM and have the four pins.

Accepted Answer

Yes 4pin fans fit and work fine.

Case Specifications

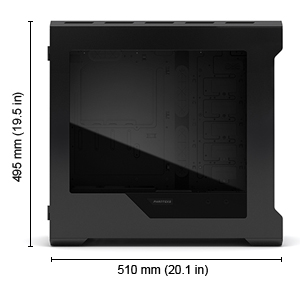

Dimension	235 mm x 495 mm x 510 mm (W x H x D) 9.25 in x 19.5 in x 20.1 in
Form Factor	Midtower Chassis
Material(s)	Aluminum (3mm) Exterior, Steel Chassis
Motherboard Support	E-ATX *(up to 264mm wide), ATX, Micro ATX, Mini ITX
Front I/O	2x USB 3.0, Mic, Headphone, Reset

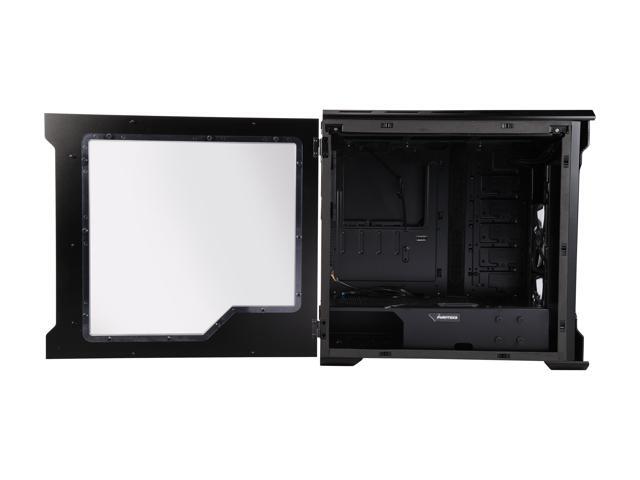

Side Window	Yes

Expansion & Drive Bays

Expansion slots	7
Internal 3.5"	8x (5x included)
Internal 2.5" (dedicated)	3x (2x included)

Cooling	120mm fan	140mm fan

Front	3x	2x (included)
Top	3x	2x
Rear	1x	1x (included)

Liquid Cooling	120mm radiator		140mm radiator

Front	Up to 360		Up to 280
Top	Up to 360		Up to 280
Rear	120		140

Clearance

Graphic card	420 mm (16.54 in) No HDD brackets 300 mm (11.8 in) HDD brackets installed
PSU	318 mm (12.5 in)
CPU cooler	194 mm (7.6 in)
Cable management	35 mm (1.38 in)
Memory clearance (motherboard - fan)	120mm: 68 mm (2.68 in) 140mm: 48 mm (1.89 in)

Packaging Information	PH-ES515P

Package Dimension	324 mm x 590 mm x 577 mm(WxHxD)
Net Weight	10,2 kg (22.0 lbs)
Gross Weight	11,9 kg (24.3 lbs)

Warranty

Length	5 Years Limited

Brand	Phanteks
Series	Enthoo Evolv
Model	PH-ES515E_BK

Type	ATX Mid Tower
Color	Satin Black
Case Material	Aluminum / Steel
With Power Supply	No
Motherboard Compatibility	Micro ATX / ATX / Mini ITX / E-ATX
Side Panel Window	Yes

Internal 3.5" Drive Bays	8x (5x included)
Internal 2.5" Drive Bays	3x (2x included)
Expansion Slots	7

Fan Options	Front: 3 x 120mm fan / 2 x 140mm fan (included) Top: 3 x 120mm / 2 x 140mm fan Rear: 1 x 120mm fan / 1 x 140mm fan (included)
Radiator Options	Front - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Rear - Up to 140mm / Top - Up to 280mm / Top - Up to 360mm

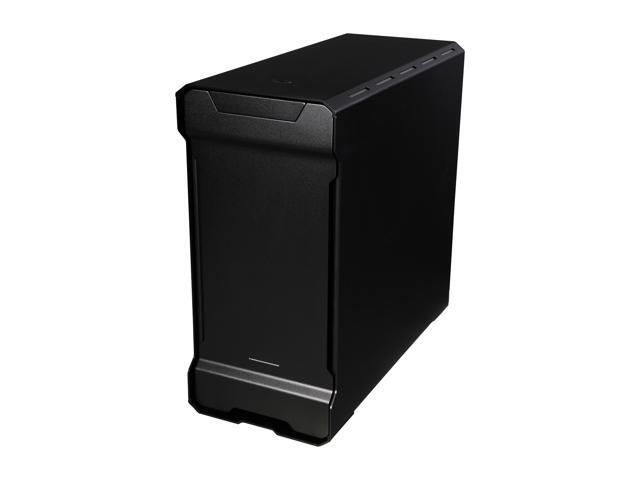

Phanteks Evolv PH-ES515E_BK Satin Black Aluminum / Steel ATX MidTower Computer Case

Phanteks Enthoo EVOLV ATX Mid Tower Chassis

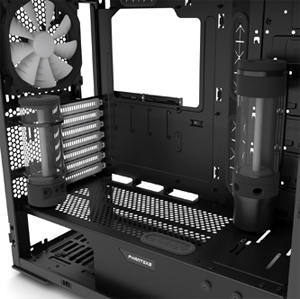

EXTREME COOLING

CABLE MANAGEMENT

ACCESSORIES

Learn more about the Phanteks PH-ES515E_BK

Customer Reviews of the Phanteks PH-ES515E_BK

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max GPU Length	Graphic Card: 420 mm (16.54 in) 300 mm (11.8 in) Optional HDD brackets installed
Max CPU Cooler Height	194 mm
Dimensions (H x W x D)	19.50" x 9.25" x 20.10"
Weight	22.00 lbs.
