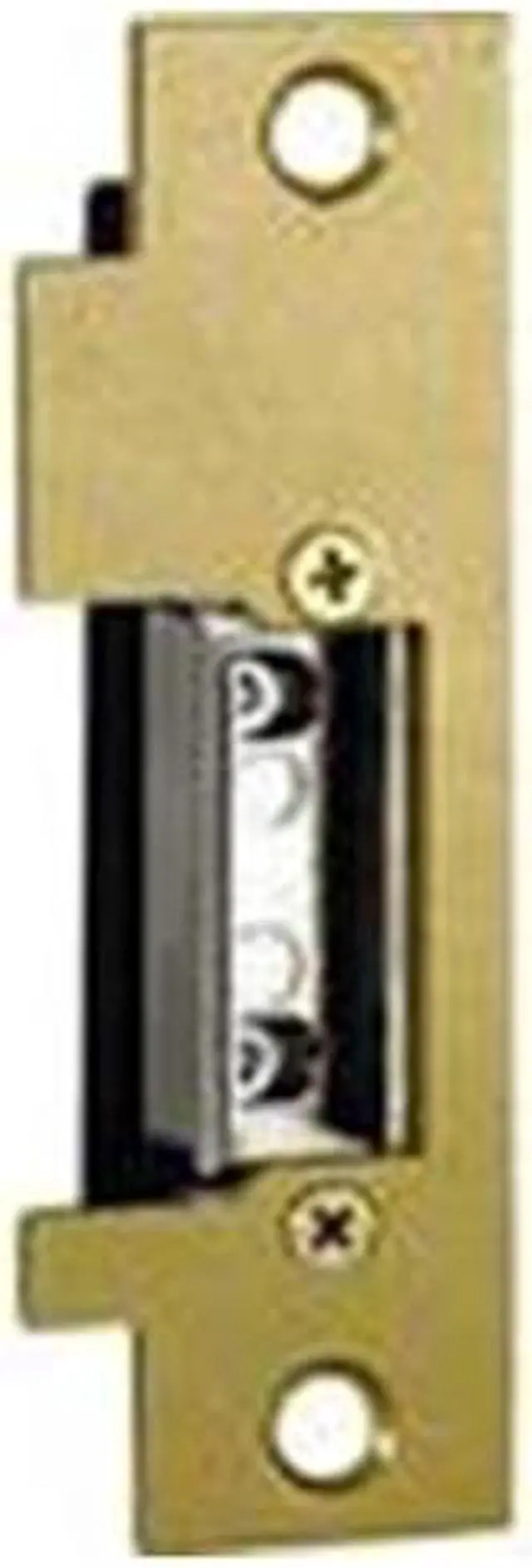

Trine 2009 Brass Powder Coated Electric Door Strike 1-1/4" x 4-7/8" With Adjustable Latch And 16 - 24 Volt AC/DC
- Type: Electric Door Strike
- Finish: Brass Powder Coated
- Voltage: 16 - 24 AC-DC
- Face Plate: 1-1/4" x 4-7/8"
- Backset: 1-9/16"
- Cavity Dimensions (DxWxH): 9/16" x 5/8" x 1-11/16"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Trine 2009 Brass Powder Coated Electric Door Strike With Adjustable Latch, specially designed as a replacement installation for metal jambs. This strike features 16 - 24 Volt AC/DC, a narrow style 1-1/4" x 4-7/8" face plate, a mortise backset of 1-9/16", a cavity depth of 9/16", a cavity width of 5/8" and a cavoty height of 1-11/16. The centerline of the latch is 3/8" inches below ANSI centerline for offset applications. This stike fits a standard 4-7/8" ANSI prep with little jamb modification, and it should be used with locksets having up to a 5/8" throw based on a 1/8" door gap.
- Type: Electric Door Strike
- Latch: 1/8" Horizontal Latch Adjustment
- Finish: Brass Powder Coated
- Voltage: 16 - 24 AC-DC
- Face Plate Size: 1-1/4" x 4-7/8"
- Mortise Backset: 1-9/16"
- Cavity Dimensions (DxWxH): 9/16" x 5/8" x 1-11/16
- Durability: 500,000 life cycles
- Holding Force: 900 lbs
- Quantity: 1
