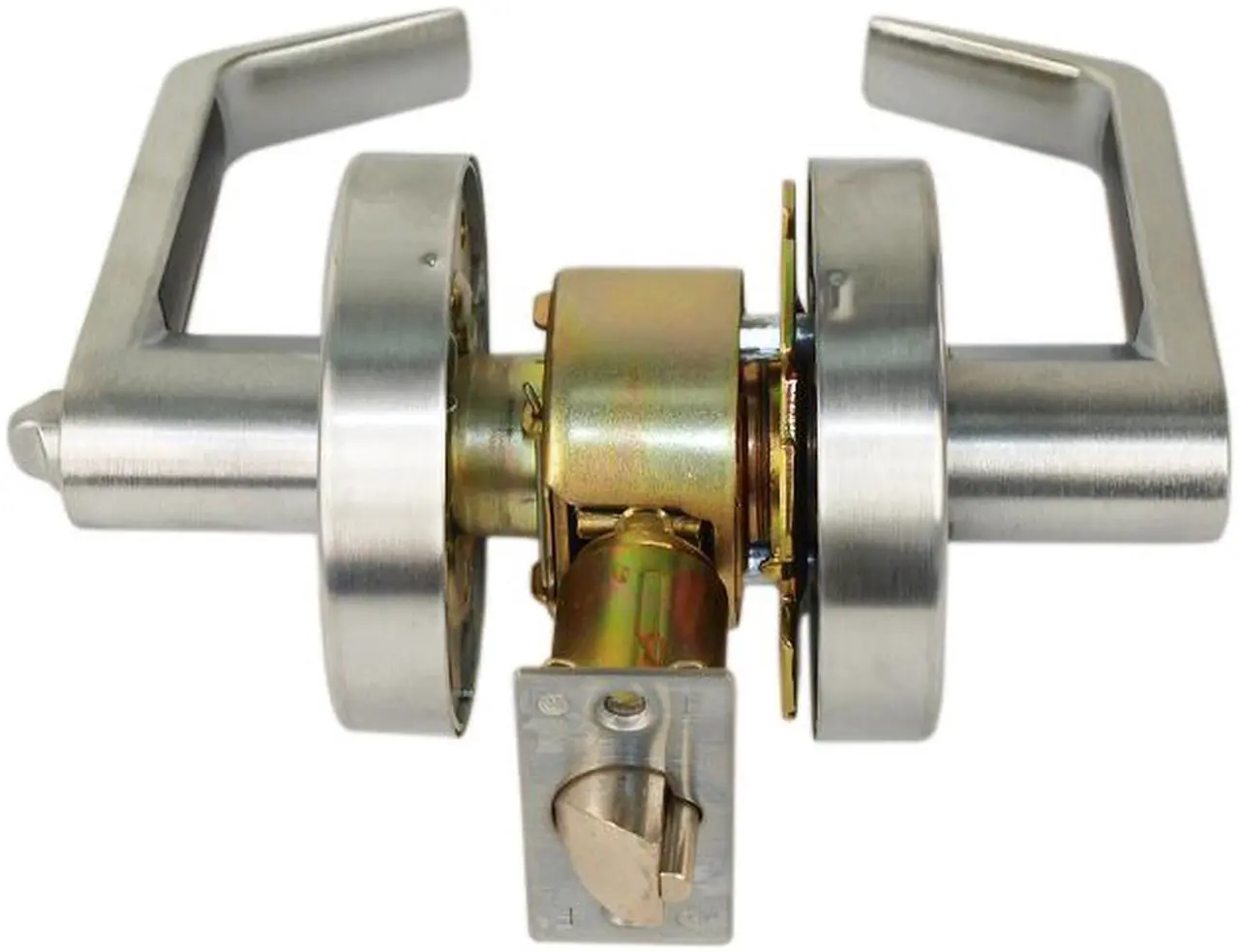

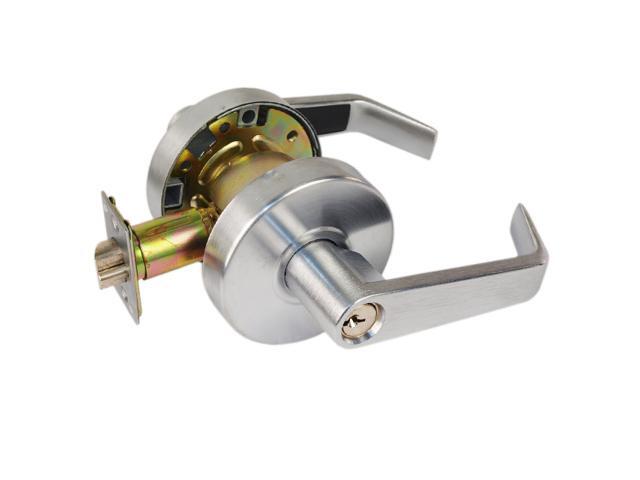

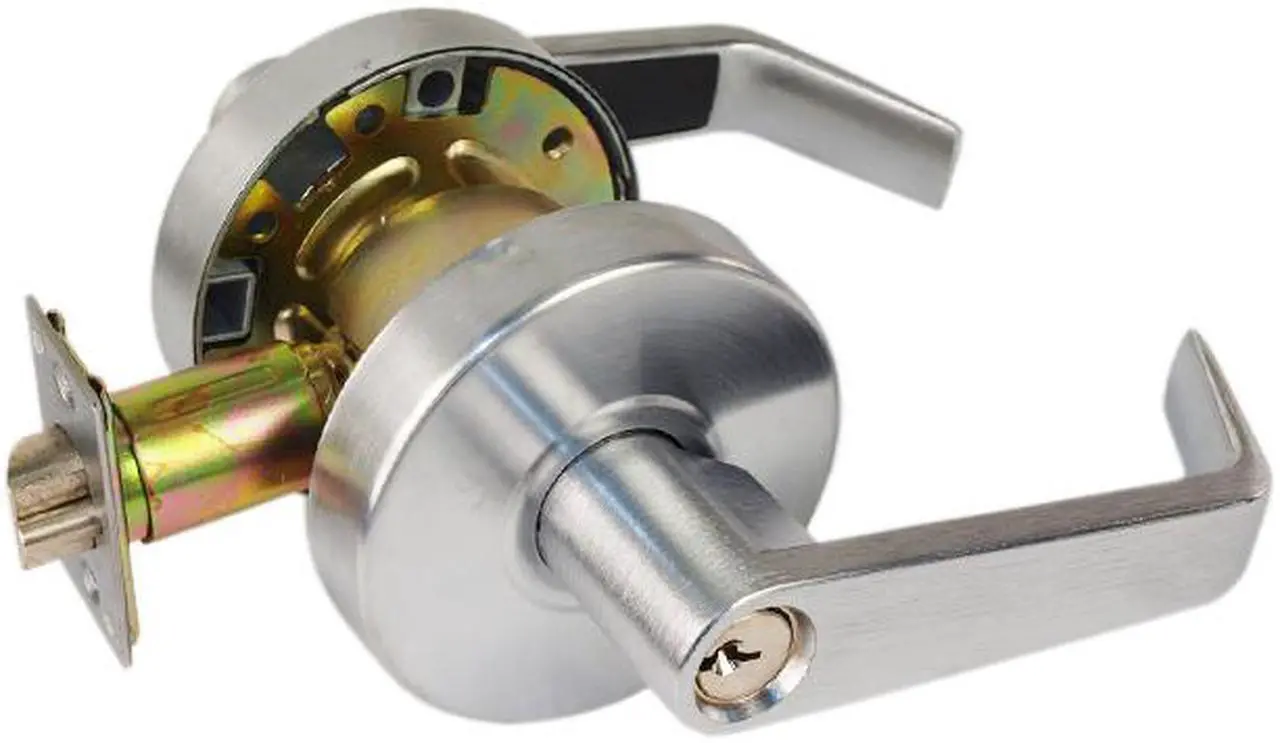

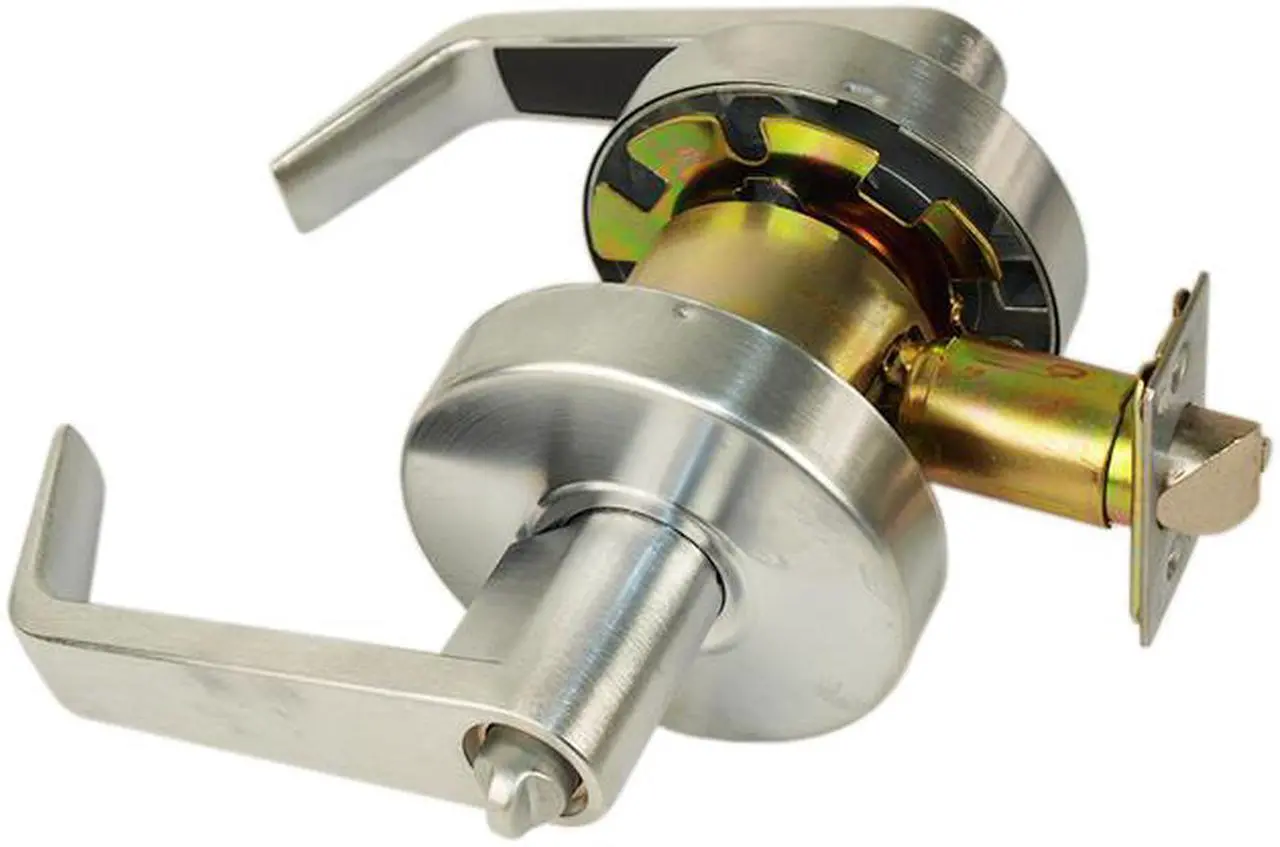

    Em-D-Kay L40026 (Like Trans Atlantic DX-LSV53-R) Satin Chrome US26D Grade 2 Entry Commercial Cylindrical ADA Angled Lever Lockset With 2-3/4" Backset

    • Type: Angled Lever Lockset
    • Finish: Satin Chrome US26D
    • Function: Entry
    • Grading: Grade 2
    • Backset: 2-3/4"
    • Strike: 1-1/4" x 4-7/8"
    • Face Plate: 1-1/8" x 2-1/4"
    • Latch Bolt: 1/2" Latch
    • Certified: UL Listed
    +
    +
    Overview
    Specs
    Reviews
    Em-D-Kay L40026 (Like Trans Atlantic DX-LSV53-R) Satin Chrome US26D Grade 2 Entry Commercial Cylindrical ADA Angled Lever Lockset With 2-3/4" Backset, specially designed with a cushioned lever handle for added comfort. This lever set is corrosion treated, it has a heavy gauge cold roiled mechanism, and it has no outside post construction providing for an easier instillation. This lock features an ANSI 1-1/4" x 4-7/8" strike, a 1-1/8" x 2-1/4" face plate, a 1/2" latchbolt, a 2-3/4" Backset, and it fits doors 1-3/8" to 1-3/4" thick. This lever set is reversible for Right or Left Hand applications. This lever is rekeyable, accepting Schlage, Arrow, Marks, AWI, Lori, Falcon, ASSA, and most Medeco cylinders. The separate spring mechanism for the inside and outside lever, prevents arm sag from hold in horizontal position. This lever provides a barrier free application, and the lever travels up to 50 Degrees. Make sure to have a 2" clearance from lever to door surface, and the return of lever to 3/8" of the face of door. This lever is easy to install, it is suitable for new construction and retrofit. This lever set is UL listed for "A" label (3 hours) single swing doors (4' x 8'), and it has a concealed screw mount.

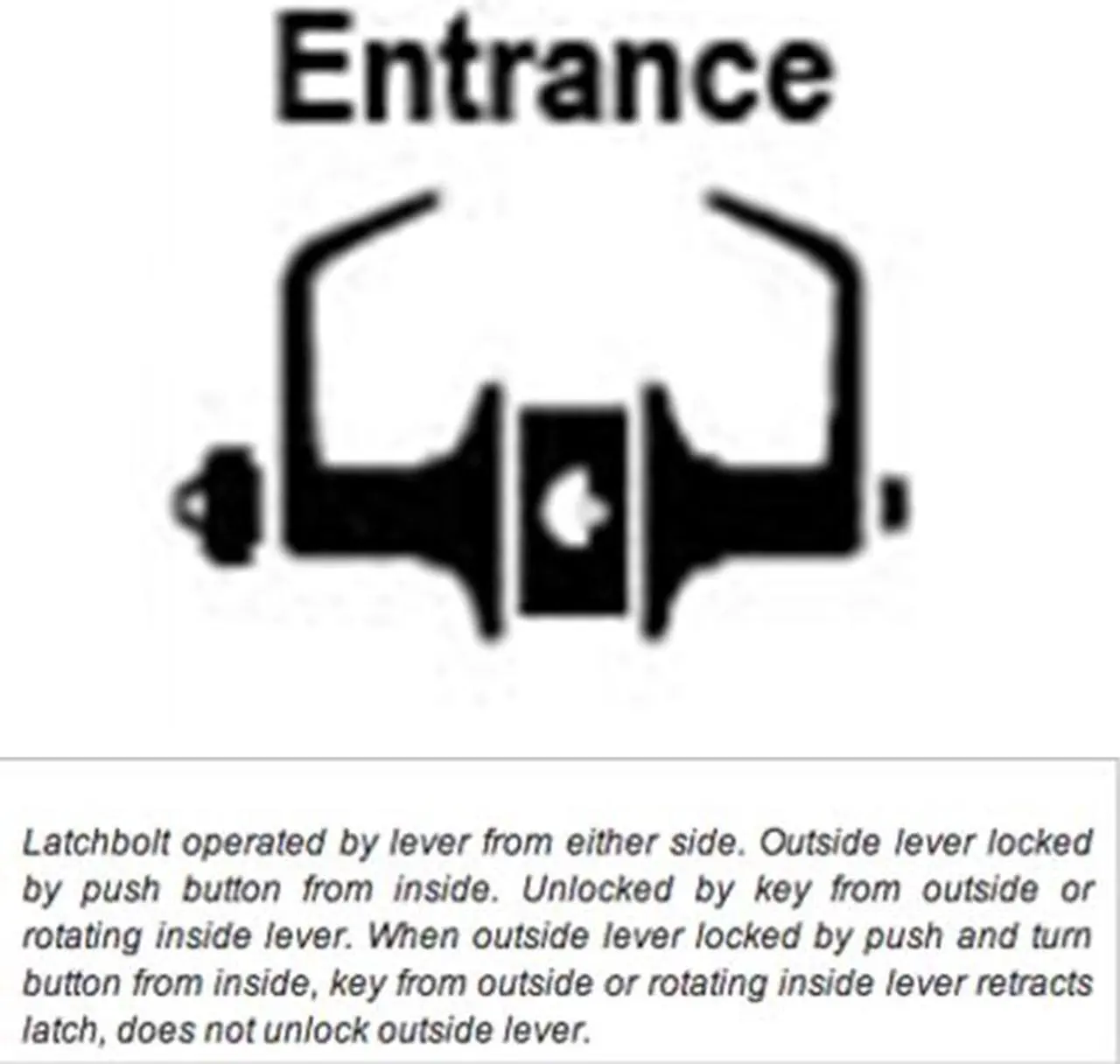

    Entrance: Latchbolt operated by lever from either side. Outside lever locked by push button from inside. Unlocked by key from outside or rotating inside lever. When outside lever locked by push and turn button from inside, key from outside or rotating inside lever retracts latch, does not unlock outside lever.

    Type: Angled Lever Lockset
    Finish: Satin Chrome US26D
    Function: Entry
    Grading: Grade 2
    Backset: 2-3/4"
    Strike: 1-1/4" x 4-7/8"
    Face Plate: 1-1/8" x 2-1/4"
    Latch Bolt: 1/2" Latch
    Certified: UL Listed
    Compatibility: Like Trans Atlantic DX-LSV53-R
    Door Thickness: 1-3/8" to 1-3/4"
