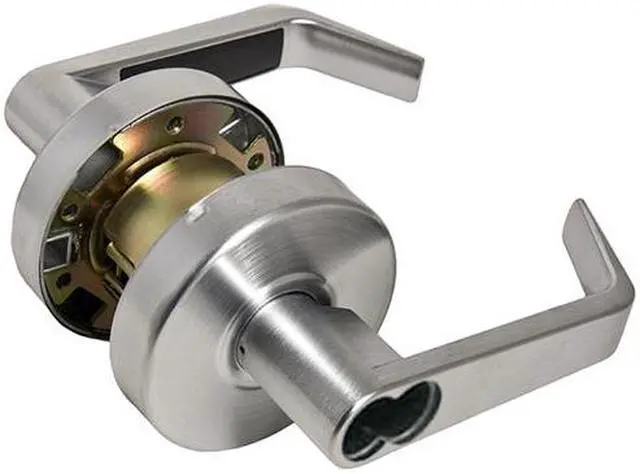

EM-D-KAY L45026IC Satin Chrome US26D Storeroom Interchangeable (IC) Core Grade 2 Commercial Cylindrical ADA Angled Lever Lockset (CORE SOLD SEPARATELY)

EM-D-KAY L45026IC Satin Chrome US26D Storeroom Interchangeable (IC) Core Grade 2 Commercial Cylindrical ADA Angled Lever Lockset (CORE SOLD SEPARATELY), specially designed with a one step rosette, and a rigid outside for a nice clean look. This lockset fits doors 1-3/8" to 1-3/4" thick, and it has a 2-3/4" backset. The case is corrosion treated and it has a heavy gauge cold roiled mechanism. The front is Wrought Brass or Bronze 2-1/4" x 1-1/8", and the standard ASA strike is Wrought Brass or Bronze 4-1/8" x 1-1/4". The latchbolt is made out of Solid Brass with a 1/2" throw, and the handing is reversible for RH or LH applications. The adjustable front is for flat or beveled doors 1-3/8" x 2". This lock features a satin chrome finish, it is a grade 2 commercial angle lever from the 6600 Series. This lock is rekeyable and will accept the following cylinders: Schlage, Arrow, Marks, AWI, Lori, Falcon, ASSA, and most Medeco. There is a separate spring mechanism for the inside and outside lever, preventing arm sag to hold in horizontal position, creating a barrier free application with the 50 degree lever travel. This lever needs a 2" clearance from lever to door surface, and the return of the lever needs a 3/8" clearance from lever to the face of the door. This lockset fits the standard 161 door preparation 2-3/4" backset, 2-1/8" bore, and it is easy to install, suitable for new construction and retrofit. This lock has a concealed screw mount, and a patented free-wheeling design that rotates the lever up and down while the lever set stays locked. The special reinforced removable studs prevent twisting or turning of lock rosettes. This leverset is UL listed for "A" label (3 hours) single swing doors (4' x 8'), and it conforms to handicap code ANSI A156.2.

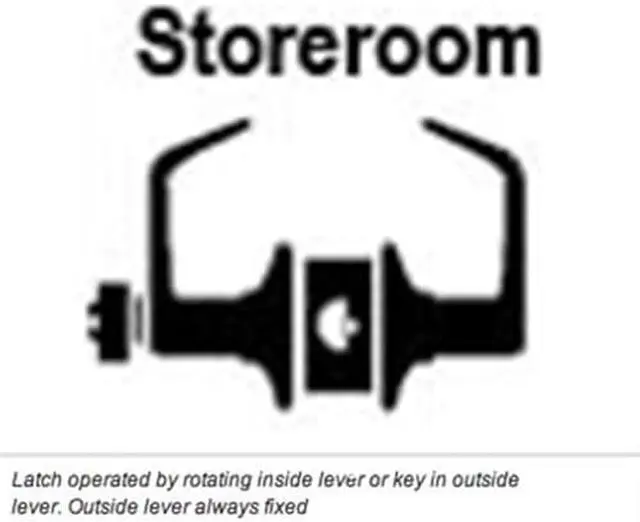

Storeroom: Latch operated by rotating inside lever or key in outside lever. Outside lever always fixed.

• TYPE: Interchangeable Core Cylindrical Angled Lever Lockset (CORE SOLD SEPERATELY)
• Finish: Satin Chrome US26D
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/4"
• Keying: Cylinder Sold Separately
• Function: Storeroom
