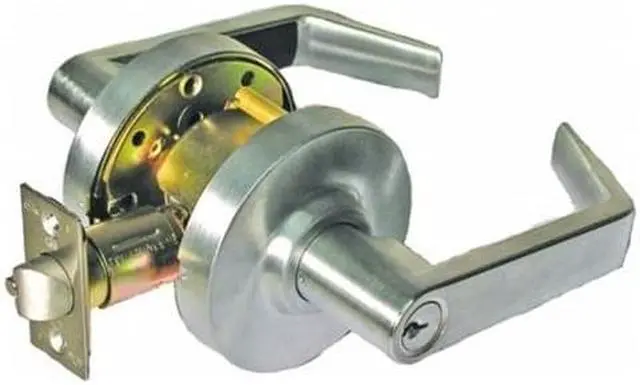

Maxtech, C13011-26D, Satin Chrome US26D, Entry Entrance Grade 2 Commercial Cylindrical ADA Angled Lever Lockset

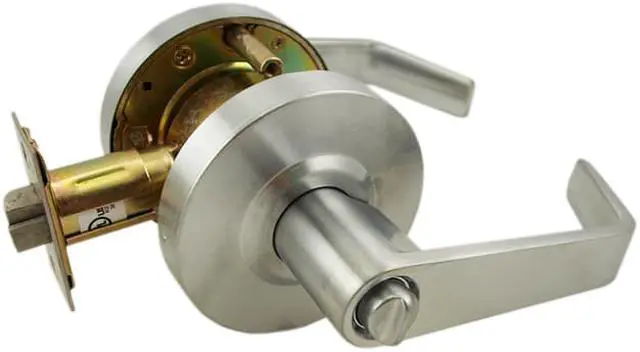

MaxTech, C13011-26D, Satin Chrome US26D, Entry Entrance Grade 2 Commercial Cylindrical ADA Angled Lever Lockset. outside lever rigid. inside lever Button: 1-3/8" to 1-3/4" thick BACKSET: 2-3/4" CASE: Corrosion treated heavy gauge cold roiled mechanism FRONT: Wrought Brass or Bronze 2-1/4" x 1-1/8" STRIKE: Wrought Brass or Bronze 4-1/8" x 1-1/4" standard LATCHBOLT: Solid Brass 1/2" throw, reversible for RH or LH applications, adjustable front for flat or beveled doors 1-3/8" x 2" KEYING: 2 keys per lock FINISH: US26D. Type: Commercial. Style: Angle Lever. Grade: 2. Function: Entry, Keyed Different. Series: 6600. Keyway: SC1. Backset: 2-3/4" square. Strike: ASA. Rekeyable: Will accept the following cylinders: Schlage, Arrow, Marks, AWI, Lori, Falcon, ASSA, and most Medeco. Fits wood or metal doors from 1-3/8" to 1-3/4" thick. Furnished with 1-1/8" strike plate. Separate spring mechanism for inside & outside lever, prevents arm sag to hold in horizontal position. Designed for barrier free application. 50° lever travel. Non-handed. 2" clearance from lever to door surface, return of lever to 3/8" of the face of door. Fits the standard 161 door preparation 2-3/4" backset, 2-1/8" bore. Easy installation, suitable for new construction and retrofit. Special reinforced removable studs prevent twisting or turning of lock rosettes. UL listed for "A" label (3 hours) single swing doors (4' x 8'). Concealed screw mount. One step rosette. Patented free-wheeling design rotates lever up and down while lever set stays locked. Conforms to Handicap Code ANSI A156.2 Series 4000.

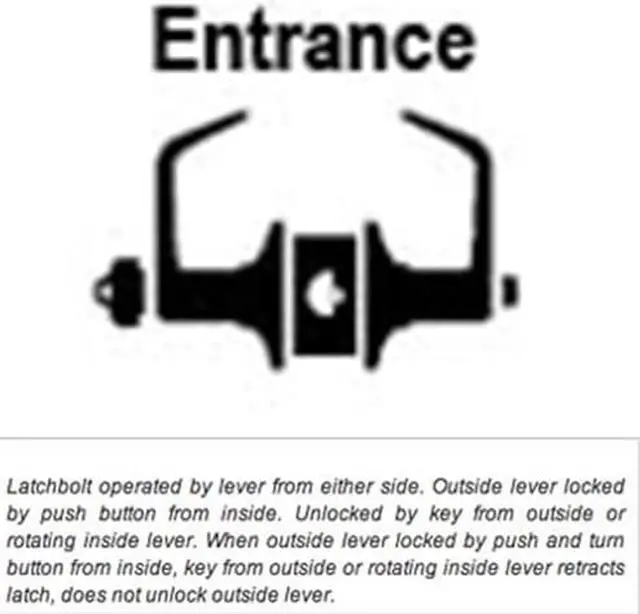

Entrance: Latchbolt operated by lever from either side. Outside lever locked by push button from inside. Unlocked by key from outside or rotating inside lever. When outside lever locked by push and turn button from inside, key from outside or rotating inside lever retracts latch, does not unlock outside lever.
