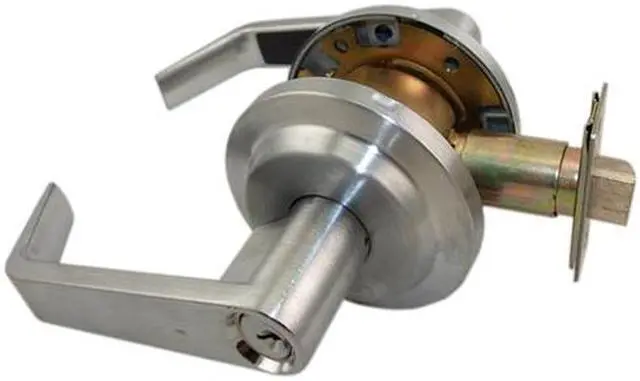

S. Parker SL7160D26D Satin Chrome US26D Always Locked Vestibule Storeroom Grade 2 Commercial Cylindrical ADA Cushioned Angled Lever Lockset With A Two Step Rose
- FINISH: Satin Chrome US26D
- FOR DOORS: 1-3/8" to 1-3/4" thick
- KEYING: 2 keys per lock
- Keyway: SC4
- Function: Always Locked Vestibule Storeroom
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
S. Parker SL7160D26D Satin Chrome US26D Always Locked Vestibule Storeroom Grade 2 Commercial Cylindrical ADA Cushioned Angled Lever Lockset With A Two Step Rose, ideal for retrofitting. This lockset is UL listed, it's an ADA approved Grade 2 barrier-free leverset, and it meets the ANSI A 156.2 Series 4000 Grade standards and it more than fulfills ADA requirements. The ANSI Series 4000 standard exceeds 400, 000 operating cycles. This door lever set features a two step rose with a cold rolled steel housing, and 5" long cushioned handles.
This lever is reversible (non-handed), it fits doors from 1-3/8" to 2" thick, the Backset is 2-3/4", and the ANSI Strike is 1-1/4" x 4-7/8". The cylinder has a 6 pin solid brass SC4 keyway, with 2 keys. The separate lever spring mechanisms help prevent sag. This lock has a 1/2" throw solid brass latch-bolt, and it is UL listed with a three hour fire rating. The screws are concealed for security and appearance. This lever lockset accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs, it has convertible posts, and it has 3-3/8" diameter roses.

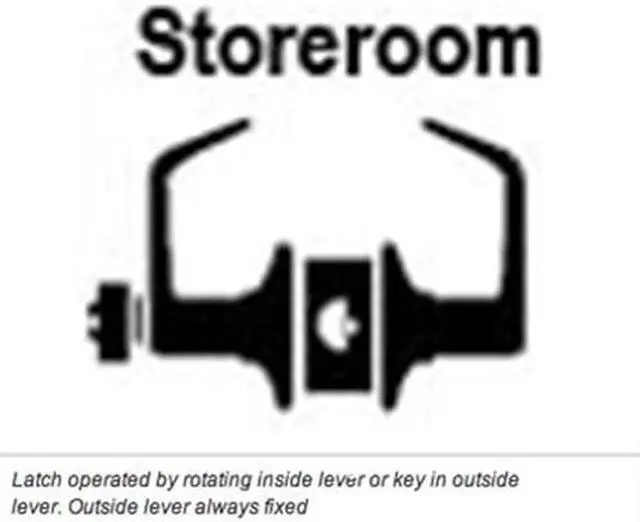

Storeroom: Latch operated by rotating inside lever or key in outside lever. Outside lever always fixed.
This lever is reversible (non-handed), it fits doors from 1-3/8" to 2" thick, the Backset is 2-3/4", and the ANSI Strike is 1-1/4" x 4-7/8". The cylinder has a 6 pin solid brass SC4 keyway, with 2 keys. The separate lever spring mechanisms help prevent sag. This lock has a 1/2" throw solid brass latch-bolt, and it is UL listed with a three hour fire rating. The screws are concealed for security and appearance. This lever lockset accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs, it has convertible posts, and it has 3-3/8" diameter roses.
Storeroom: Latch operated by rotating inside lever or key in outside lever. Outside lever always fixed.
- FINISH: Satin Chrome US26D
- FOR DOORS: 1-3/8" to 1-3/4" thick
- KEYING: 2 keys per lock
- Keyway: SC4
- Function: Always Locked Vestibule Storeroom
