S. Parker SL7160R26D Satin Chrome US26D Classroom, Office Vestibule Grade 2 Commercial Cylindrical ADA Cushioned Angled Lever Lockset With A Two Step Rose

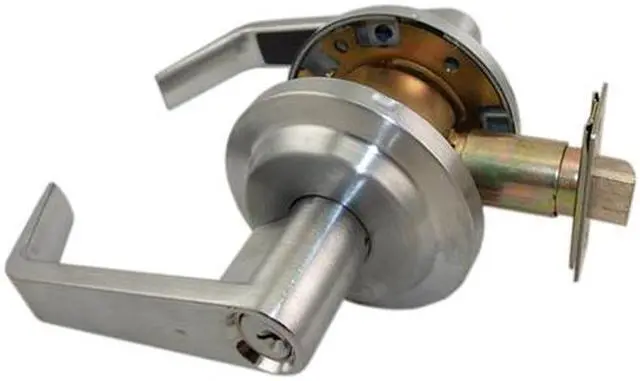

S. Parker SL7160R26D Satin Chrome US26D Classroom, Office Vestibule, Passage Always Open OR Storeroom Always Locked Grade 2 Commercial Cylindrical ADA Cushioned Angled Lever Lockset With A Two Step Rose, ideal for retrofitting. This lockset is UL listed, it's an ADA approved Grade 2 barrier-free leverset, and it meets the ANSI A156.2 Series 4000 Grade standards and it more than fulfills ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles. This door lever set features a two step rose with a cold rolled steel housing, and 5" long cushioned handles. This lever is reversible (non-handed), it fits doors from 1-3/8" to 2" thick, the Backset is 2-3/4", and the ANSI Strike is 1-1/4" x 4-7/8". The cylinder has a 6 pin solid brass SC4 keyway, with 2 keys. The separate lever spring mechanisms help prevent sag. This lock has a 1/2" throw solid brass latch-bolt, and it is UL listed with a three hour fire rating. The screws are concealed for security and appearance. This lever lockset accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs, it has convertible posts, and it has 3-3/8" diameter roses.

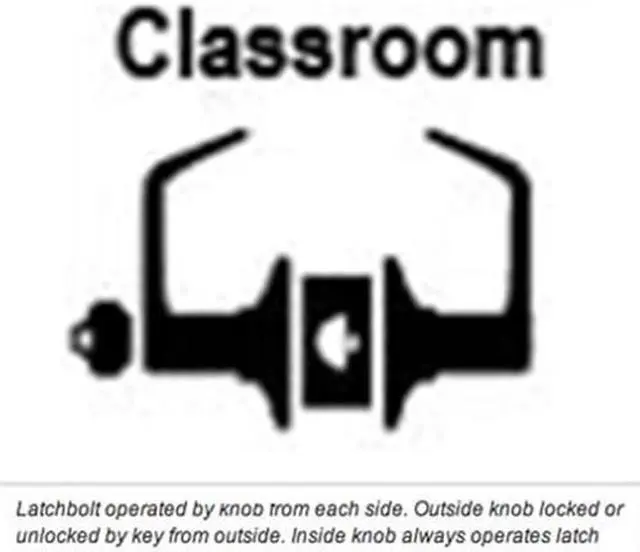

Classroom: Latchbolt operated by knob from either side. Outside knob locked or unlocked by key from outside. Inside knob always operates latch.

• FINISH: Satin Chrome US26D
• FOR DOORS: 1-3/8" to 1-3/4" thick
• KEYING: 2 keys per lock
• Keyway: SC4
• Function: Classroom, Office Vestibule, Passage Always Open OR Storeroom Always Locked
