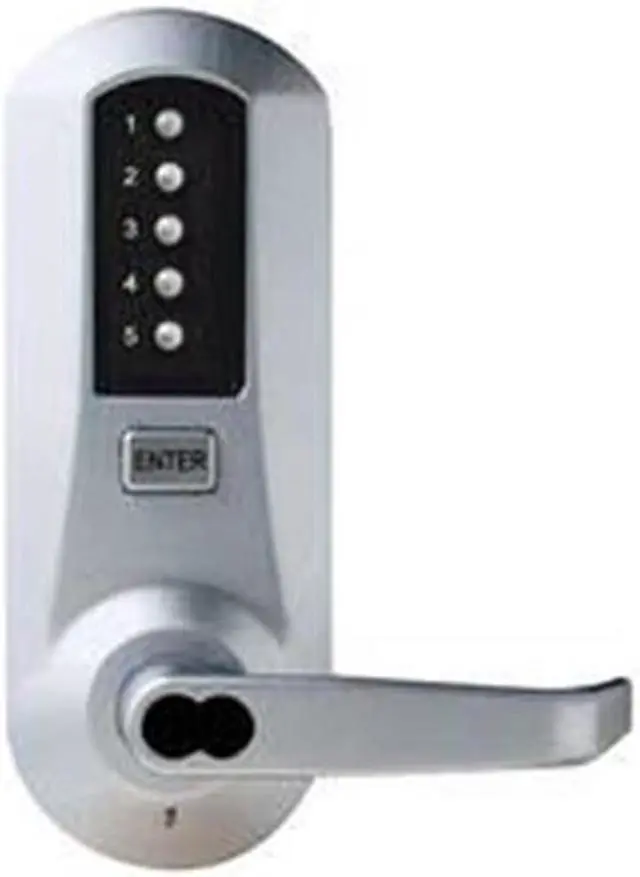

Simplex 5021BWL-26D Satin Chrome US26D Mechanical Pushbutton Lock With Key Override For Best SFIC Cores (Core Sold Separately)

Simplex 5021BWL-26D Satin Chrome US26D Mechanical Pushbutton Lock With Key Override For Best SFIC Cores, specially designed to provide exterior access by combination, while allowing free egress. The mechanical lock eliminates the material labor expense of battery replacements, and it has a single access code whic is programmed via the keypad without removing the lock from the door. The lock does not require any wiring to or through the door, and it has a key override Small Format Interchangeable Core for Best and equivalent (6 or 7 pin length) cores. This mechanical device features a cylindrical latch, a 1/2" latch with floating faceplate, and it has a 3-hour UL/ULC fire rating for "A" label doors. This lock also has ADA-approved levers, and it's ANSI/BHMA A156.2 Grade 1 Certified. This heavy duty commercial lock has a 2-3/4" backset, it fits doors 1-3/8" to 2-1/4" thick. This lock is constructed of an extra heavy duty solid cast housing, with solid cast levers, that were wear was tested for extensive use in indoor and outdoor applications.

• Type: Mechanical Pushbutton Lock
• Finish: Satin Chrome US26D (626)
• Key Override: SFIC For Best and equivalent (6 or 7 pin length) cores
• Accessibility Standard: ADA compliant
• Durability: ANSI/BHMA Grade 1 Certified (A156.2, 156.13)
• Cylindrical 1/2" Throw Latch, floating face plate
• Backset: 2-3/4" (70mm)
• Fits Doors: 1-3/8" (35mm) to 2-1/4" (57mm) Thick
• Core Sold Separately
