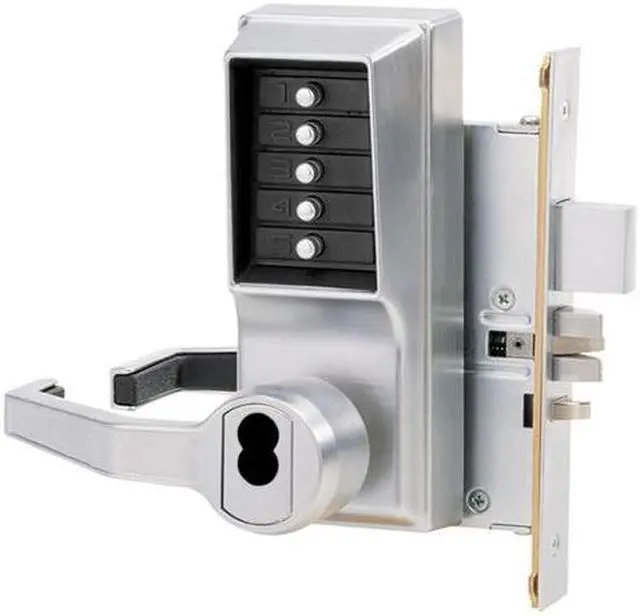

Simplex 8148B-LH-26D Satin Chrome US26D Heavy Duty Mechanical Pushbutton Mortise Left Hand Lever Lock With Key Overide For SFIC Best And Equivalent Cores (Core Sold Separately)

Simplex 8148B-LH-26D Satin Chrome US26D Heavy Duty Mechanical Pushbutton Mortise Left Hand Lever Lock With Key Overide For SFIC (Small Format Interchangable Core) Best And Equivalent (6 or 7 pin) Cores, specially designed to provide exterior access by combination, while allowing free egress. The numeric keypad is vandal resistant, and it has solid metal pushbuttons for extra security. This mechanical lock with lever option eliminates material and labor expense of battery replacements, and it has a single access code which is programmed via the keypad without removing the lock from the door. This lock has a 2-3/4" backset, a 3/4" inch two piece anti-friction latch, a 1" inch optional deadbolt, and a 4-7/8" x 1-1/4" x 1/4" deadbolt latch mortise strike plate. This lock fits wood or metal doors, with standard (86) mortise preparation, 1-3/4" to 2-1/4" thick. This locking has a 3-hour UL/ULC fire rating on "A" labeled doors. This lock is constructed of cast front housing, a unified trim plate, and a fixed ADA complient lever.

• Type: Mechanical Pushbutton Mortise Lever Lock
• Finish: Satin Chrome US26D
• Left Hand
• For SFIC (Small Format Interchangable Core) Best And Equivalent (6 or 7 pin) Cores
• Backset: 2-3/4" (70mm)
• Fits Doors: 1-3/4" (44mm) to 2-1/4" (57mm) Thick
• Two Piece Anti-Friction Latch Length: 3/4" (19mm)
• Deadbolt: 1" (25mm)
• Mortise Strike Plate (LxWxD): 4-7/8" (124mm) x 1-1/4" (32mm) x 1/4" (6mm)
• Ul Listed: 3-hour UL/ULC fire rating on "A" labeled doors
