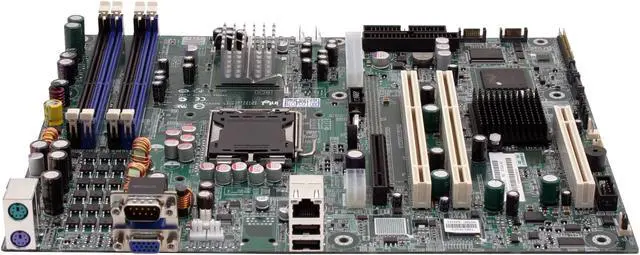

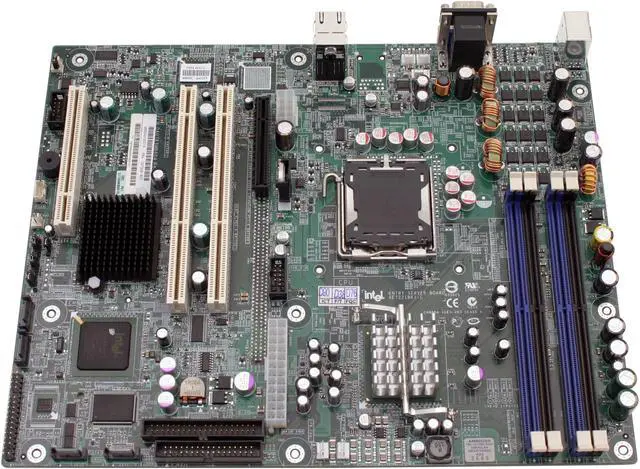

Intel SE7221BK1-E ATX Intel Motherboard LGA 775 Intel E7221 DDR2 533
- LGA 775
- Intel E7221
- 4 x 240Pin
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel SE7221BK1-E
| Brand | Intel |
|---|---|
| Model | SE7221BK1-E |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Pentium 4 (Prescott Ready) |
| System Bus | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| North Bridge | Intel E7221 |
|---|
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 533 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | None |
|---|---|
| PCI Express x8 | 1 x PCI Express x8 |
| PCI-X Slots (64-bit 100MHz) | 2 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 1.5Gb/s |
| SATA RAID | 0/1/10 |
| LAN Chipset | Intel 82541PI |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | one internal USB header for one additional USB port |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

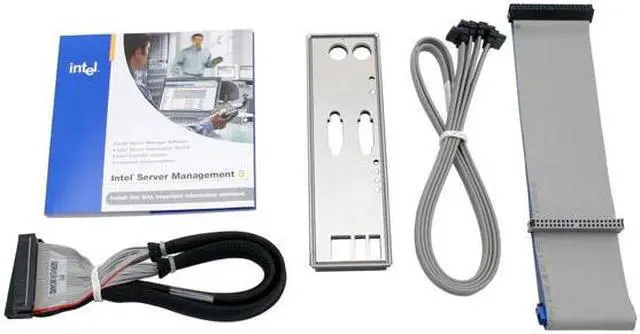

| Package Contents | SE7221BK1-E IDE Cable FDD Cable 2 x SATA Cable Rear I/O Panel Shield Driver Disk |
|---|
| First Listed on Newegg | March 17, 2005 |
|---|
