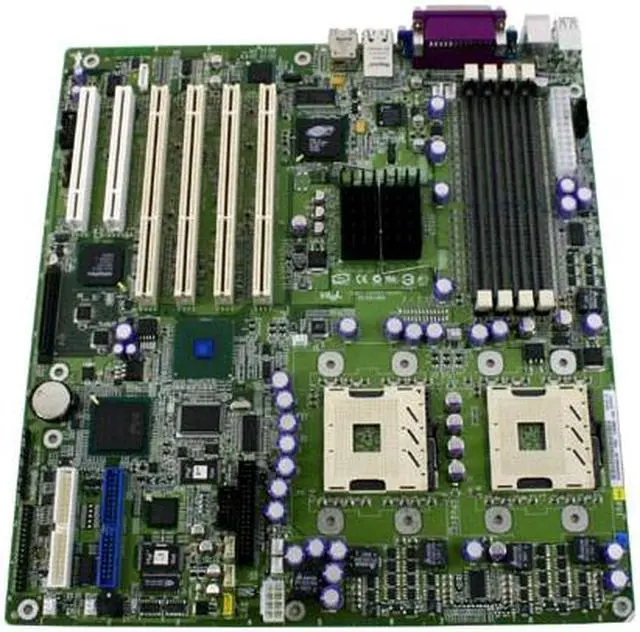

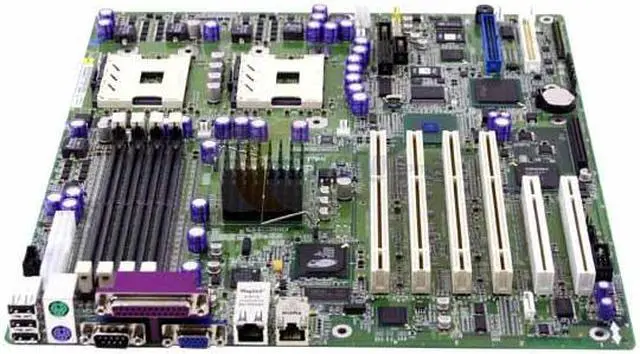

Intel SE7501BR2 SSI EEB 3.0 Server Motherboard Dual 603/604 Intel E7501
- Dual 603/604
- Intel E7501
- 4 x 184Pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel SE7501BR2
| Brand | Intel |
|---|---|
| Model | SE7501BR2 |
| CPU Socket Type | Dual 603/604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 533/400 MHz |
| North Bridge | Intel E7501 |
|---|---|
| South Bridge | Intel ICH3-S |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 266 (PC 2100) |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI-X Slots (64-bit 100MHz) | 4 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|---|
| SCSI | Single-Chnl Ultra320 |
| SCSI Type | 68PIN |
| SCSI Chipset | Adaptec AIC-7901 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Intel 82550PM |
|---|---|
| LAN Speed | 10/100Mbps |
| Second LAN Chipset | Intel 82540EM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 3 x USB 1.1 |
| Onboard USB | 2 x USB 1.1 |
|---|
| Features | Plug and Play, IDE drive autoconfigure, SMBIOS 2.3, ECC/Parity support, multilingual support |
|---|
| Form Factor | SSI EEB 3.0 |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| First Listed on Newegg | June 17, 2004 |
|---|
