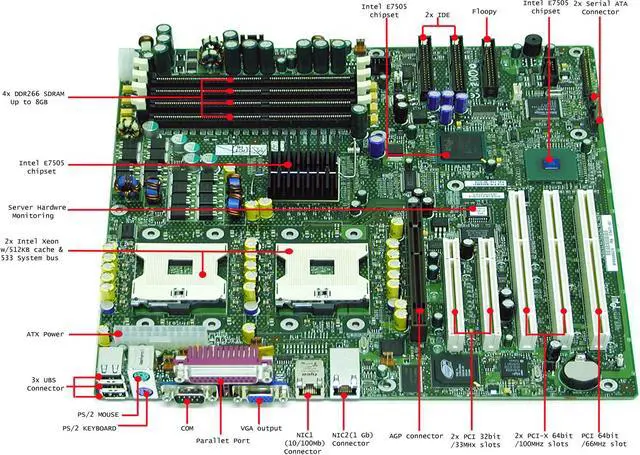

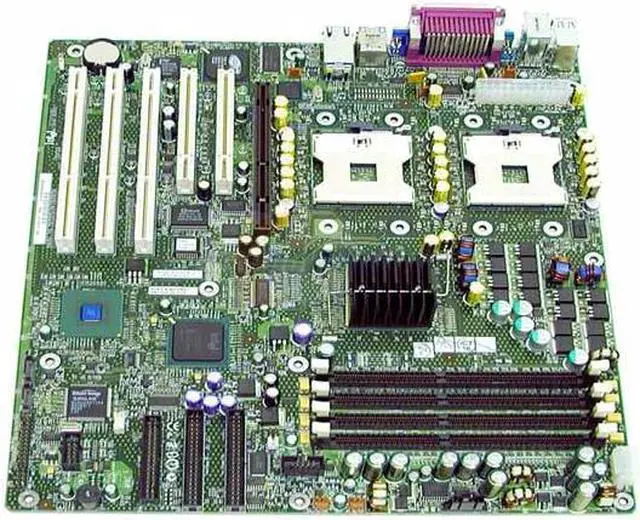

Intel SE7505VB2 SSI EEB 3.0 Server Motherboard Dual 603/604 Intel E7505
OPEN BOX Product Type
- Dual 603/604
- Intel E7505
- 4 x 184Pin
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel SE7505VB2
| Brand | Intel |
|---|---|
| Model | SE7505VB2 |
| CPU Socket Type | Dual 603/604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| North Bridge | Intel E7505 |
|---|---|
| South Bridge | Intel ICH4 |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 266 (PC 2100) |
| Maximum Memory Supported | 8GB |
| ECC Supported | Yes |
| Registered | Yes |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Slots | 2 x PCI Slots |
| SATA | 2 x SATA 1.5Gb/s |
|---|---|
| SATA RAID | 0/1 |
| Additional RAID Controller | Sil 3112 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Intel 82540EM |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82550PM |
| Second LAN Speed | 10/100Mbps |
| Max LAN Speed | 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 3 x USB 2.0 |
| Onboard USB | 1 x USB 2.0 |
|---|
| Features | - Support for Intel® x4 Single Device Data Correction3 - Continuous health monitoring, textconsole redirection, and error logs - LANDesk* Client Manager–based management solution including integrated in-band management, event alerting, and more |
|---|
| Form Factor | SSI EEB 3.0 |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| First Listed on Newegg | January 01, 1900 |
|---|
