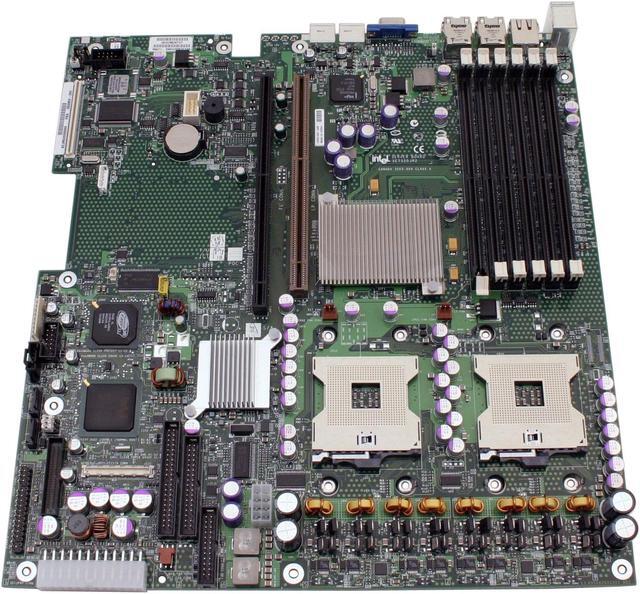

Intel SE7520JR2ATAD2 SSI Thin E-Bay Server Motherboard Dual 603/604 Intel E7520 DDR2 400

Be the first to review this product...
  • Dual 603/604
  • Intel E7520 National Semiconductor PC87427
  • 6 x 184Pin
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel SE7520JR2ATAD2

Model
Brand Intel
Model SE7520JR2ATAD2
Supported CPU
CPU Socket Type Dual 603/604
CPU Type Dua l / Single Intel Xeon
System Bus 800/533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
North Bridge Intel E7520
Other Chipset National Semiconductor PC87427
Memory
Number of DDR Slots 6 x 184Pin
DDR Standard DDR 333 (PC 2700)
DDR2 Standard DDR2 400
Channel Supported Dual Channel
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express x8 2 x PCI Express x8
Other Slots Four independent PCI buses, adapter slots on risers
1U system Option 1: two PCI-X 100MHz
Option 2: one PCI Express x8 and one PCI-X 100MHz
2U system Option 1: six PCI-X 66/100MHz
Option 2: two PCI-X 133MHz (active) and four PCI-X 66/100MHz
Option 3: two PCI Express x4 and four PCI-X 66/100MHz
Storage Devices
PATA 2 x ATA 100 4 Dev. Max
SATA 2 x SATA 1.5Gb/s
SATA RAID 0/1
Onboard Video
Onboard Video Chipset ATI RAGE XL
Onboard LAN
LAN Chipset Intel 82546GB
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82546GB
Second LAN Speed 10/100/1000Mbps
Third LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
Video Ports 1
USB 1.1/2.0 2 x USB 2.0
Onboard Ports
Onboard USB 2 x USB 2.0
Features
Features Post-code diagnostic LEDs
System-ID LED
Optional external SCSI connector
System status LED
Dimensions
Form Factor SSI Thin E-Bay
Dimensions (W x L) 12" x 13"
Additional Information
Date First Available March 17, 2005
