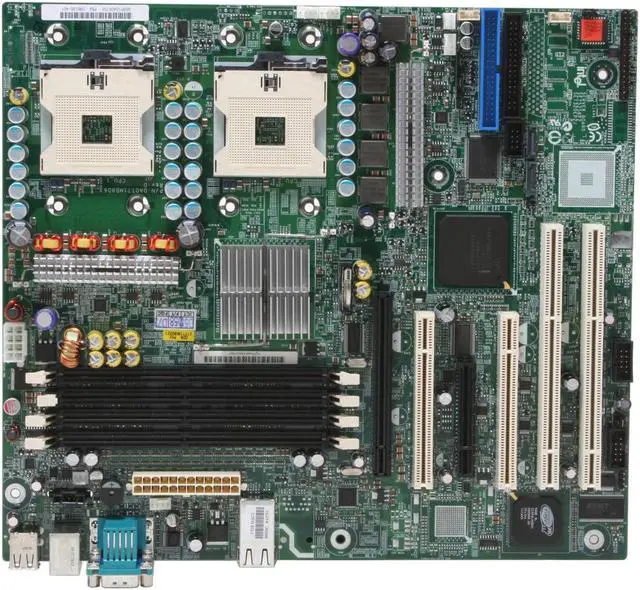

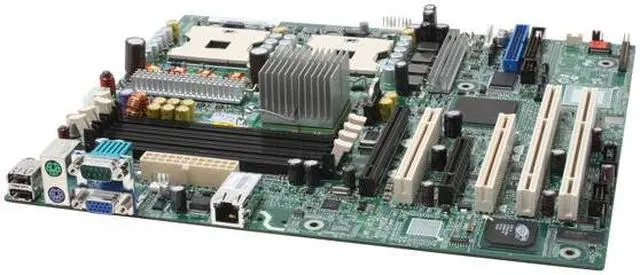

Intel SE7525RP2 ATX Server Motherboard Dual 603/604 Intel E7525 DDR2 400
- Dual 603/604
- Intel E7525
- 4 x 240Pin
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel SE7525RP2
| Brand | Intel |
|---|---|
| Model | SE7525RP2 |
| CPU Socket Type | Dual 603/604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 800 MHz |
| North Bridge | Intel E7525 |
|---|
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 400 |
| Maximum Memory Supported | 8GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI-X Slots (64-bit 66MHz) | 2 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
|---|
| LAN Chipset | Intel PRO/1000 Server Network |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 10.6" |

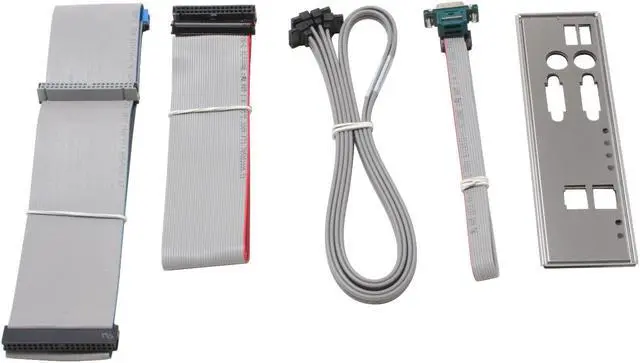

| Package Contents | SE7525RP2 IDE Cable FDD Cable 2 x SATA Cable COM Port Bracket Rear I/O Panel Shield 2 x Software Disk |
|---|
| First Listed on Newegg | December 16, 2005 |
|---|
